Spelsberg 86228301 Junction box (L x W x H) 115 x 93 x 115 mm Orange IP66 1 pc(s)

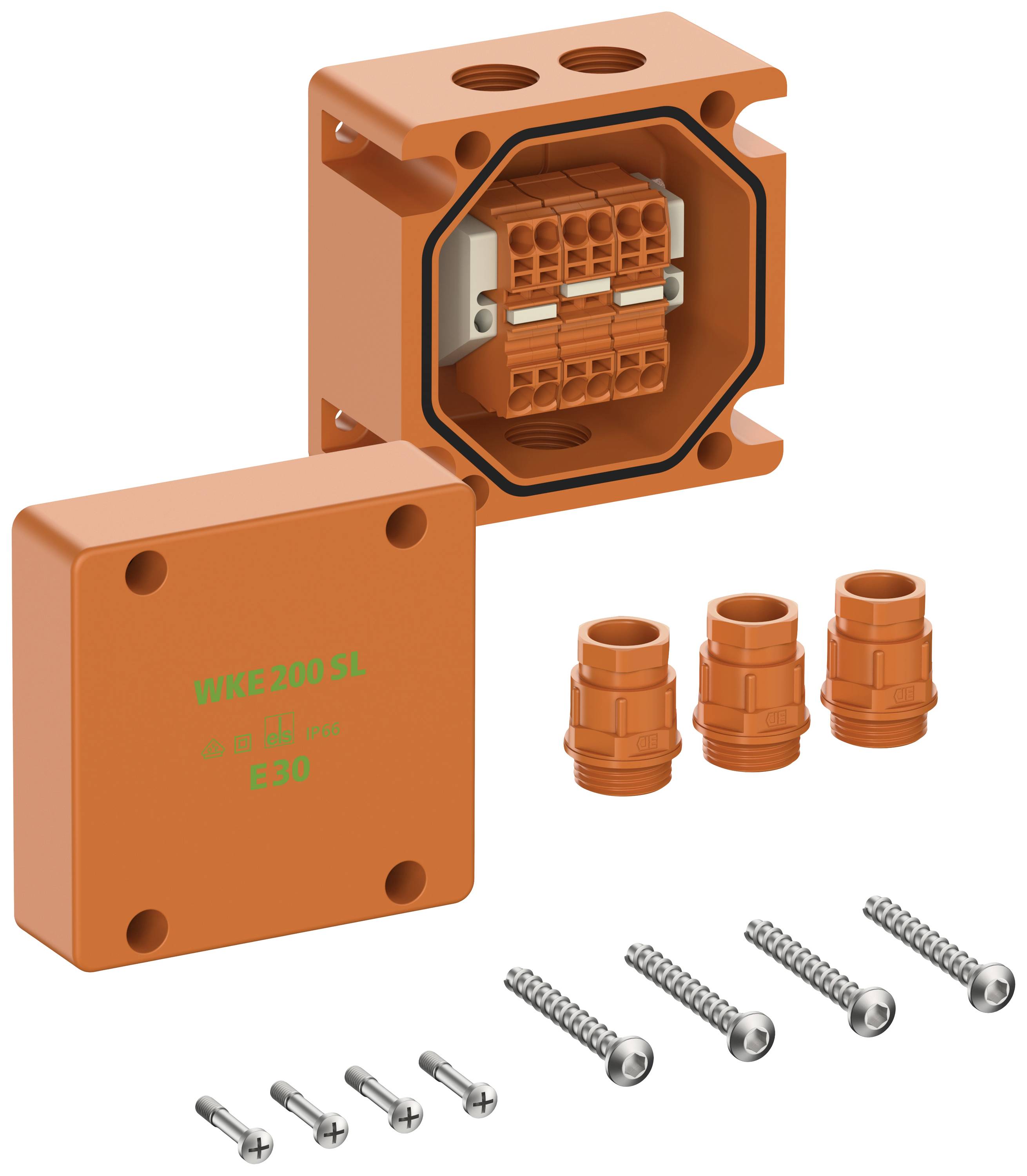

Orange electrical junction box set with cover, cable glands and screws, suitable for specific application requirements.
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 17 Nov
110 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 139.99 / piece)
€ 139.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type: Wall/ceiling mountingRated insulation voltage UI: 450 V.Max. Conductor cross-section: 4 mm²Operating temperature -25 °C - +40 °CNumber of introductions: 3Weather-resistant: Yes
Product type

Junction box

Factory colour

Orange

IP66

Dim

(L x W x H) 115 x 93 x 115 mm

Features

Halogen-free

Content

1 pc(s)

Material

Duroplast

Polyurethane

Width

93 mm

Height

115 mm

Length

115 mm

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2568809 Spelsberg 86228301 Junction box (L x W x H) 115 x 93 x 115 mm Orange IP66 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2568809 Spelsberg 86228301 Junction box (L x W x H) 115 x 93 x 115 mm Orange IP66 1 pc(s)

Description

Cable junction box, with protection class IP66, UI=450V AC, certified according to VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), internal thread, M32, (3 lateral), external mounting points, With electrical functional maintenance E30 according to DIN 4102 Part 12, with screw-less terminal blocks WAGO top jobs, housing made of halogen-free special duroplast, orange, connection box 5-pin, terminal capacity per pole 2 x 0.5-6 qmm

This text is machine translated.

Scope of delivery

  • 2 cable glands M32, sealing range 17 - 26 mm, dowel set ø 6 mm
