StandexMeder Electronics KSK-1A80-2030 Reed switch 1 maker 170 V DC, 170 V AC 0.5 A 10 W Envelope length:7 mm
EAN:
Part number:
Item no:
Product type
Reed switch
Contact type
1 maker
Switching voltage (max.)
170 V DC
170 V AC
Switching current (max.)
0.5 A
Connection
Solder pins
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
10
7% = € 0.14
€ 1.78
25
10% = € 0.20
€ 1.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
14-day return policy included
Highlights & Details
Reed switch
- Glass Piston long 7 mm
- This text is machine translated.
Technical specifications
- Product type
Reed switch
- Type
KSK-1A80-2030
- Water activity (max.)
30
- Water activity (min.)
20
- Contact type
1 maker
- Contact material
Rh (Rhodium)
- Switching voltage (max.)
170 V DC
170 V AC
- Switching current (max.)
0.5 A
- Max. switching capacity
10 W
- Connection
Solder pins

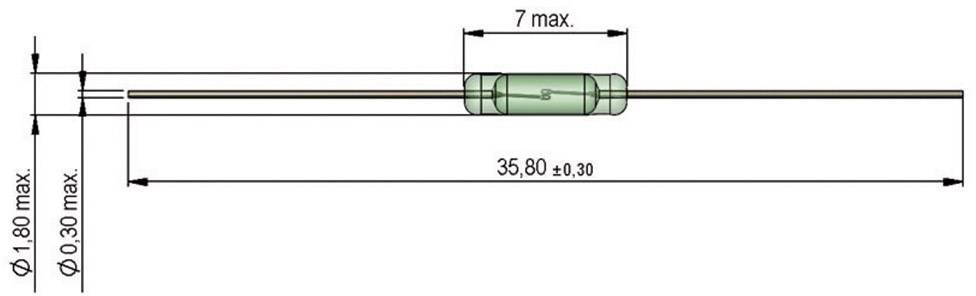

- Envelope length
7 mm
- Max. temperature
+130 °C
- Min. temperature
-20 °C
- Length
35.6 mm
- (Ø)
1.8 mm
- Dim
(Ø x L) 1.8 mm x 35.6 mm
- Water activity
20 - 30
Documents & Downloads
Datasheet
Datasheet 1205864 StandexMeder Electronics KSK-1A80-2030 Reed switch 1 maker 170 V DC, 170 V AC 0.5 A 10 W Envelope length:7 mm
User & Safety Instructions
User & Safety Instructions 1205864 StandexMeder Electronics KSK-1A80-2030 Reed switch 1 maker 170 V DC, 170 V AC 0.5 A 10 W Envelope length:7 mm
