PIC MS-225-3 Miniature Reed Sensor N/A 0.7 A 10 W
Product type
Reed switch
Contact type
1 maker
Switching voltage (max.)
180 V DC
130 V AC
Switching current (max.)
0.7 A
Connection
Open end cable
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 5.49 / piece)
€ 5.49
incl. VAT
14-day return policy included
Highlights & Details
PIC MS-225-3 Miniature Reed Sensor N/A 0.7 A 10 W
Our service for you
Technical specifications
- Product type
Reed switch
- Type
MS-225-3
- Water activity (max.)
15
- Water activity (min.)
10
- Contact type
1 maker
- Switching voltage (max.)
180 V DC
130 V AC
- Switching current (max.)
0.7 A
- Max. switching capacity
10 W
- Connection
Open end cable
- Cable length
0.50 m
- Enclosure material
Brass
- Material properties
nickel plated
- Max. temperature
+85 °C
- Min. temperature
-20 °C
- Length
24.9 mm
- (Ø)
4.7 mm
- Dim
(Ø x L) 4.7 mm x 24.9 mm
- RoHS-compliant
Yes
- Water activity
10 - 15
- Switching capacity
10 W
- Switching current
0.7 A
- Type
MS-225-3
- Connection
Cable 500 mm
Documents & Downloads
Datasheet
Datasheet 503557 PIC MS-225-3 Miniature Reed Sensor N/A 0.7 A 10 W
User & Safety Instructions
User & Safety Instructions 503557 PIC MS-225-3 Miniature Reed Sensor N/A 0.7 A 10 W
Information
Information 503557 PIC MS-225-3 Miniature Reed Sensor N/A 0.7 A 10 W
Description

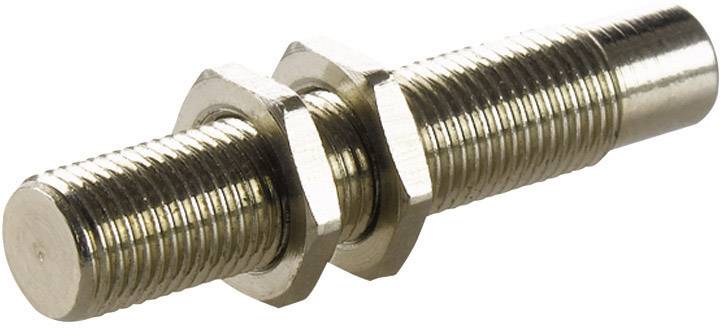

Compact reed sensor, metallic housing with M5-fine thread.
Scope of delivery
- 2 fixing nuts.
