PIC PMC-2003 Reed switch 1 maker 180 V DC, 130 V AC 1 A 10 W
EAN:
Part number:
Item no:
Product type
Reed switch
Contact type
1 maker
Switching voltage (max.)
180 V DC
130 V AC
Switching current (max.)
1 A
Connection
Solder pins
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 1.25
9
8% = € 0.10
€ 1.15
15
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 1.25 / piece)
€ 3.75
plus VAT.
Highlights & Details
PIC PMC-2003 Reed switch 1 maker 180 V DC, 130 V AC 1 A 10 W
Our service for you
Technical specifications
- Product type
Reed switch
- Type
PMC-2003
- Water activity (max.)
40
- Water activity (min.)
30
- Contact type
1 maker
- Contact material
Ruthenium
- Switching voltage (max.)
180 V DC
130 V AC
- Switching current (max.)
1 A
- Max. switching capacity
10 W
- Connection
Solder pins
- Enclosure material
Glass
- Max. temperature
+125 °C
- Min. temperature
-40 °C

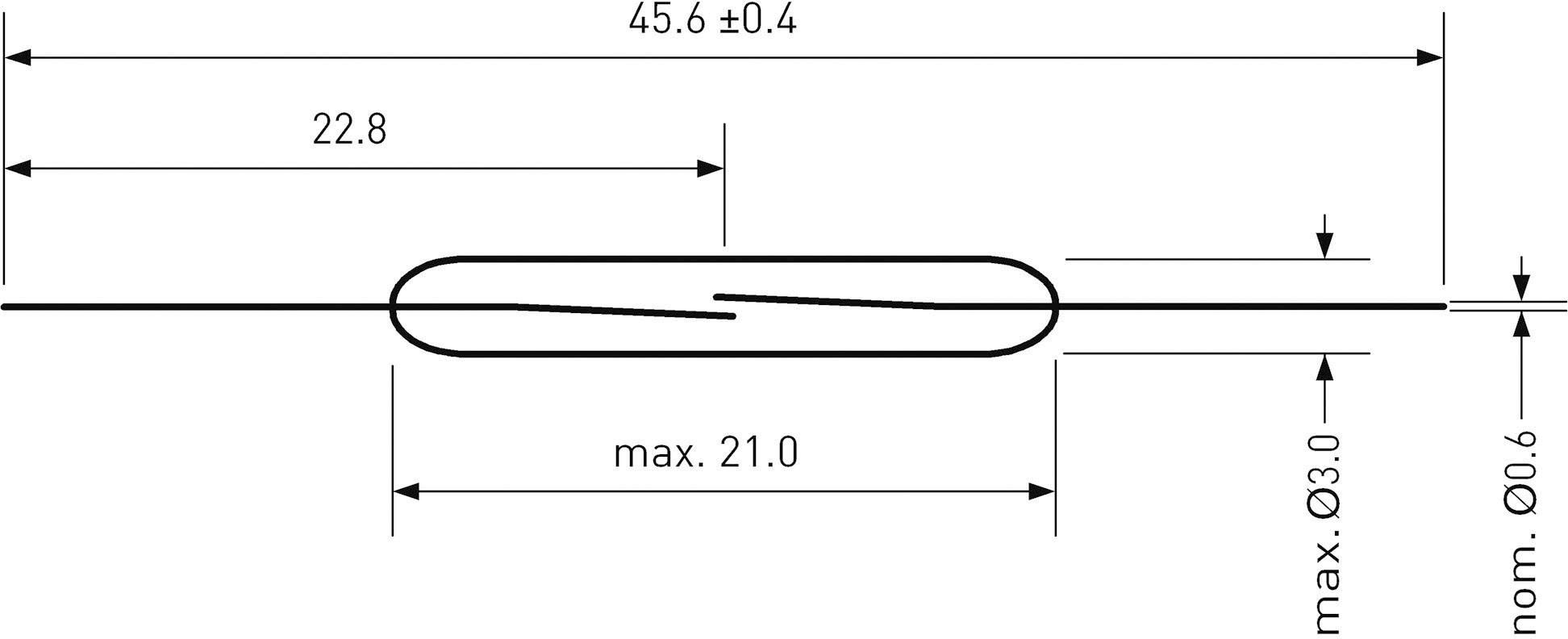

- Dim. (add. text)
Casing
- Length
21 mm
- (Ø)
3 mm
- Dim
(Ø x L) 3 mm x 21 mm (Casing)
- RoHS-compliant
Yes
- Water activity
30 - 40
Documents & Downloads
Datasheet
Datasheet 506928 PIC PMC-2003 Reed switch 1 maker 180 V DC, 130 V AC 1 A 10 W
User & Safety Instructions
User & Safety Instructions 506928 PIC PMC-2003 Reed switch 1 maker 180 V DC, 130 V AC 1 A 10 W
Information
Information 506928 PIC PMC-2003 Reed switch 1 maker 180 V DC, 130 V AC 1 A 10 W
Description
Economical standard reed switch with high durability and reliability.
