Hamlin FLEX-14 Subminiature-Reed-SWITCH N/A 0.5 A 10 W
Product type
Reed switch
Contact type
1 maker
Switching voltage (max.)
200 V DC
Switching current (max.)
0.5 A
Connection
Solder pins
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 2
Total (€ 1.99 / piece)
€ 3.98
incl. VAT
14-day return policy included
Highlights & Details
Hamlin FLEX-14 Subminiature-Reed-SWITCH N/A 0.5 A 10 W
- Glass Piston long 14 mm
Technical specifications
- Closing time : 0.55 ms
- Opening time :0.2 ms
- Product type
Reed switch
- Type
FLEX-14
- Contact type
1 maker
- Switching voltage (max.)
200 V DC
- Switching current (max.)
0.5 A
- Max. switching capacity
10 W
- Connection
Solder pins
- Enclosure material
Glass
- Envelope length
14 mm
- Length
14 mm
- (Ø)
2.28 mm
- Dim

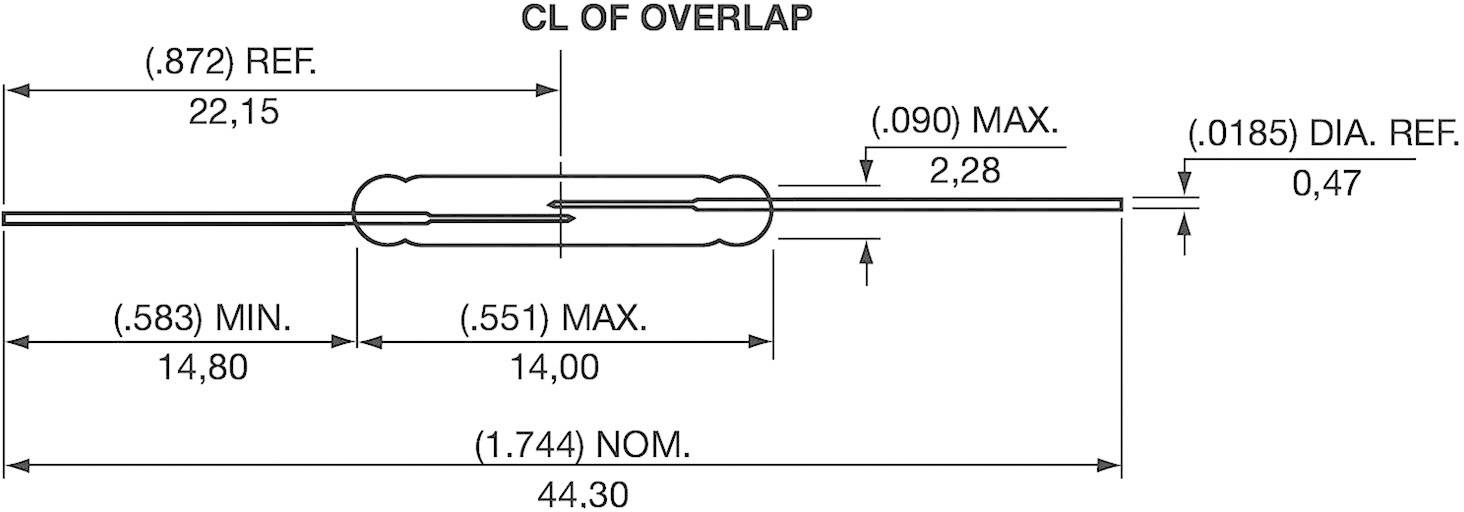

(Ø x L) 2.28 mm x 14 mm
- Switching capacity
10 W
- Switching current
0.5 A
- Type
FLEX-14
Documents & Downloads
Datasheet
Datasheet 503638 Hamlin FLEX-14 Subminiature-Reed-SWITCH N/A 0.5 A 10 W
User & Safety Instructions
User & Safety Instructions 503638 Hamlin FLEX-14 Subminiature-Reed-SWITCH N/A 0.5 A 10 W
Description
These Reed -Switch distinguish oneself through flexible Connecting wire These is simple Form and very gut to work out
