Name: Steinel L20 S 566814 Outdoor wall light (+ motion detector) Energy-saving bulb, LED (monochrome) E-27 60 W Silver
Brand: Steinel
SKU: 572315
Availability: InStock

Blank white square switch cover on a light gray wall, with a curved toggle or sensor protruding at the bottom center.

Modern wall-mounted outdoor light fixture with a rectangular metal frame and frosted curved diffuser, lit against a neutral wall.

Wall-mounted light switch beside a frosted glass door with a vertical metal handle.

View of a front door facade with two lights; Text: 'Reference height of the front door: 2.20 m' and 'This is how the light looks on your facade.'

Lamp with E27 socket for replaceable light bulbs; the illustrated light bulb is not included.

Illustration of a house with motion detector and detection range; Text: 'With Infrared Motion Detector' and 'Automatic Lighting Around the House.' 180°/10 m

Technical line drawing of a wall-mounted fixture seen front and side views, showing dimensions 240 mm high, 230 mm wide, and 80 mm deep.<br>

STEINEL's Quality Promise: tested quality, 3 years manufacturer's warranty, developed in Germany, personal customer service.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

18 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 71.99 / piece)

€ 71.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

OUTDOOR LAMP L 20 S STAINLESS STEEL

Power= 60 W White

Technical specifications

Sensor type: passive infrared
Segment-detection fade-out possible: Yes
The light-intensity threshold: 2 -2000 Lux

Product type: Outdoor wall light (+ motion detector)

Type: Square

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: Energy-saving bulb
LED (monochrome)

: E-27

Rating per bulb: 60 W

: 60 W

Energy consumption: 60 kWh/1000h

Colour: White

PIR detection angle (horizontal): 180°

Coverage max. (width): 10 m

Adjustable on-time (min.): 8 s

Adjustable on-time (max.): 35 min

Light features: Incl. motion detector
Incl. dimmer

Rotation range (max.): 90°

Swivel range (max.): 90°

Protection class: II

: IP44

Factory colour: Silver

Material: Plastic
Stainless steel

Weight: 0.7 kg

Dim: (L x W x H) 85 mm x 24 cm x 23 cm

: n.rel.

Light bulb included: No

Width: 24 cm

Height: 23 cm

Length: 85 mm

Depth: 8 cm

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 572315 Steinel L20 S 566814 Outdoor wall light (+ motion detector) Energy-saving bulb, LED (monochrome) E-27 60 W Silver

User & Safety Instructions

User & Safety Instructions 572315 Steinel L20 S 566814 Outdoor wall light (+ motion detector) Energy-saving bulb, LED (monochrome) E-27 60 W Silver

Warranty Terms

Warranty Terms 572315 Steinel L20 S 566814 Outdoor wall light (+ motion detector) Energy-saving bulb, LED (monochrome) E-27 60 W Silver

Description

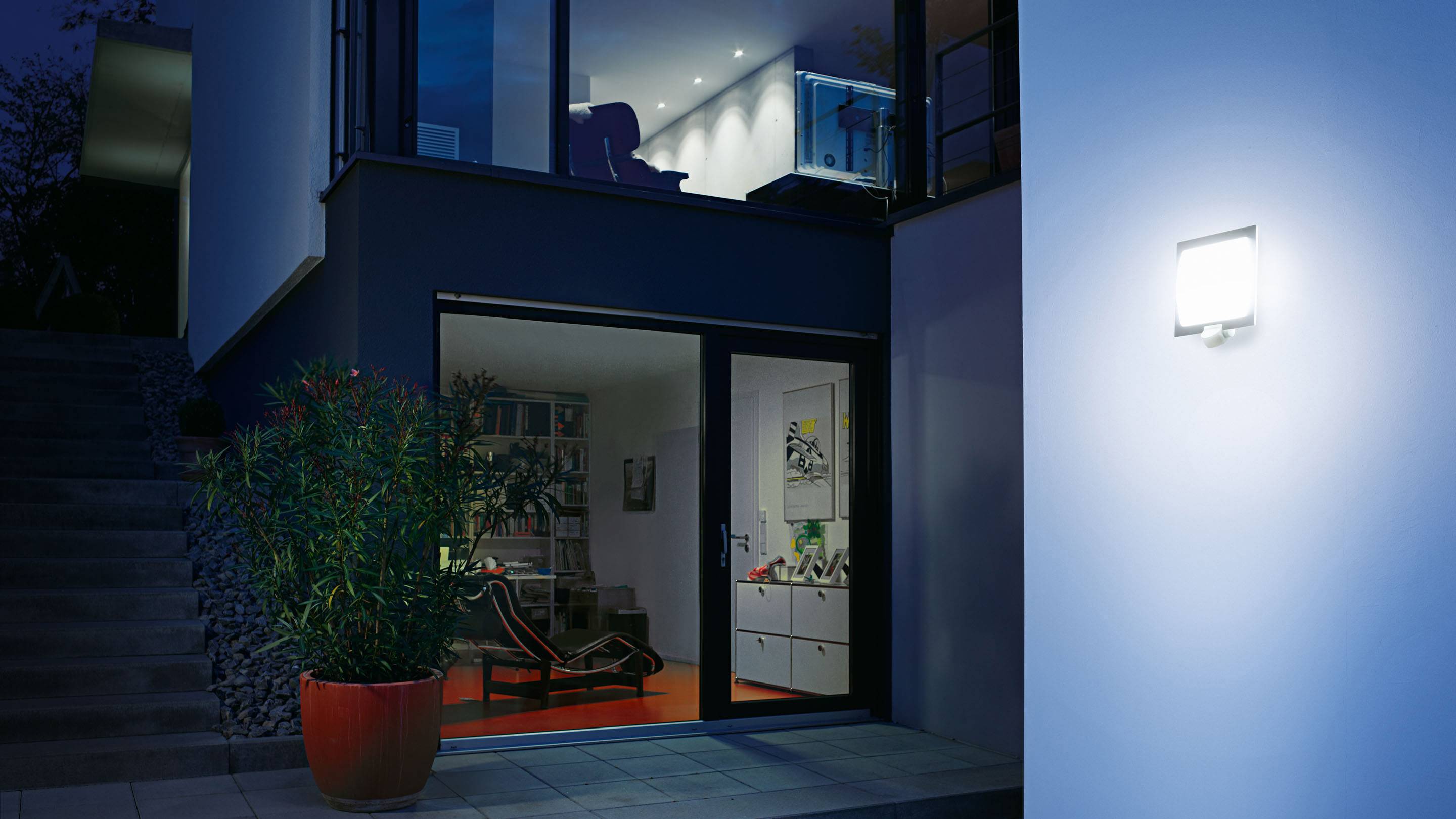

Modern design for your house wall. In timeless perfection.The sensor outdoor lamp L 20 radiates an appealing and uniform light. The simple design and the inviting ambient light are particularly suitable for driveways, house walls or side entrances. Its modern appearance and its large adjustable detection range make it a real highlight on every wall of the house and it also saves a lot of energy. By the way, the lamp can be mounted so quickly and easily, your neighbor will not even notice it.
