Sygonix SY-4599778 Code lock Surface-mount 18 V DC IP66

Black keypad with numbers 1 to 9, 0, asterisk, hash, and green light on top. 'sygonix' brand at the bottom. Electronic numeric lock.

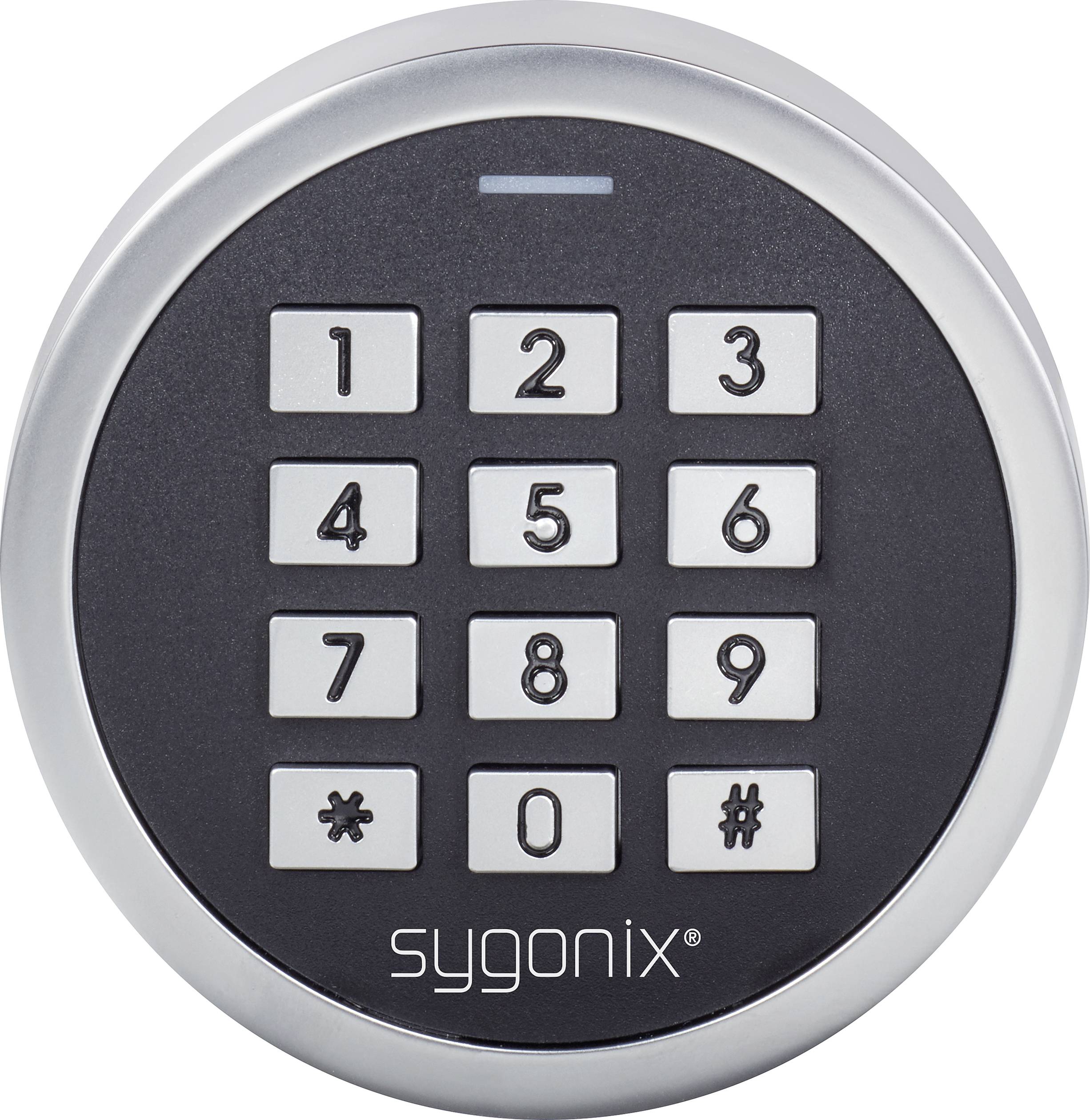

Black keypad with twelve keys, numeric 1-9, 0, asterisk and hash. Silver border. Text 'sygonix' along the bottom edge.

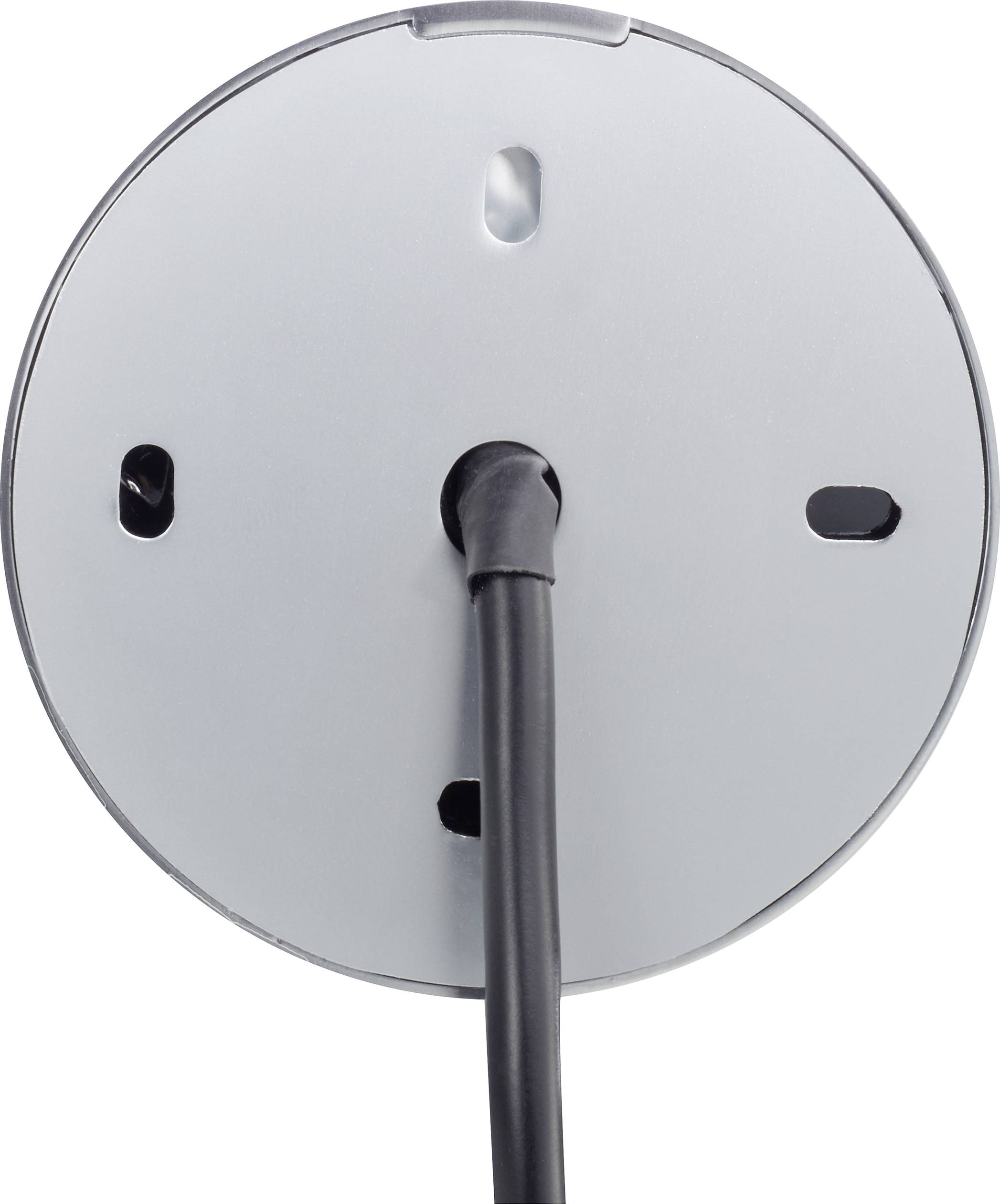

Rear view of a round electrical device with a centrally emerging cable.

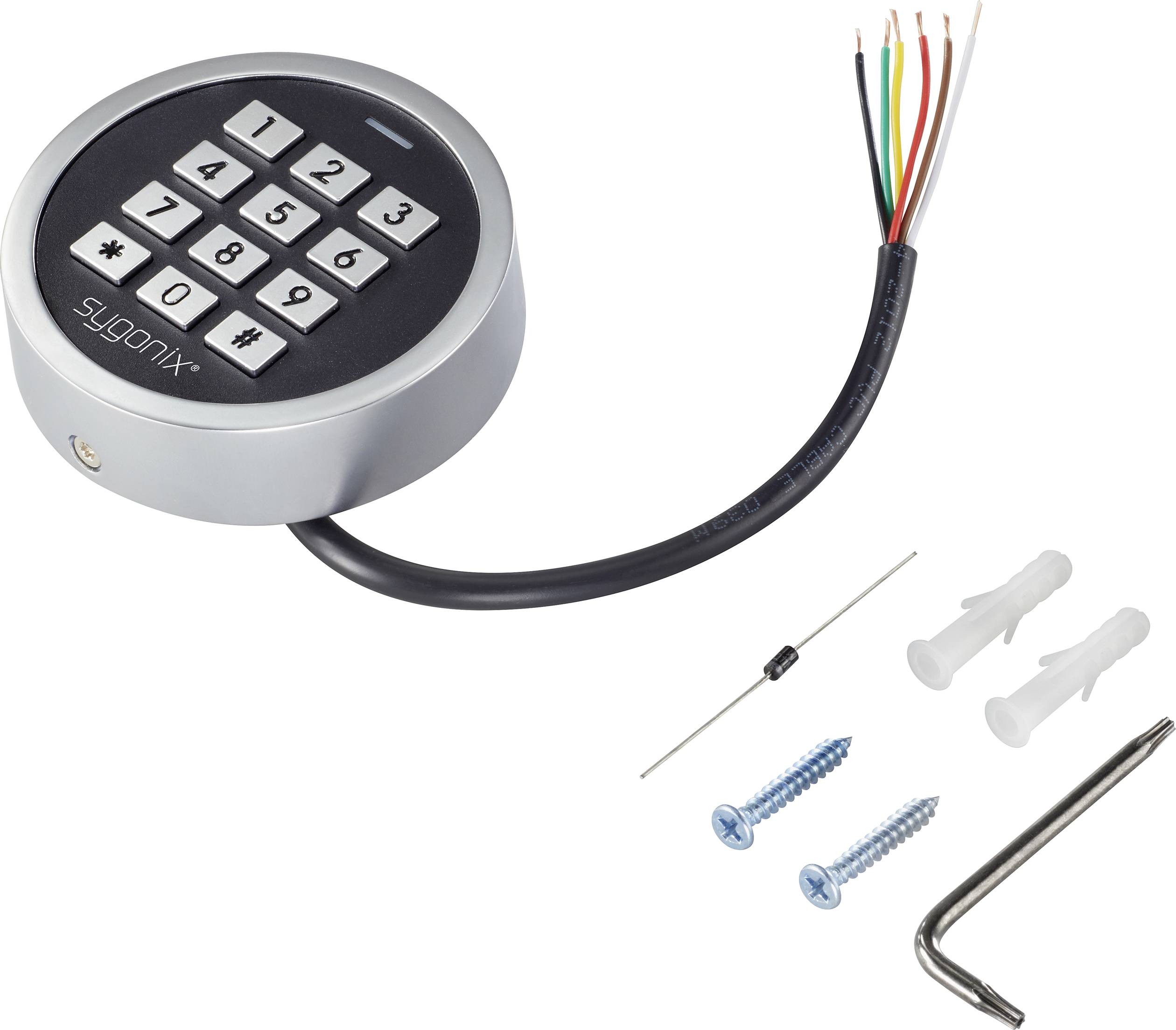

Electronic door lock with round keypad and cable. Includes screws, wall plugs, Allen key and resistance for installation.

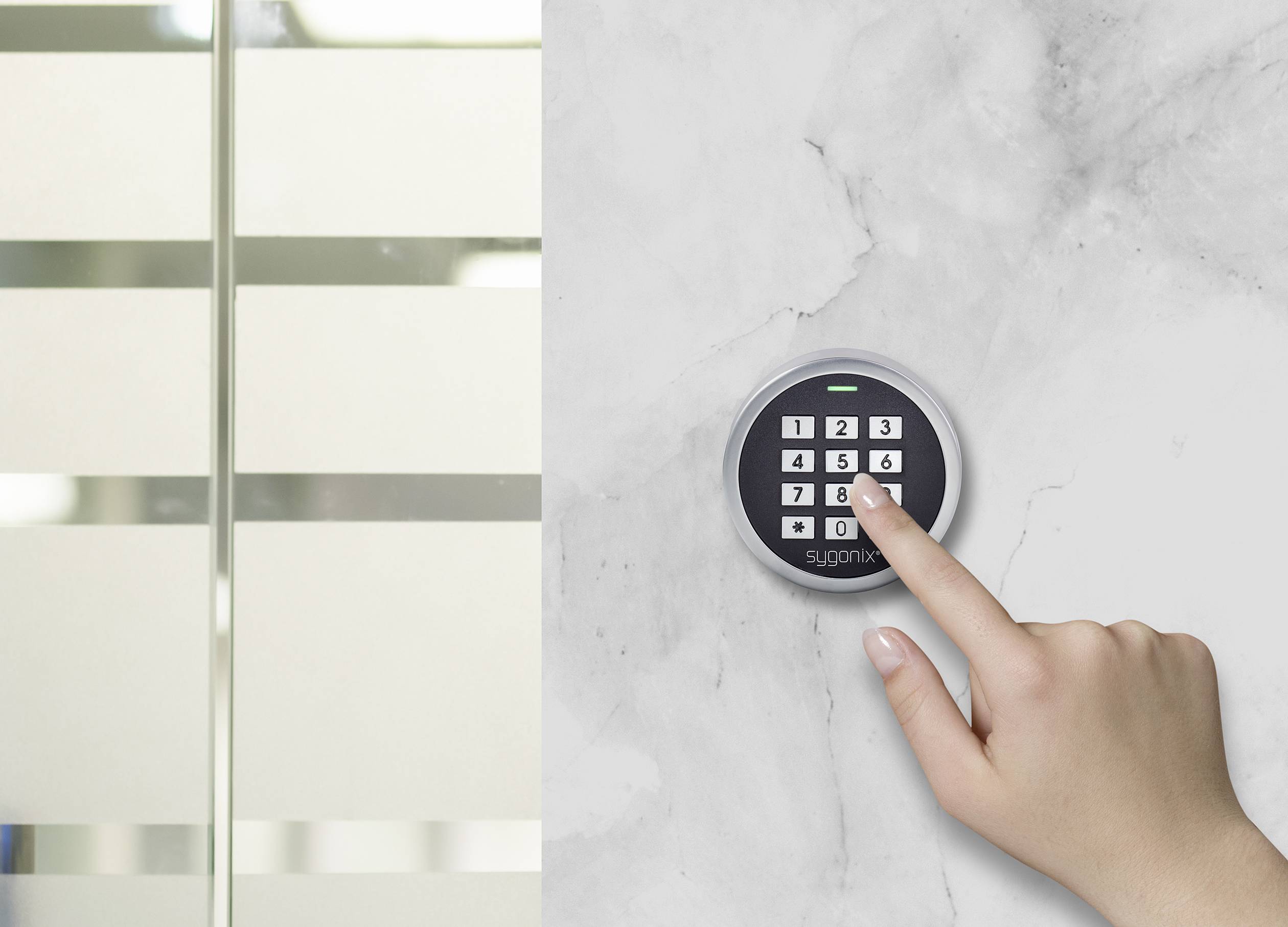

A hand presses buttons on a round combination lock beside a glass door with horizontal stripes.

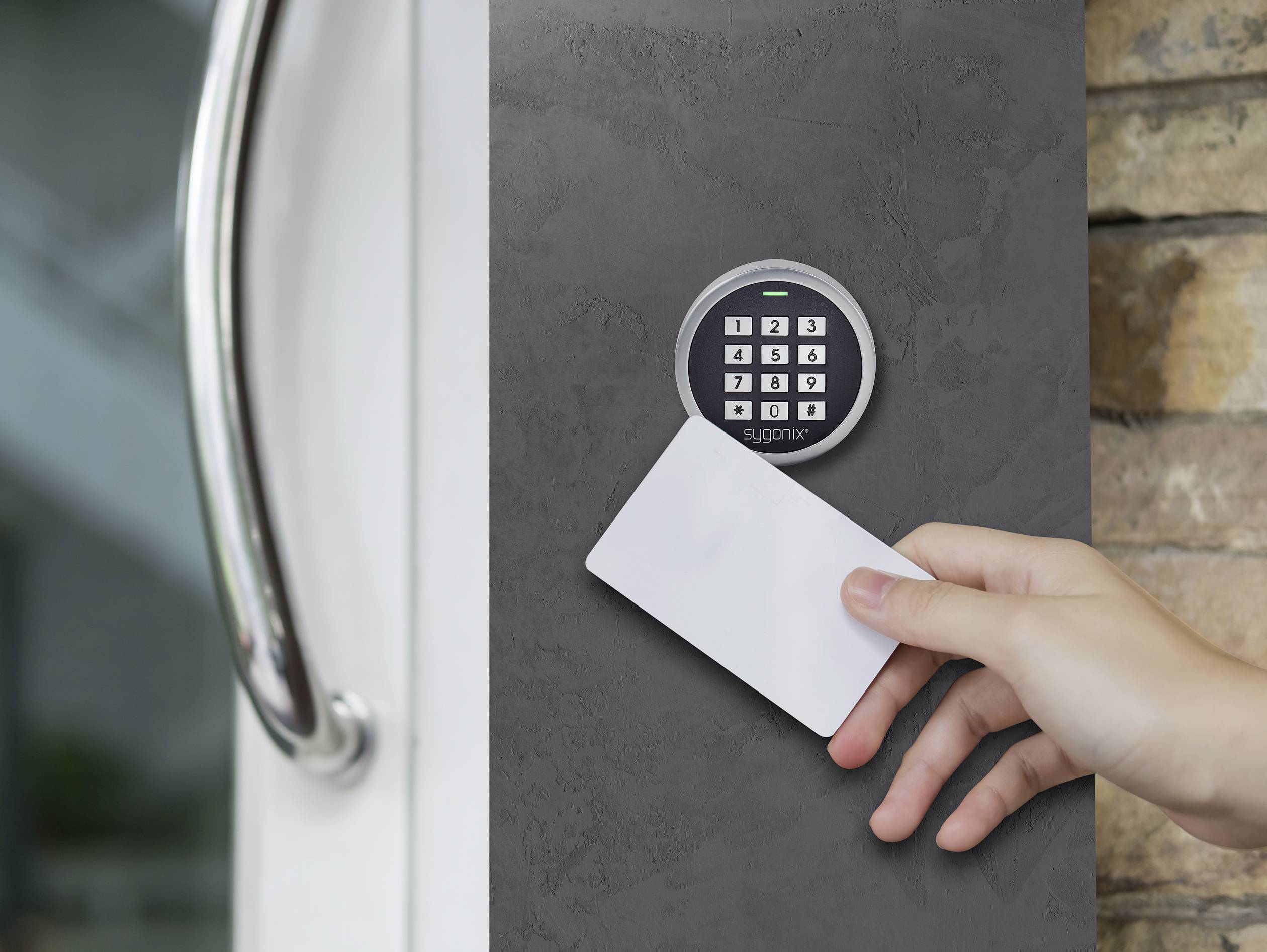

A hand is holding a white access card in front of an electronic door system with a keypad for access control.
1/6
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 37.99 / piece)
€ 37.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Modern and stylish design with vandal-proof metal caseWeatherproof with IP66 ratingCan be accessed via RFID card or PIN code

  • Modern and stylish design with vandal-proof metal case
  • Weatherproof with IP66 rating
  • Can be accessed via RFID card or PIN code

Our service for you

Technical specifications

  • Mounting location: Interior and exteriorTransponder:125 kHz EM-cardFrequency range 124.6 - 125.4 kHzTransmission power 16.37 dBmReading distance: ≤4 cmLength of PIN codes: 4-6 digits
Product type

Code lock

Operating voltage

18 V DC

Current consumption

80 mA to max. approx. 50 mA (typical for idling)

Mounting type

Surface-mount

Triggered by

Numerical code

Transponder

No. of codes/combinations

1000

LEDs

1 pc(s)

Contact load capacity

Max. 2A, 12/24 V/DC

IP66

Weight

199 g

Dim

(W x H x D) 73 x 73 x 20 mm

Width

73 mm

Height

73 mm

Depth

20 mm

Plastic free packaging

Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2299889 Sygonix SY-4599778 Code lock Surface-mount 18 V DC IP66

User & Safety Instructions 2299889 Sygonix SY-4599778 Code lock Surface-mount 18 V DC IP66

User & Safety Instructions 2299889 Sygonix SY-4599778 Code lock Surface-mount 18 V DC IP66

Conformity certificate

Conformity certificate 2299889 Sygonix SY-4599778 Code lock Surface-mount 18 V DC IP66

Warranty Terms

Warranty Terms 2299889 Sygonix SY-4599778 Code lock Surface-mount 18 V DC IP66

Description

This modern code lock is designed to secure doors against unauthorized entry (e.g. in an office). A maximum of 990 users with different codes (regular user codes) as well as 10 temporary guest codes or Guest transponder (with limit of usage) can be saved. A relay output (1x changeover contact, max. 18 V/DC, 2 A) can be used to control a door opener or other devices (e.g. an alarm system).

This text is machine translated.

Features

  • 1000 users (990 standard users + 10 guest users)
  • One relay output
  • Anti-tamper alarm
  • Pulse mode and toggle mode
  • Multi-colour LED status display

Scope of delivery

  • Access control
  • Diode
  • 2x Screws
  • 2x Dowels
  • Spanner
  • User manual
