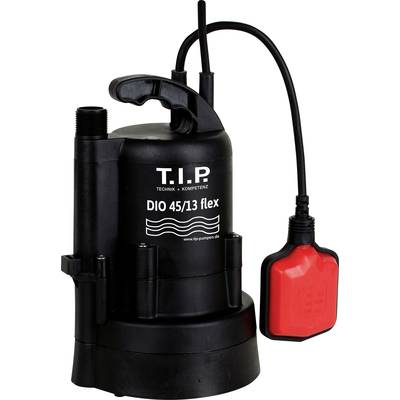

Submersible pump with red float and the inscription 'T.I.P. DIO 45/13 flex'.

Submersible pump with red float and the inscription 'T.I.P. DIO 45/13 flex'.

Black bicycle valve extensions and a black air pump. Valves have grooved screw caps, pump with locking mechanism.

'T.I.P. DIO 45/13 Flex Dirty Water Submersible Pump' with float switch, black colour, positioned vertically, suitable for sewage drainage.

'Close-up of an irrigation system in a green water tank outdoors. Trees and vegetation are visible in the background.'

1/4

T.I.P. - Technische Industrie Produkte

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 67.99 / piece)

€ 67.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Rainwater barrel pump

Max. delivery rate 2700 l/h
Max. pumping height 13 m

Technical specifications

Product type: Barrel pump

Max. delivery head: 13 m

Max. feed rate: 2700 l/h

Max. discharge pressure: 1.3 bar

Operating voltage: 230 V

Power consumption (P1): 350 W

Max. size of solids: 2 mm

Immersion depth: 5 m

Max. cable length: 10 m

Float switch: Yes

Length: 165 mm

Width: 155 mm

Height: 265 mm

Dim: (L x W x H) 165 x 155 x 265 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 275960 T.I.P. - Technische Industrie Produkte 30263 DIO 45/13 Barrel pump 2700 l/h 13 m

User & Safety Instructions 275960 T.I.P. - Technische Industrie Produkte 30263 DIO 45/13 Barrel pump 2700 l/h 13 m

Warranty Terms

Warranty Terms 275960 T.I.P. - Technische Industrie Produkte 30263 DIO 45/13 Barrel pump 2700 l/h 13 m

Description

Submersible pump with vertical pump output and impact-resistant plastic housing. It is ideally suitable for emptying rain barrels and similar containers. The pump can be mounted onto the riser pipe clip on the reservoir thanks to the edge can be fixed. The flow rate is by means of a slider at the outlet infinitely variable. The DIO 45/13 is run dry safe thanks to the float switch. Also the pump is perfect for use with a garden nozzle and convenient filling of watering can.

This text is machine translated.

Scope of delivery

Incl. three-piece riser pipe with flexible connection, quick connection piece, shut-off valve, adjustable clamping device for fixing the riser tube on the fluid container.

Description

Submersible pump with vertical pump output and impact-resistant plastic housing. It is ideally suitable for emptying rain barrels and similar containers. The pump can be mounted onto the riser pipe clip on the reservoir thanks to the edge can be fixed. The flow rate is by means of a slider at the outlet infinitely variable. The DIO 45/13 is run dry safe thanks to the float switch. Also the pump is perfect for use with a garden nozzle and convenient filling of watering can.

This text is machine translated.

Scope of delivery

Incl. three-piece riser pipe with flexible connection, quick connection piece, shut-off valve, adjustable clamping device for fixing the riser tube on the fluid container.
