TE Connectivity Crimp contact Mini-Universal-MATE-N-LOK Total number of pins 1 1-794059-0 1 pc(s)

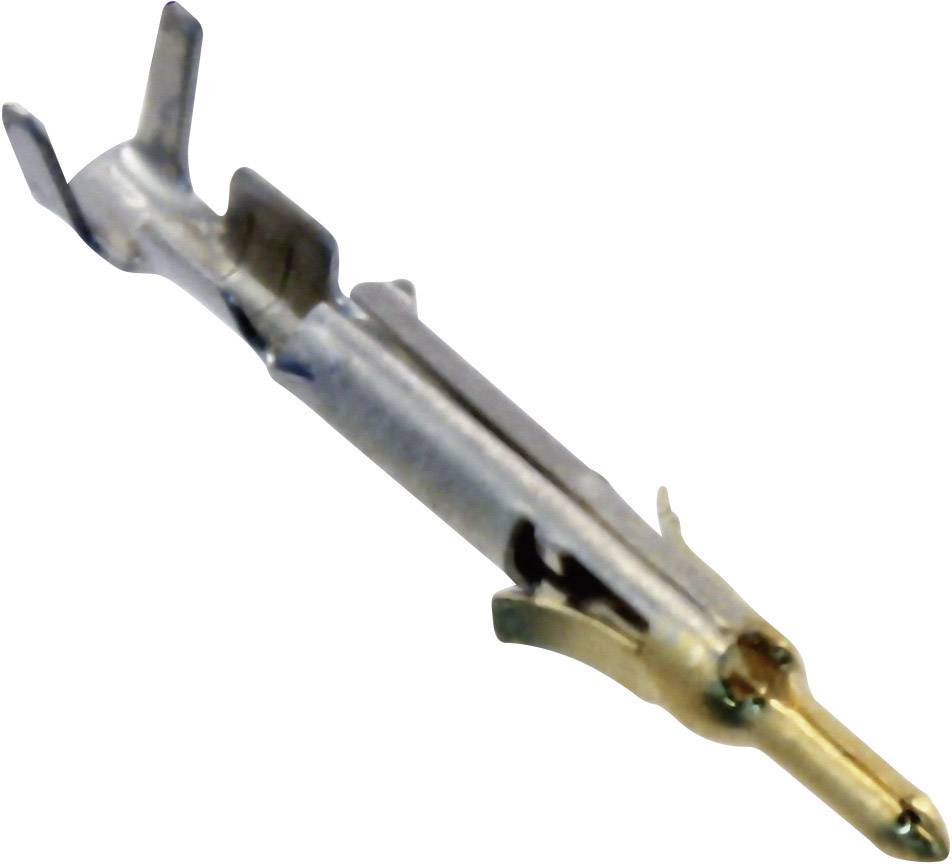

'A metal plug contact, used for electrical connection, shown with its protruding wings for secure retention in the housing.'
Image similar
Product type
Crimp contact
Connector type
Pin
No. of rows
1
Series
Mini-Universal-MATE-N-LOK
Total number of pins
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
759 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 0.35 / piece)
€ 0.35
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Pin contact for Mini Universal MATE-N-LOK

  • Content: 1 pc(s)
  • No. of rows: 1
  • Total number of pins: 1

Our service for you

  • A triangular sign with the letters 'D', 'V', 'E'.
  • A black and white, abstract circular design with geometric shapes and a black segment in the upper right area of the circle.
  • 'CRAUS' logo in stylised lettering, predominantly in capital letters, on a white background.

Technical specifications

Product type

Crimp contact

Connector type

Pin

No. of rows

1

Connector system

wire-to-wire

Series

Mini-Universal-MATE-N-LOK

Pins per row

1

Total number of pins

1

Width

17.04 mm

Pin shape

Circular

Nominal current

35 A

Nominal current - rounded value

35 A

Content

1 pc(s)

AWG max.

26

AWG (min.)

30

Dim

(L x W x H) 1.93 x 17.04 x 2.67 mm

Connection

Crimp

Manufacturer part #

1-794059-0

Industrial packaging

No

Contact material

Copper alloy

Connector contact surface

Gold plated

Nominal voltage

600 V AC

Height

2.67 mm

Length

1.93 mm

max. cross section

0.012 mm²

Min. cross section

0.05 mm²

RoHS-compliant

Yes

Max. temperature

+125 °C

Min. temperature

-55 °C

Type

Mini-Universal MATE-N-LOK

Documents & Downloads

Datasheet

Datasheet 1231583 TE Connectivity Crimp contact Mini-Universal-MATE-N-LOK Total number of pins 1 1-794059-0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1231583 TE Connectivity Crimp contact Mini-Universal-MATE-N-LOK Total number of pins 1 1-794059-0 1 pc(s)

Information

Information 1231583 TE Connectivity Crimp contact Mini-Universal-MATE-N-LOK Total number of pins 1 1-794059-0 1 pc(s)

Description

Miniaturised version of the proven universal MATE-N-LOC plug connectors.
Typical applications: light industry, entertainment systems. Socket housing for mounting on printed circuit boards. Make sure the connector housing is simply attached.

This text is machine translated.

Scope of delivery

  • Delivery without contacts.
