Name: TE Connectivity Pin housing PCB Mini-Universal-MATE-N-LOK Total number of pins 2 1-770166-1 1 pc(s)
Brand: TE Connectivity
SKU: 1232023
Availability: SoldOut

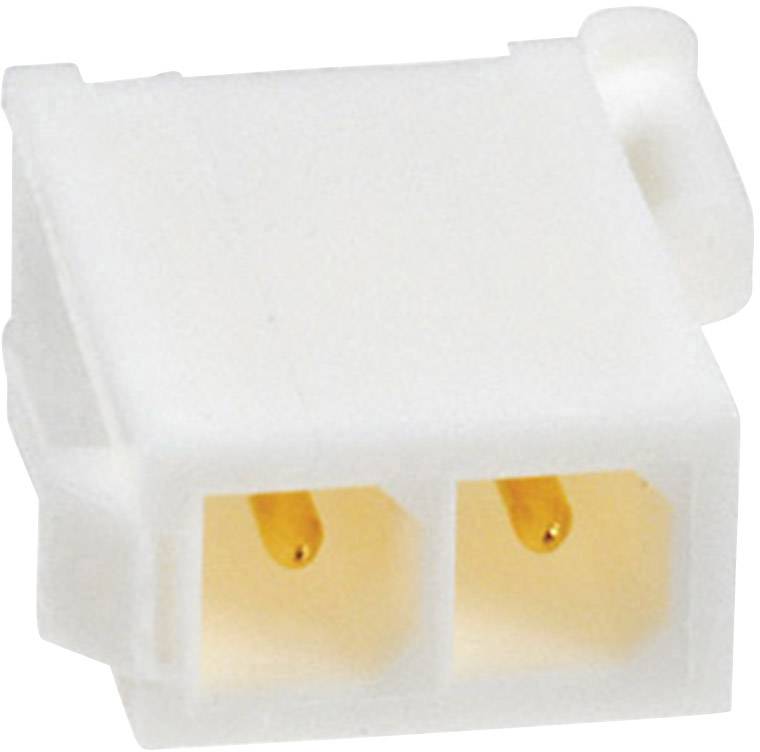

White plastic 2-pin plug with two visible metal pins. Ideal for electronic connections and devices.

Technical drawing of an inline connector for 2 and 3 electrical circuits. Includes dimensions in inches and millimetres.

1/2

Image similar

Product type

Pin housing PCB

Connector type

Plug, vertical mount

No. of rows

Series

Mini-Universal-MATE-N-LOK

Total number of pins

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1.79 / piece)

€ 1.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Mini Universal MATE-N-LOK pin socket

Content: 1 pc(s)
No. of rows: 1
Total number of pins: 2

Our service for you

Technical specifications

Product type: Pin housing PCB

Connector type: Plug, vertical mount

No. of rows: 1

Connector system: wire-to-wire

Series: Mini-Universal-MATE-N-LOK

Pins per row: 2

Total number of pins: 2

Width: 17.94 mm

Pin shape: Circular

Nominal current: 9.50 A

Nominal current - rounded value: 9.5 A

Content: 1 pc(s)

AWG max.: 16

AWG (min.): 30

Dim: (L x W x H) 6.35 x 17.94 x 13.69 mm

Connection: Print

Case material: Polyamide

Manufacturer part #: 1-770166-1

Factory colour: White

Industrial packaging: No

Insulation material: Polyamide

Contact material: Copper alloy

Board contact surface: Tin plated

Connector contact surface: Gold plated

Nominal voltage: 600 V AC

Height: 13.69 mm

Length: 6.35 mm

RoHS-compliant: Yes

Max. temperature: +105 °C

Min. temperature: -55 °C

Type: Mini-Universal MATE-N-LOK

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1232023 TE Connectivity Pin housing PCB Mini-Universal-MATE-N-LOK Total number of pins 2 1-770166-1 1 pc(s)

Description

Miniaturised version of the proven universal MATE-N-LOC plug connectors.
Typical applications: light industry, entertainment systems. Socket housing for mounting on printed circuit boards. Make sure the connector housing is simply attached.
