Buy Teledyne LeCroy T3DSO2354HD-MS Digital 350 MHz 4-channel 1 GS/s 12 MP 12 Bit Mixed signal (MSO) 1 pc(s)

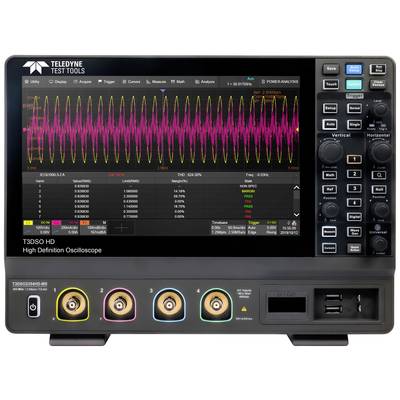

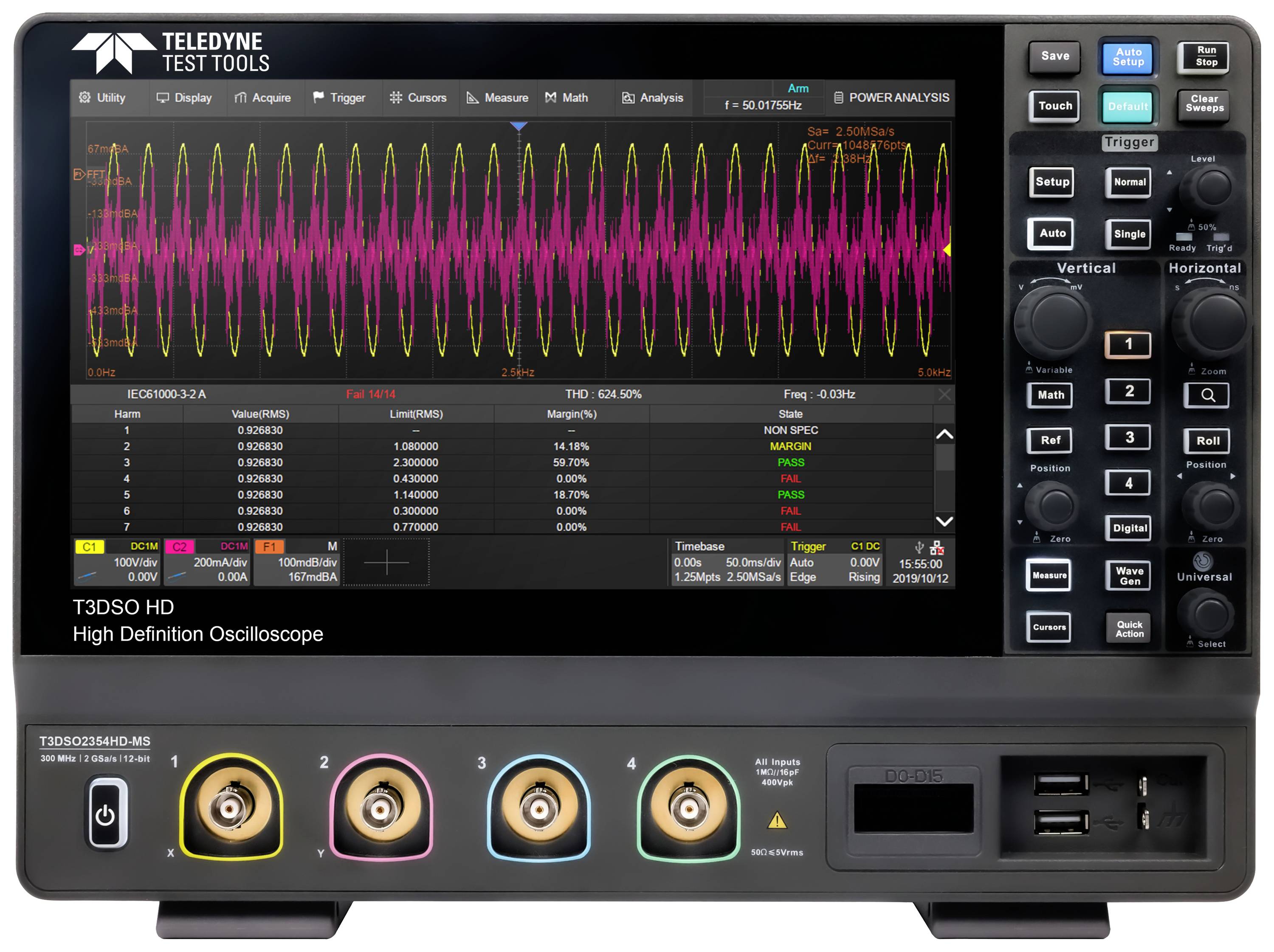

A digital oscilloscope with a display showing a sine wave in pink. Beside the diagram, measurement values and settings are visible.

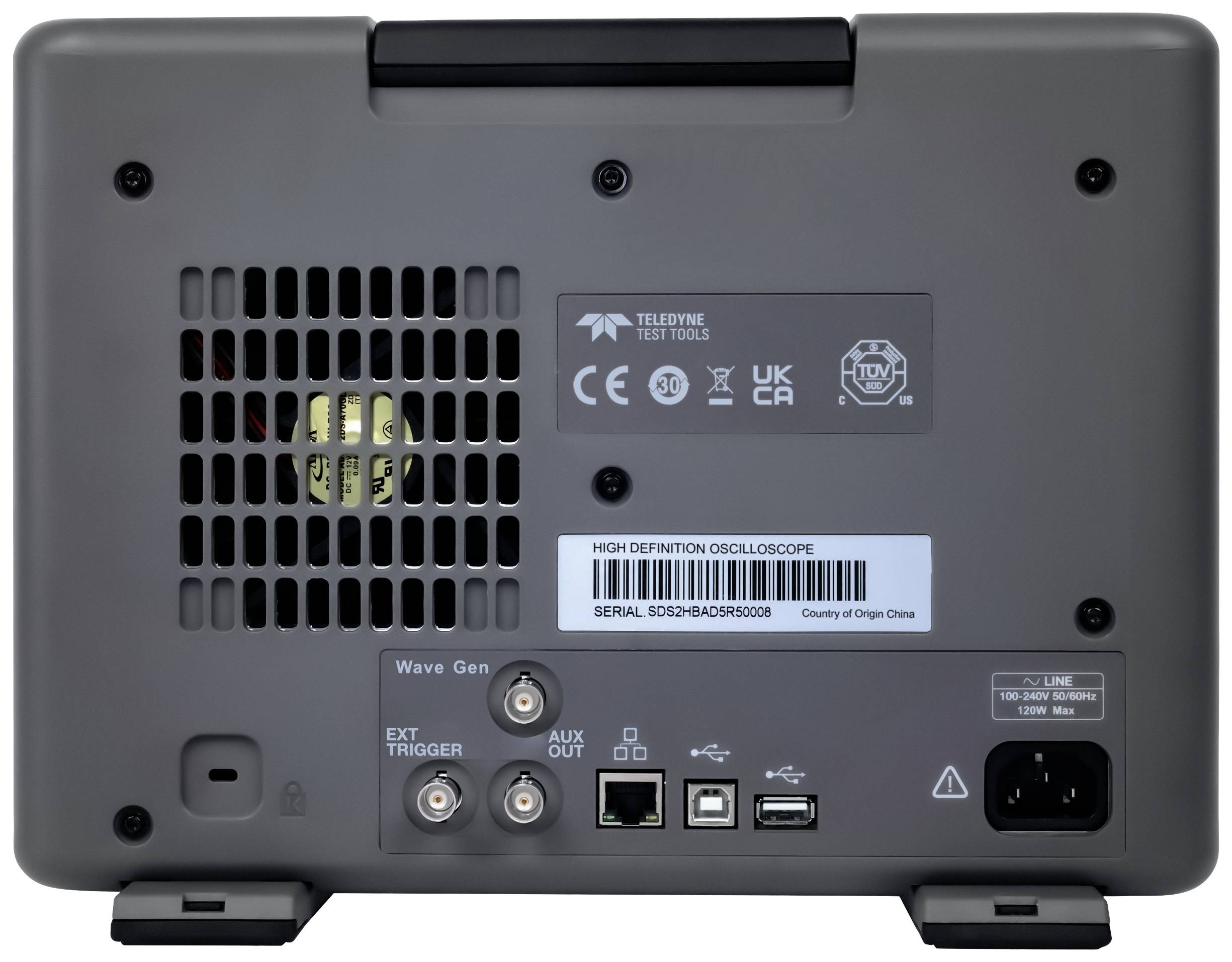

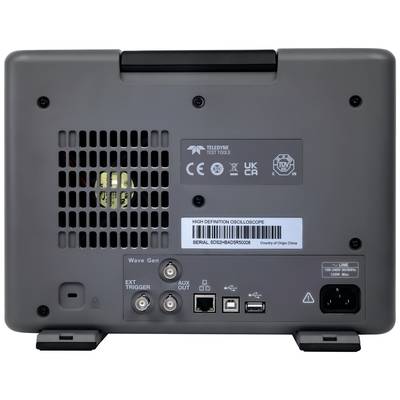

The back panel of an oscilloscope with multiple ports and ventilation grilles. Visible connections: USB, LAN, trigger, power socket.

1/2

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 5,239.50 / piece)

€

Report legal concerns

Highlights & Details

Teledyne LeCroy, 350 MHz, 2 GS/s interleaved, 4 CH, 16 dig CH, 200 Mpts/Ch interleaved, fully loaded MSO

350 MHz
No. of analogue inputs 4

Technical specifications

Product type: Digital

Bandwidth: 350 MHz

Channel sample rate: 1 GS/s

Displays: TFT LCD, 1024 x 600 pixels

Resolution: 12 Bit

Screen size: 25.65 cm

Oscilloscope features: Mixed signal (MSO)

Time base: 1 ns/div - 1000 s/div

No. of analogue inputs: 4

: Manufacturer's standards (with certificate)

Vertical deflection: 2 mV/div to 100 V/div

Input impedance: 1 MΩ

Input coupling: DC AC GND

Input voltage: 230 V

Power supply (details): 100-240 VAC 50/60/400 Hz

Dim: (L x W x H) 317.20 x 149 x 236 mm

Weight: 4.1 kg

No. of digital inputs (max.): 16

Display: TFT LCD 1024 x 600 p

Width: 149 mm

Height: 236 mm

Length: 317.20 mm

Interfaces: USB device
USB host
LAN

Channel memory depth: 12 MP

Type: T3DSO2354HD-MS

Documents & Downloads

Datasheet

Datasheet 3028005 Teledyne LeCroy T3DSO2354HD-MS Digital 350 MHz 4-channel 1 GS/s 12 MP 12 Bit Mixed signal (MSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3028005 Teledyne LeCroy T3DSO2354HD-MS Digital 350 MHz 4-channel 1 GS/s 12 MP 12 Bit Mixed signal (MSO) 1 pc(s)

Description

A modern, affordable 12-bit oscilloscope available in 100 MHz, 200 MHz and 350 MHz bandwidths, each with 4 channels. Configured as an MSO unit. Each oscilloscope is supplied as standard with 16 digital channels as well as all trigger/decoder and analysis software. Teledyne LeCroy T3DSO2000HD series oscilloscopes are all 12-bit high-definition oscilloscopes. The oscilloscopes in the series are configured as DSO and MSO, in order to simplify the purchase. This provides customers with a comprehensive analysis tool for their design and verification requirements.

This text is machine translated.

Features

100 MHz, 200 MHz and 350 MHz bandwidth models, 12-bit ADC, equipped with all trigger/decoder and analysis software as standard
Maximum sampling rate of 1 GSa/s.
Waveform acquisition rates of up to 100,000 WFM/s.
Vertical range from 2 mV/div to 100 V/div
Up to 12 Mpts recording memory
Sequence acquisition mode (up to 80,000 segments)
Function for recording historical waveforms (history) with up to 80,000 images
38 automatic measurement parameters
It supports 256-stage intensity gradations and color temperature display modes
Intelligent trigger: Flank, slope, pulse width, window, run, Interval, Timeout (Dropout), Pattern
Serial bus triggering and decoding (standard) for IIC, SPI, UART, CAN and LIN protocols
Video trigger/HDTV
