Telegärtner 100023704 100023704 TNC connector Plug, right angle 50 Ω 1 pc(s)

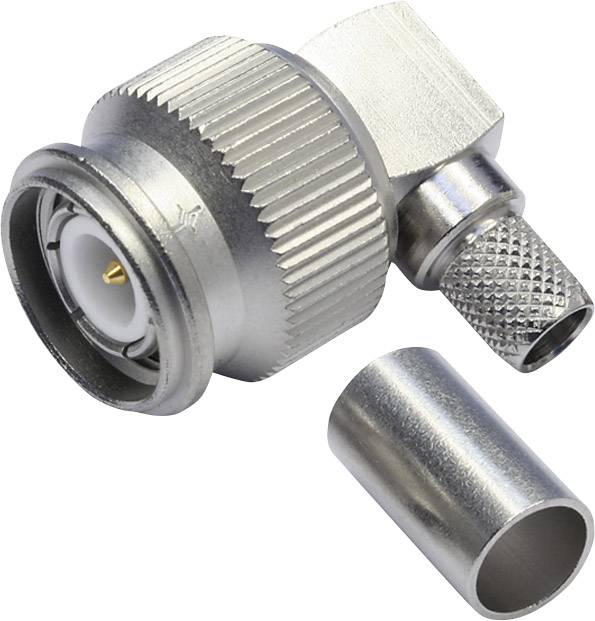

Metal plug adapter with L-shaped socket and removable, knurled housing. Suitable for coaxial cable connections.

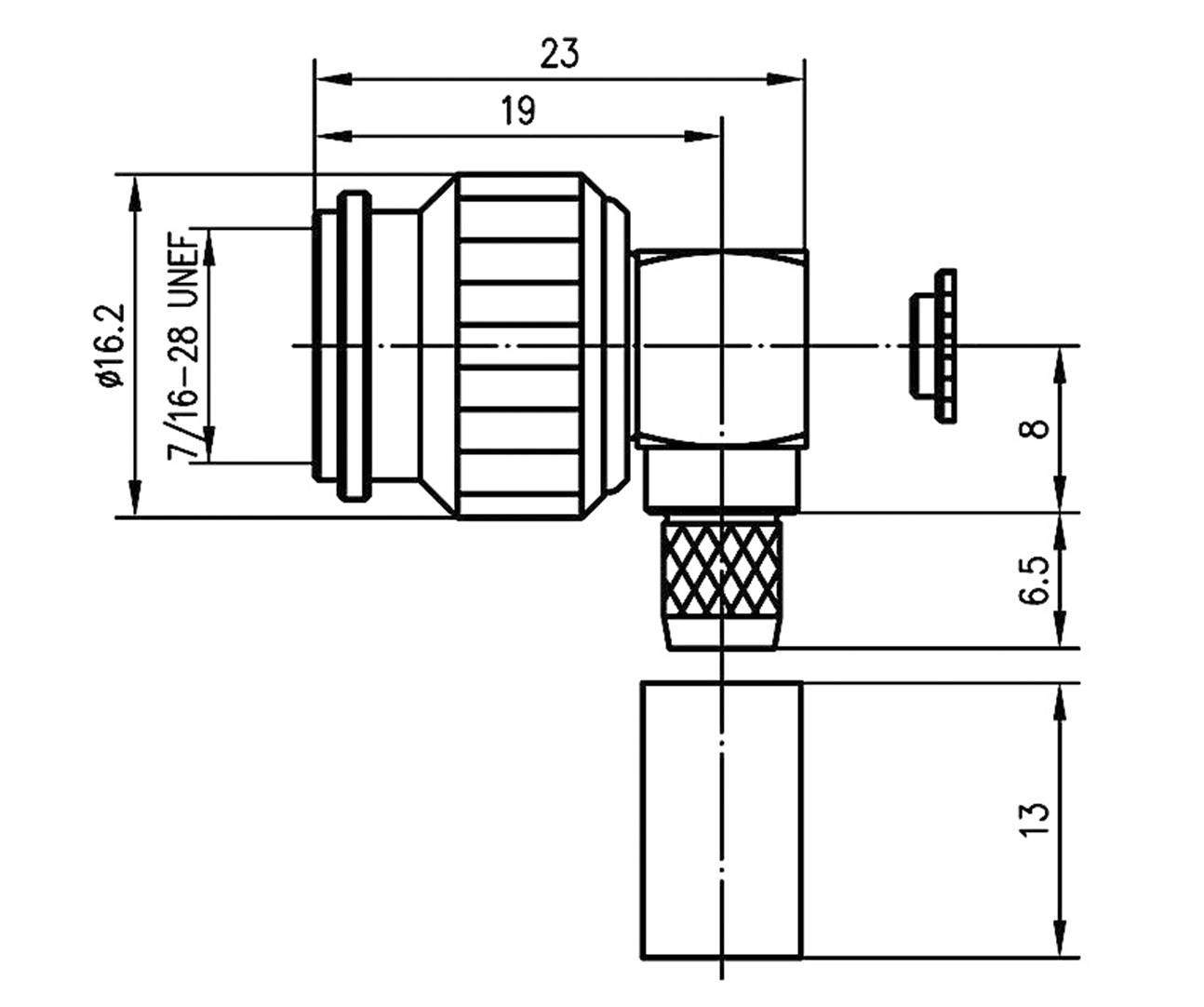

Technical drawing of a pipe connector with dimensions: Length 23 mm, Width 16.2 mm, Connection 7/16-28 UNEF, details of individual components.
1/2
Image similar
Cable category
1.4/3.8AF
Product type
TNC connector
Connector type
Plug, right angle
Impedance
50 Ω
Connection
Crimp
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Mon 9 Nov
19 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 11.99 / piece)
€ 16.99
-29 %
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

TNC-plug connector

  • The plug socket - name, according to the shape of the inner conductor defined.
  • This text is machine translated.

Our service for you

Technical specifications

Cable category

1.4/3.8AF

Product type

TNC connector

Connector type

Plug, right angle

Impedance

50 Ω

Connection

Crimp

Content

1 pc(s)

Cable Ø

5.90 mm

Max. frequency

11 GHz

Case material

Brass nickel plated

Manufacturer part #

100023704

Insulation material

PTFE

Contact material

Brass gold plated

RoHS-compliant

Yes

Temperature range

-40 - +155 °C

Type

100023704

Seal type

Screw-on

Documents & Downloads

Datasheet

Datasheet 1366886 Telegärtner 100023704 100023704 TNC connector Plug, right angle 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1366886 Telegärtner 100023704 100023704 TNC connector Plug, right angle 50 Ω 1 pc(s)

Description

The TNC series is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism, this connector can be used up to 11 GHz. Both 50 Ω and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the TNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. Applications for these connectors range from signal and data to video transmission where vibration resistance is required
