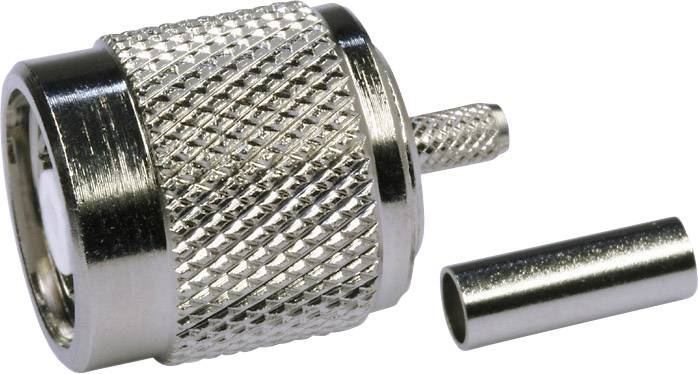

Telegärtner 100023748 100023748 TNC reverse polarity connector Plug, straight 50 Ω 1 pc(s)
Cable category
RG 316/U
Product type
TNC reverse polarity connector
Connector type
Plug, straight
Impedance
50 Ω
Connection
Crimp
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 13.99 / piece)
€ 13.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
TNC reverse polarity connector
- In reverse, the reverse connector type specified.
Our service for you
Technical specifications
- Cable category
RG 316/U
- Product type
TNC reverse polarity connector
- Connector type
Plug, straight
- Impedance
50 Ω
- Connection
Crimp
- Content
1 pc(s)
- Cable Ø
2.70 mm
- Max. frequency
6 GHz
- Case material
Brass nickel plated
- Manufacturer part #
100023748
- Insulation material
PTFE
- Contact material
Brass gold plated
- RoHS-compliant
Yes
- Temperature range
-55 - +155 °C
- Type
100023748
- Seal type
Screw-on
Documents & Downloads
Datasheet
Datasheet 1366019 Telegärtner 100023748 100023748 TNC reverse polarity connector Plug, straight 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366019 Telegärtner 100023748 100023748 TNC reverse polarity connector Plug, straight 50 Ω 1 pc(s)
Description
R-TNC connectors are supplied with a threaded coupling, are vibration resistant and can be used up to frequencies of over 6 GHz. The impedance is controlled at 50 Ω.
