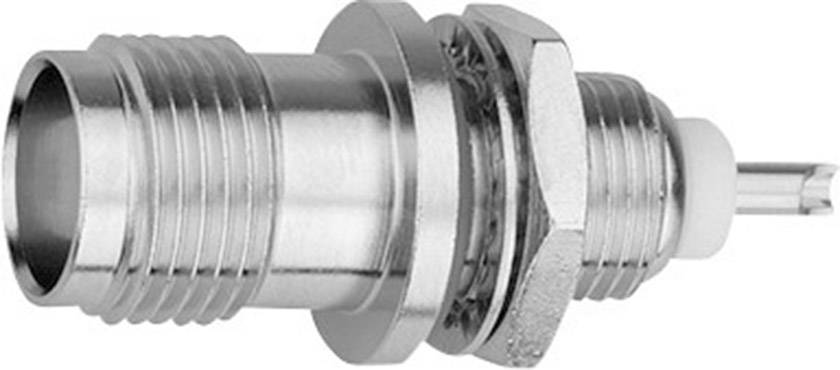

Telegärtner 100023790 100023790 TNC connector Socket, built-in 50 Ω 1 pc(s)
Product type
TNC connector
Connector type
Socket, built-in
Impedance
50 Ω
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 19.99 / piece)
€ 19.99
incl. VAT
14-day return policy included
Highlights & Details
TNC-plug connector
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Technical specifications
- Product type
TNC connector
- Connector type
Socket, built-in
- Impedance
50 Ω
- Connection
Soldering
- Content
1 pc(s)
- Mounting hole diameter
8.5 mm
- Max. frequency
11 GHz
- Front panel thickness
5.5 mm
- Case material
Brass nickel plated
- Manufacturer part #
100023790
- Insulation material
PTFE
- Contact material
Brass gold plated

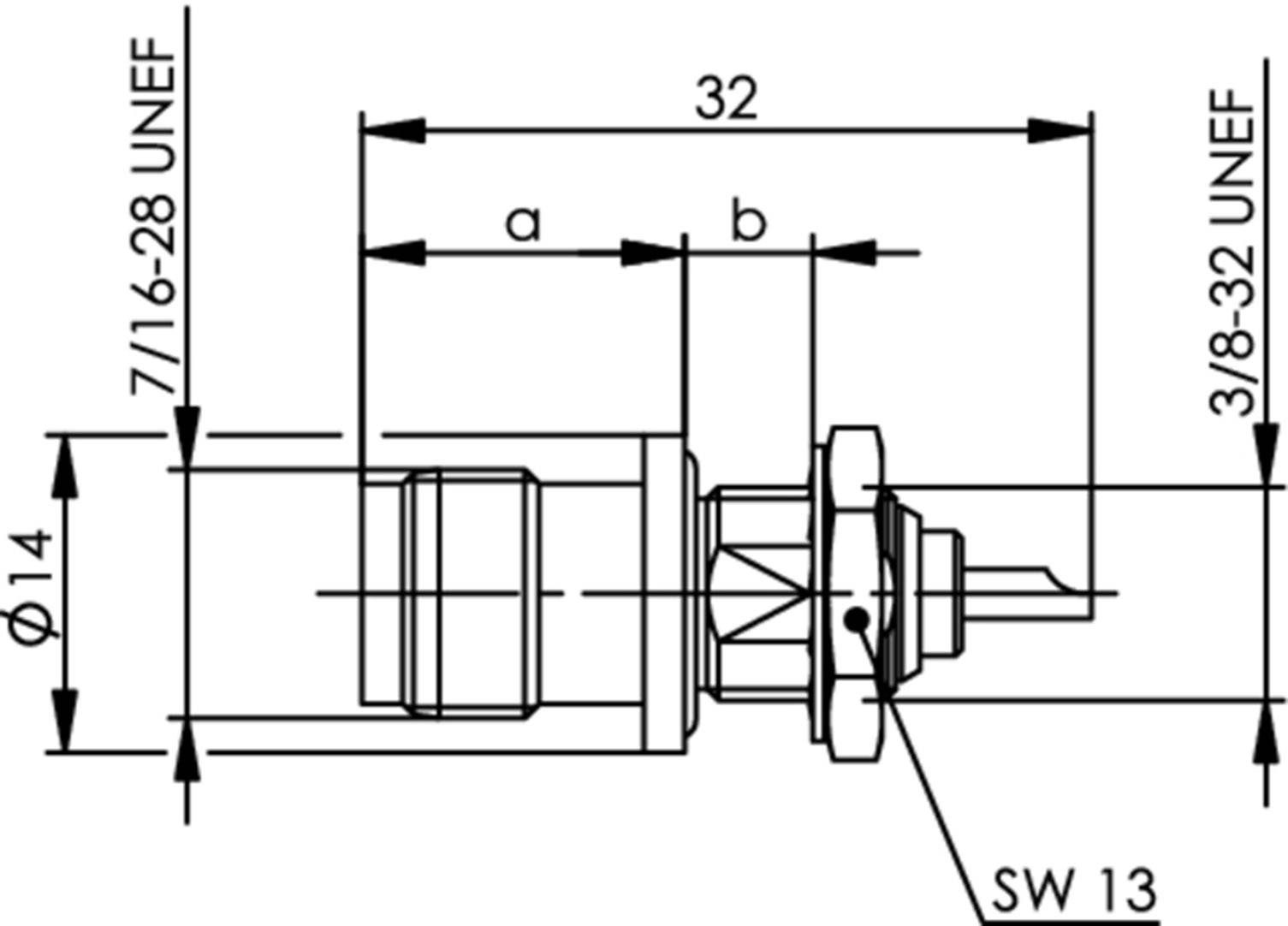

- Length
32 mm
- RoHS-compliant
Yes
- Temperature range
-40 - +155 °C
- Type
100023790
- Seal type
Screw-on
- Factory colour
Silver (metallic)
- Weight
0.012
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1366444 Telegärtner 100023790 100023790 TNC connector Socket, built-in 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366444 Telegärtner 100023790 100023790 TNC connector Socket, built-in 50 Ω 1 pc(s)
Description
The TNC series is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism, this connector can be used up to 11 GHz. Both 50 Ω and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the TNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. Applications for these connectors range from signal and data to video transmission where vibration resistance is required
