Teltonika RUTX50 Router Built-in modem: 5G, LTE, UMTS 2.4 GHz, 5 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 511.76 / piece)
€ 511.76
plus VAT.
Teltonika RUTX50 modem 5G router/WLAN
Highlights & Details
- Hardware
- CPU: 4-core ARM Cortex A7, 717 MHz
- Flash memory 256 MB
- RAM: 256 MB
- SIM: 2x SIM slot (Mini SIM - 2FF), 1.8 V/3 V
- Antenna connections: 4x SMA for mobile telecommunications, 2x RP-SMA for WiFi, 1x SMA for GNSS
- Wireless mesh/roaming: Wireless mesh (802.11s), fast roaming (802.11r)
- GNSS: GPS, GLONASS, Beidou, Galileo, QZSS
Technical specifications
- Mobile: 5G Sub-6 GHz SA/NSA 2.1/3.3 Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2) 4G (LTE) - LTE CAT 20 2.0 Gbps DL, 200 Mbps UL 3G - 42 Mbps DL, 5.76 Mbps UL
- Power Options: 4-pin power connector, 9-50 VDC
- Ethernet 5 x 10/100/1000 Ethernet connections: 1 x WAN (configurable as LAN), 4 x LAN
- 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transfer rates of up to 867 Mbps (Dual band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
- Inputs/outputs: 4-pin socket: 1 x digital input, 1 x digital open collector output
- 1 x USB-host, 1 x earthing screw
- Product type
Router
- Type
RUTX50
- Function
Router
- Built-in modem
5G
LTE
UMTS
- Wi-Fi standard
IEEE802.11b
IEEE802.11g
IEEE802.11n
IEEE802.11ac
- Wi-Fi frequency band
2.4 GHz
5 GHz
- Wi-Fi speed 2.4 GHz
867 MBit/s
- Wi-Fi speed 5 GHz
867 MBit/s
- LAN data transfer rate
1 GBit/s
- Interfaces
Gigabit LAN (1 Gbps)
- Features
Mesh support
- No. of antennas
7 x
- 10/100/1000 Mbps ports
5 x
- Width
132 mm
- Height
44 mm
- Depth
95 mm
- Weight
553 g
- Factory colour
Silver
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2865644 Teltonika RUTX50 Router Built-in modem: 5G, LTE, UMTS 2.4 GHz, 5 GHz
User & Safety Instructions
User & Safety Instructions 2865644 Teltonika RUTX50 Router Built-in modem: 5G, LTE, UMTS 2.4 GHz, 5 GHz
Description

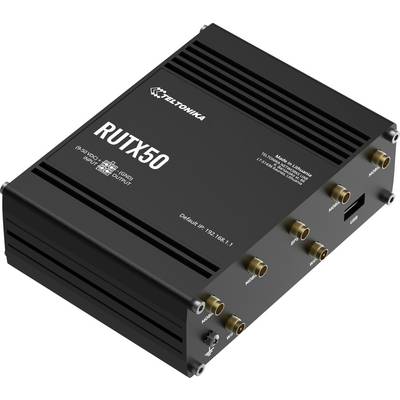

RUTX50 Industrial 5G router
RUTX50 is your future-proof multi-network industrial router that provides 5G mobile communications for high-speed and data-intensive applications.
5G Dual SIM mobile communications combined with 5 Gigabit Ethernet ports and Dual band Wi-Fi provide reliable data transfer with ultra low latency.
The performance of 5G technology combined with a wide range of interfaces and industrial hardware features ensures adaptability for future upgrades and extensions.
RUTX50 comes with the RutOS, which offers advanced security features and specialized industry protocols for a wide range of professional application scenarios, and is compatible with the Remote Management System (RMS), which provides enhanced remote management and monitoring capabilities for large device fleets.
This text is machine translated.
Scope of delivery
- Includes power supply
- 4 x mobile antennae
- 2 x Wifi antennas
- GNSS antenna
- Ethernet cable (1.5 m)
- SIM adapter kit
- QSG
Hints
Already new version with black paint!
