Testboy TV 296 IR camera -20 up to 400 °C 256 x 192 Pixel Touchscreen, Wi-Fi
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 665.00 / piece)
€ 665.00
incl. VAT
14-day return policy included
Highlights & Details

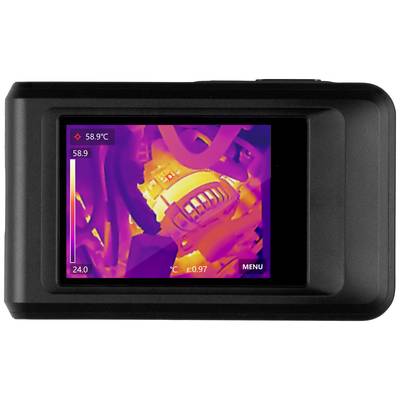

Testboy TV 296 infrared camera with Bluetooth/Wi-Fi
- Thermal imaging camera
- Temperature reading range -20 up to 400 °C
- 256 x 192 Pixel Bolometer matrix
- Thermal sensitivity 40 mK
Technical specifications
- Type
TV 296
- Product type
IR camera
- Bolometer array
256 x 192 Pixel
- Temperature reading range (max.)
400 °C
- Colour schemes
8
- Temperature reading range (min.)
-20 °C
- Optics
50° x 37.2°
- Display resolution
640 x 480 Pixel
IP54
- Thermal sensitivity
40 mK
- Dim
(L x W x H) 85.20 x 138.50 x 23.60 mm
- Digital zoom
4 x
- Display
3.5" LCD touch color display
- Emission level (max.)
1
- Emission level (min.)
0.01
- Weight
218 g
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Temperature reading range
-20 up to 400 °C
- Min. focusing distance
0.3 m
- Width
138.50 mm
- Height
23.60 mm
- Length
85.20 mm
- Features
Touchscreen
Wi-Fi
Manufacturer's standards (no certificate)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2858378 Testboy TV 296 IR camera -20 up to 400 °C 256 x 192 Pixel Touchscreen, Wi-Fi
User & Safety Instructions
User & Safety Instructions 2858378 Testboy TV 296 IR camera -20 up to 400 °C 256 x 192 Pixel Touchscreen, Wi-Fi
Description
The arguments of a "mobile phone", handy, easy to use and compact, also fit on the new infrared thermal camera Testboy TV 296. A package of impressive performance comes together for the handy design. With a true resolution of 256x192 pixels (=49,152), a visual 8 megapixel camera and a 25 Hz sensor data recording, the infrared camera can count some of the thermal cameras taking part in the market. The other characteristic features that can be presented are the variable adjustable emission level, 8 color palettes, USB interface and the 3.5” touch-color LCD display. The infrared camera also communicates wirelessly via Bluetooth and WiFi.
This text is machine translated.
This text is machine translated.
Features
- 3.5" touch-color display
- 640 x 480 pixels
- IR resolution: 256 x 192 pixels
- CCD camera 3264 x 2446 (8 MP)
- Digital zoom 1.0x to 4.0
- Temperature range (NETD) 40 mK (@25° C)
- Field of view (FOV) 50° x 37.2°
- 8 color palettes
- 16 GB Flash storage
- USB-C interface
- Auto Power-Off adjustable
- WiFi 802.11 b/g/n
- Data format JPG, MP4
Scope of delivery
- Hard case
- USB-C cable
- Power supply unit
