Name: testo 745 Non-contact voltage tester CAT III 1000 V, CAT IV 600 V Acoustic, LED
Brand: testo
SKU: 1436959
Availability: InStock

Highlights & Details

Non-Contact AC Voltage Tester - testo 745

Two sensitivity levels with audible and visual indication
Flashing LED indicates sensitivity range down to 12 V AC or standard range above 50 V AC
Differentiates hot from neutral in AC outlets
Low Pass Filter reduces false indications

Technical specifications

Resolution: 12 ... 1000 V AC
Overvoltage Category: CAT IV 600 V
CAT III 1000 V
Protection class: IP67
Operating temperature: -10 … +50 °C
Dimensions: 155 x 25 x 23 mm
Authorizations: CSA, CE
Standards: EN 61326-1, EN 61010-1

Product type: Non-contact voltage tester

Reading type: Phase

Display: Acoustic
LED

V AC reading range: 12 up to 1000 V

Reading category: CAT III 1000 V
CAT IV 600 V

: IP67

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 23 x 25 x 155 mm

Weight: 63 g

V AC reading range (max.): 1000 V

V AC reading range (min.): 12 V

Width: 25 mm

Height: 155 mm

Length: 23 mm

Type: 745

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1436959 testo 745 Non-contact voltage tester CAT III 1000 V, CAT IV 600 V Acoustic, LED

User & Safety Instructions

User & Safety Instructions 1436959 testo 745 Non-contact voltage tester CAT III 1000 V, CAT IV 600 V Acoustic, LED

Description

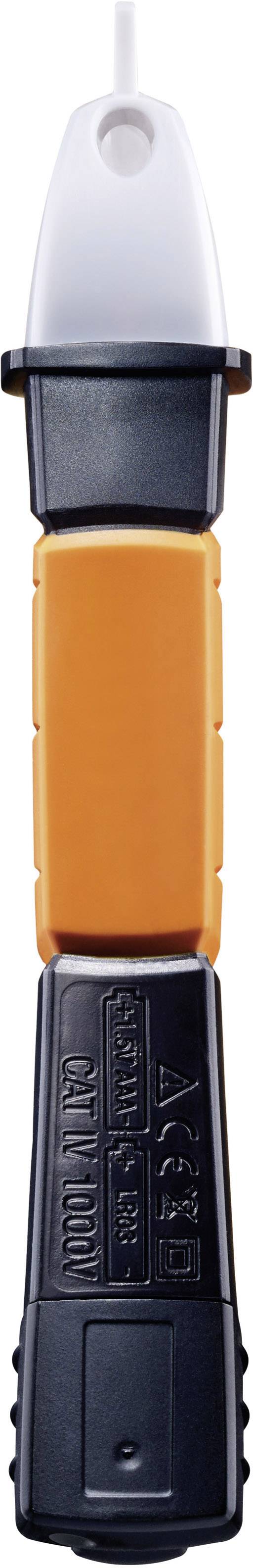

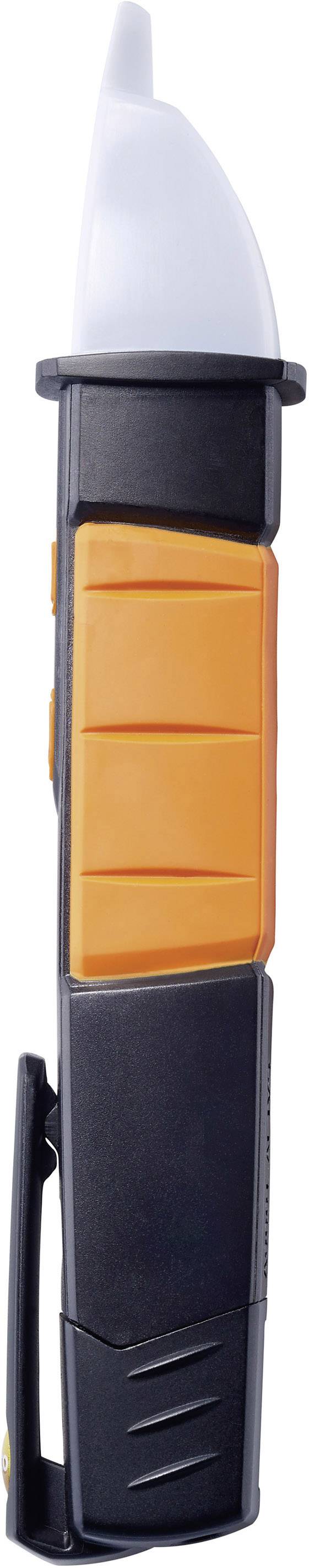

The testo 745 non-contact voltage (NCV) tester quickly checks for the presence of voltage in AC powered systems. It can be safely used up to 1000 V AC. When AC voltage is detected, the testo 745 gives indication by flashing RED LEDs and buzzing audible tones. You can easily determine the hot and neutral legs of an outlet without lengthy and risky removal of the outlet. he testo 745 NCV has a built-in Low Pass Filter which greatly reduces high frequency interference which causes false indications. The built-in LED flashlight is bright and focused to make testing simple in dark spaces. It also includes a low battery indication and is waterproof and dustproof rated per IP 67. The testo 745 is rated to CAT III 1000 V and CAT IV 600 V.

Features

Filter for high-frequency interference signals
Voltage range up to 1000 V
Water and dust proof according to IP67
Adjustable sensitivity
Visual and audio signals
Water and dust proof according to IP67
Measuring point illumination
Adjustable for phase determination or voltage indication

Scope of delivery

Non-Contact AC Voltage Tester - testo 745
Batteries.

Description

The testo 745 non-contact voltage (NCV) tester quickly checks for the presence of voltage in AC powered systems. It can be safely used up to 1000 V AC. When AC voltage is detected, the testo 745 gives indication by flashing RED LEDs and buzzing audible tones. You can easily determine the hot and neutral legs of an outlet without lengthy and risky removal of the outlet. he testo 745 NCV has a built-in Low Pass Filter which greatly reduces high frequency interference which causes false indications. The built-in LED flashlight is bright and focused to make testing simple in dark spaces. It also includes a low battery indication and is waterproof and dustproof rated per IP 67. The testo 745 is rated to CAT III 1000 V and CAT IV 600 V.
