testo 750-1 Two-pole voltage tester CAT IV 600 V, CAT III 1000 V LED, LCD
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Only 5 Piece(s) available

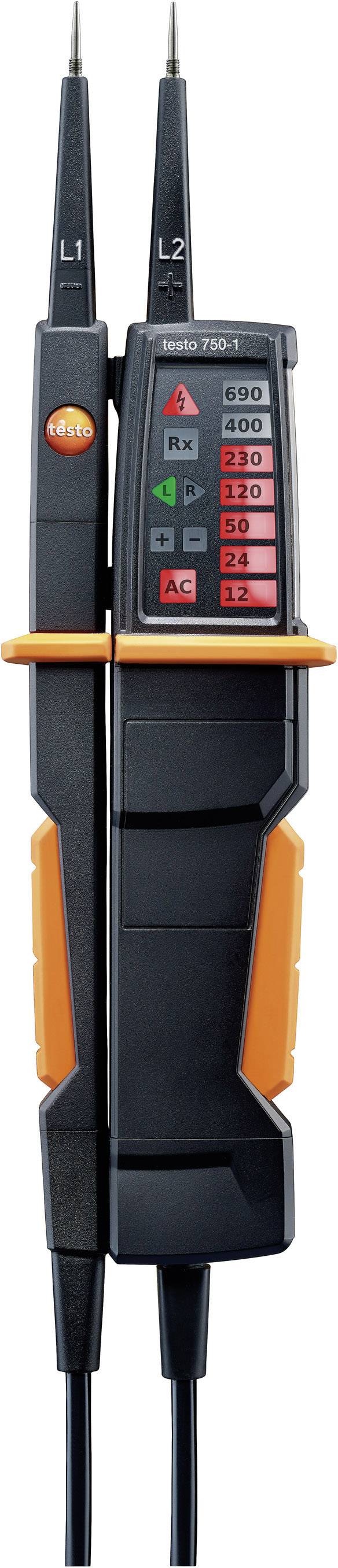

Voltage Tester - testo 750-1
Highlights & Details
- Clear, patented all-round LED display
- Robust housing with ergonomic handle and anti-slip ring
- Unique fibre-optic technology
- Protection class IP64
Technical specifications
- Measuring range Voltage: 12 ... 690 V AC/DC
- Measuring range Resistance: <500 kΩ
- Overvoltage Category: CAT IV 600 V
- CAT III 1000 V
- Protection class: IP64
- Operating temperature: -10 … +50 °C
- Dimensions: 270 x 65 x 35 mm
- Authorizations: TÜV, CSA, CE
- Standard: EN 61243-3:2010
- Product type
Two-pole voltage tester
- Reading type
Rotating magnetic field
Continuity
Phase
- Display
LED
LCD
- V AC reading range
12 up to 690 V
- V DC reading range
12 up to 690 V
- Reading category
CAT IV 600 V
CAT III 1000 V
IP64
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 35 x 65 x 270 mm
- Weight
195 g
- V AC reading range (max.)
690 V
- V AC reading range (min.)
12 V
- Voltage DC reading range (max.)
690 V
- Voltage reading range DC (min.)
12 V
- Width
65 mm
- Height
270 mm
- Length
35 mm
- Type
750-1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1436961 testo 750-1 Two-pole voltage tester CAT IV 600 V, CAT III 1000 V LED, LCD
User & Safety Instructions
User & Safety Instructions 1436961 testo 750-1 Two-pole voltage tester CAT IV 600 V, CAT III 1000 V LED, LCD
Description
The testo 750-1 voltage tester has an extremely practical all-round LED display which can easily be seen in every work position and from any location. In addition, large fibre-optic illuminators show the presence of voltage clearly and distinctly. The deep-seated anti-slip ring, the ergonomic shape of the handle and the robust housing provide greater comfort when working.
The testo 750-1 voltage tester enables voltage or de-energization on electrical circuits or systems to be determined reliably. The instrument meets the latest EN 61243-3:2010 voltage tester standard and has a safety specification according to CAT III. In addition, it is suitable for continuity testing and rotating magnetic field measurement.
The testo 750-1 voltage tester enables voltage or de-energization on electrical circuits or systems to be determined reliably. The instrument meets the latest EN 61243-3:2010 voltage tester standard and has a safety specification according to CAT III. In addition, it is suitable for continuity testing and rotating magnetic field measurement.
Features
- Clear, patented LED display
- Robust housing with ergonomic handle and non-slip ring
- DIN EN 61243-3
- Continuity testing
- Rotating magentic field test
- Single-pole phase test
Scope of delivery
- testo 745 non-contact voltage tester
- Batteries
- Measuring tip protector
- Measuring tip caps.
