Name: testo 750-2 Two-pole voltage tester CAT IV 600 V, CAT III 1000 V LED, LCD
Brand: testo
SKU: 1436962
Availability: InStock

Highlights & Details

Voltage tester - testo 750-2

Clear, patented all-round LED display
With practical torch for measuring point illumination
Including RC trigger function and vibrating load buttons
Suitable for single pole voltage testing

Technical specifications

Measuring range Voltage: 12 ... 690 V AC/DC
Measuring range Resistance: <500 kΩ
Overvoltage Category: CAT IV 600 V
CAT III 1000 V
Protection class: IP64
Operating temperature: -10 … +50 °C
Dimensions: 270 x 70 x 35 mm
Authorizations: TÜV, CSA, CE
Standard: EN 61243-3:2010

Product type: Two-pole voltage tester

Reading type: Rotating magnetic field
Continuity
FI
Phase

Display: LED
LCD

V AC reading range: 12 up to 690 V

V DC reading range: 12 up to 690 V

Load switching: 0.2 A

Reading category: CAT IV 600 V
CAT III 1000 V

: IP64

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 35 x 65 x 270 mm

Weight: 260 g

V AC reading range (max.): 690 V

V AC reading range (min.): 12 V

Voltage DC reading range (max.): 690 V

Voltage reading range DC (min.): 12 V

Width: 65 mm

Height: 270 mm

Length: 35 mm

Type: 750-2

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1436962 testo 750-2 Two-pole voltage tester CAT IV 600 V, CAT III 1000 V LED, LCD

User & Safety Instructions

User & Safety Instructions 1436962 testo 750-2 Two-pole voltage tester CAT IV 600 V, CAT III 1000 V LED, LCD

Description

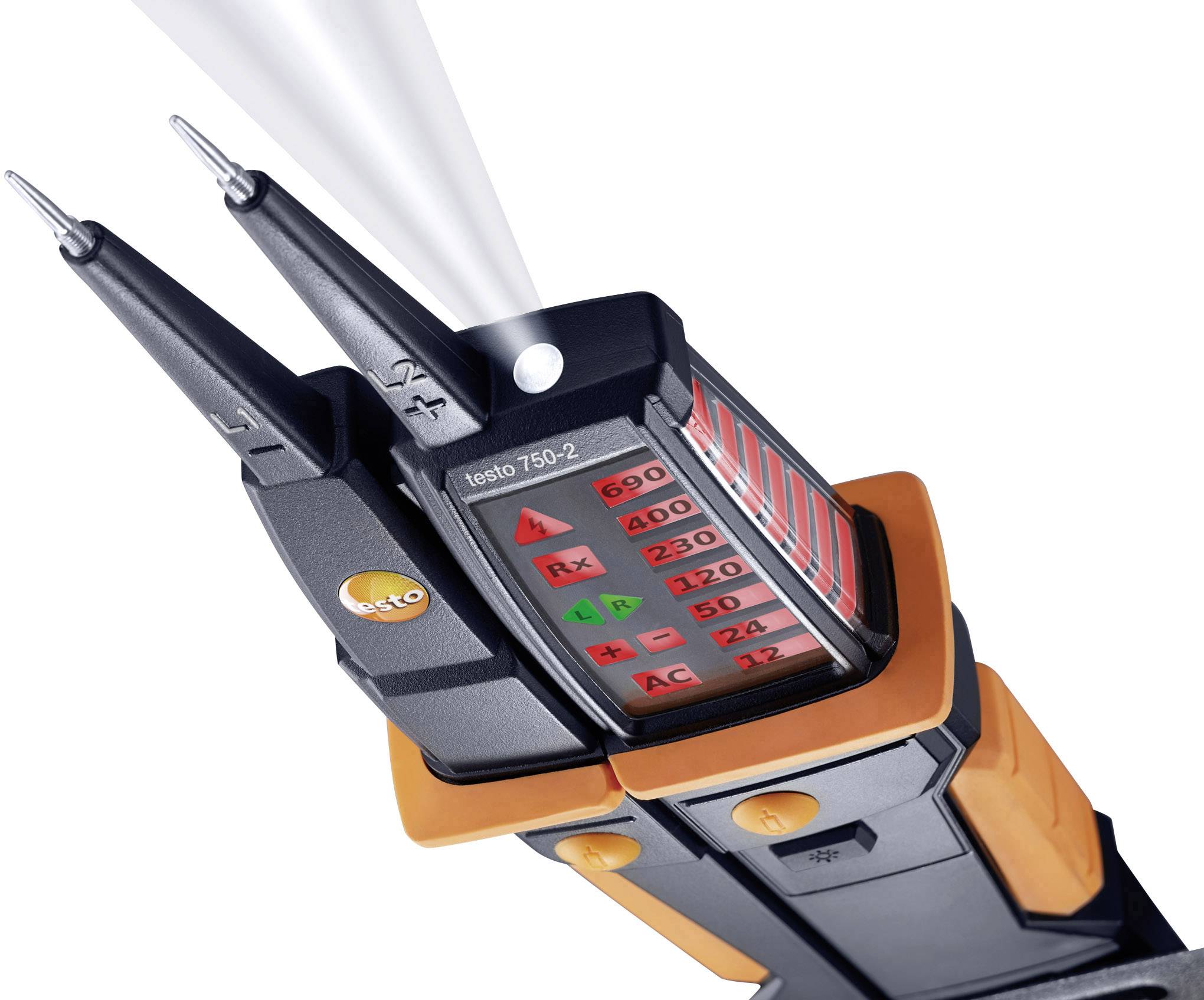

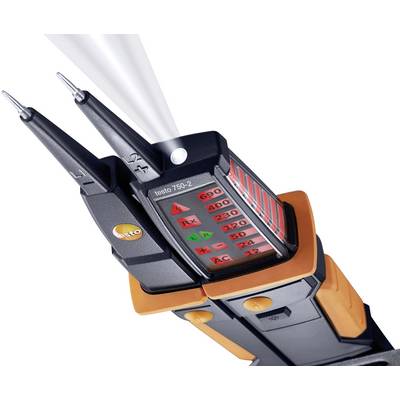

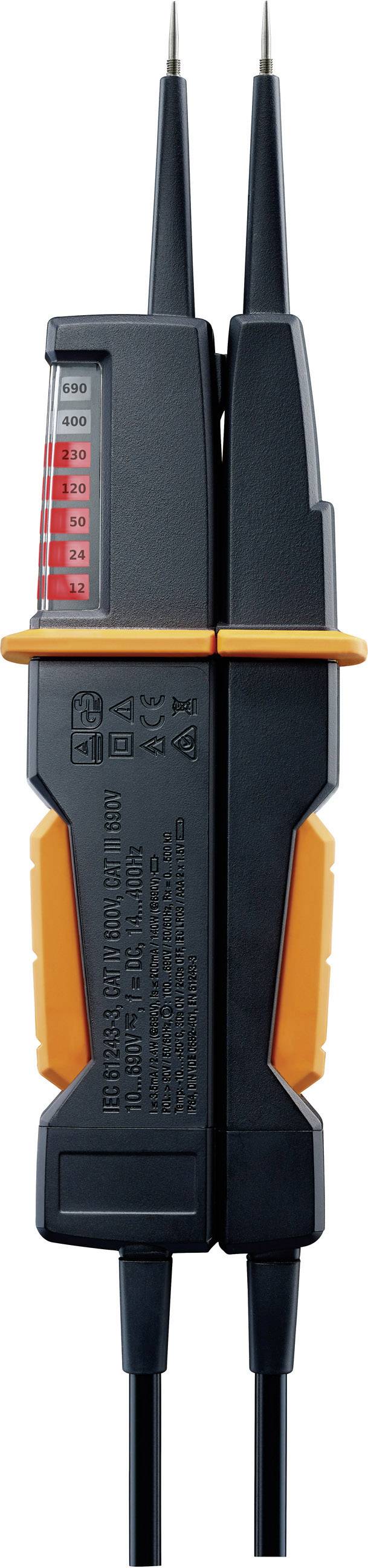

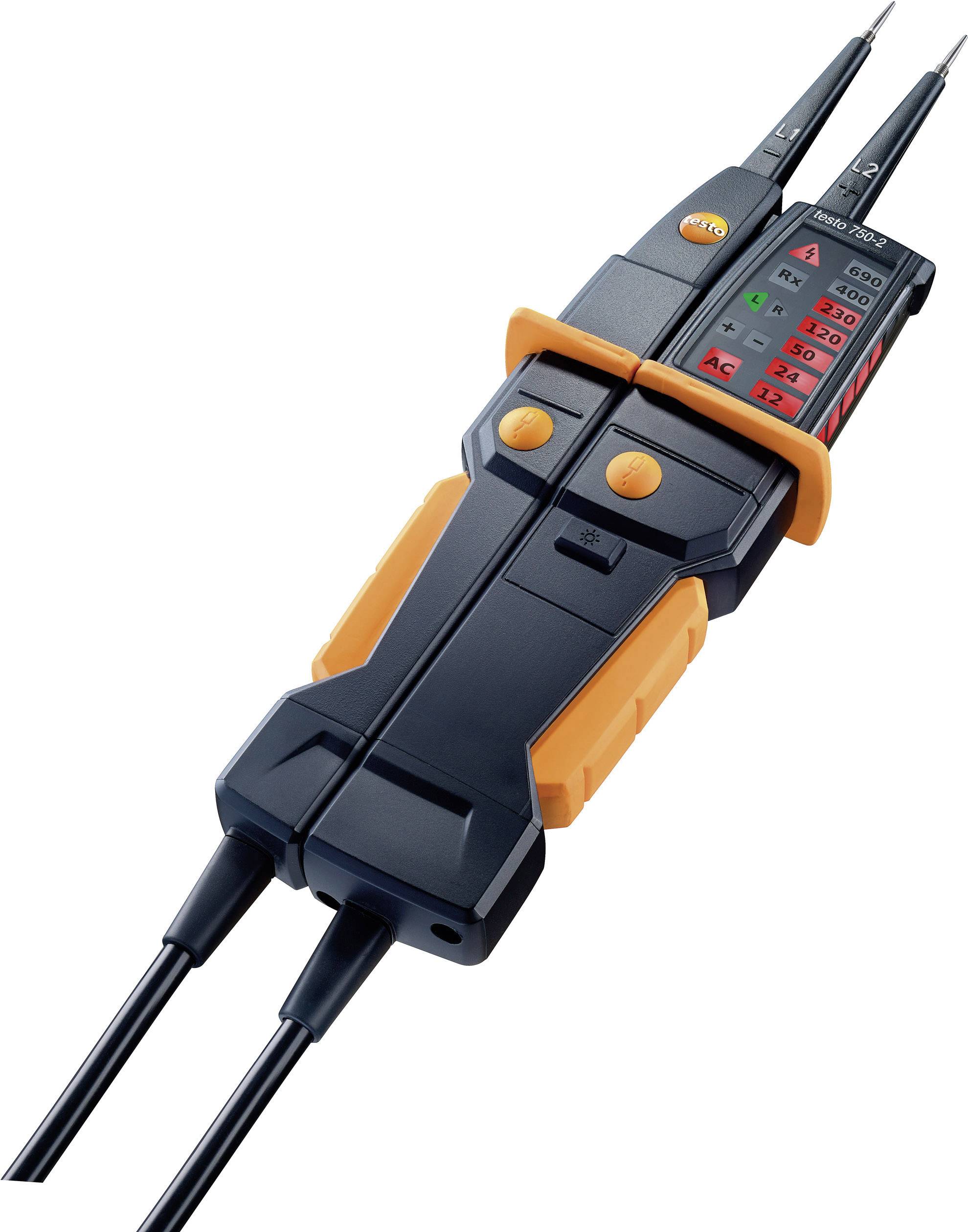

The testo 750-2 voltage tester means you can work more conveniently than ever before. Its clear, patented all-round LED display can easily be read in any position and indicates the presence of voltage clearly and distinctly with large fibre-optic illuminators. It can be held securely in your hand thanks to the deep-seated anti-slip ring and the ergonomic handle. You can easily illuminate dark measuring points using the integrated torch.
In addition to determining voltage or de-energization on electrical circuits or systems, the testo 750-2 voltage tester is also suitable for use as a continuity tester and for rotating magnetic field measurement. It also has an RC trigger function for testing residual current circuit breakers. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.

Features

Clear, patented LED display
Robust housing with ergonomic handle and non-slip ring
DIN EN 61243-3
Continuity testing
Rotating magentic field test
Single-pole phase test
RDC/FI-trigger function
Vibrating Load buttons
Measuring point illumination

Scope of delivery

testo 750-2 voltage tester
Batteries
Measuring tip protector
Measuring tip caps.

Description

The testo 750-2 voltage tester means you can work more conveniently than ever before. Its clear, patented all-round LED display can easily be read in any position and indicates the presence of voltage clearly and distinctly with large fibre-optic illuminators. It can be held securely in your hand thanks to the deep-seated anti-slip ring and the ergonomic handle. You can easily illuminate dark measuring points using the integrated torch.
In addition to determining voltage or de-energization on electrical circuits or systems, the testo 750-2 voltage tester is also suitable for use as a continuity tester and for rotating magnetic field measurement. It also has an RC trigger function for testing residual current circuit breakers. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.
