Stroke drawing/circuit diagram

Remote control for model building with control lever, display, and cable connections. Shown is the internal view of the electronics.

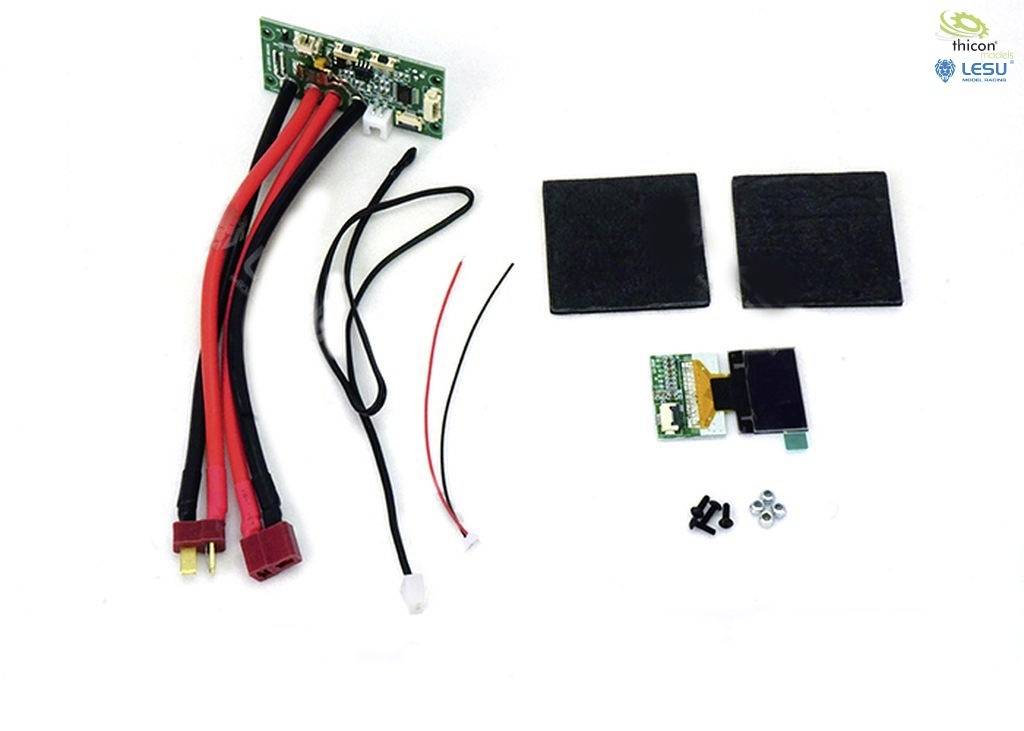

'Close-up of RC model accessories with various cables and connectors, suitable for technical or electronic tinkering.'

The image shows an electrical circuit diagram with cables and components. Notes: 'Pay particular attention', 'FPC cable'. Voltage: 7.2V-14.8V.

'This diagram shows a control module for lithium battery cells with buttons A and B. It contains symbols for voltage, current, temperature, and capacity.'

1/6

Stroke drawing/circuit diagram

Thicon Models

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

Report legal concerns

Technical specifications

Voltage 7.4-14.8 VCurrent measurement: Max. 50ATemperature 0-100°C

Product type: Graphics mini LCD

Scale: 1:14

Compatible with (details): 36t excavator 2390658 (58300)

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2614490 Thicon Models 58325 1:14 Graphics mini LCD 1 pc(s)

Description

Mini graphic LCD with complete electronics.The LCD can display the current battery voltage, the charging status in %, the current power consumption and the temperature!

This text is machine translated.

Scope of delivery

Mini-LCD with measurement electronicsUser manual.

Hints

The kit is suitable for the No. 58126 and 58710 backhoe interior fittings, or in all other self-assembly installations.
