Name: TOOLCRAFT TO-8958 Soldering/desoldering station Digital 370 W +100 - +500 °C
Brand: TOOLCRAFT
SKU: 3778406
Availability: BackOrder

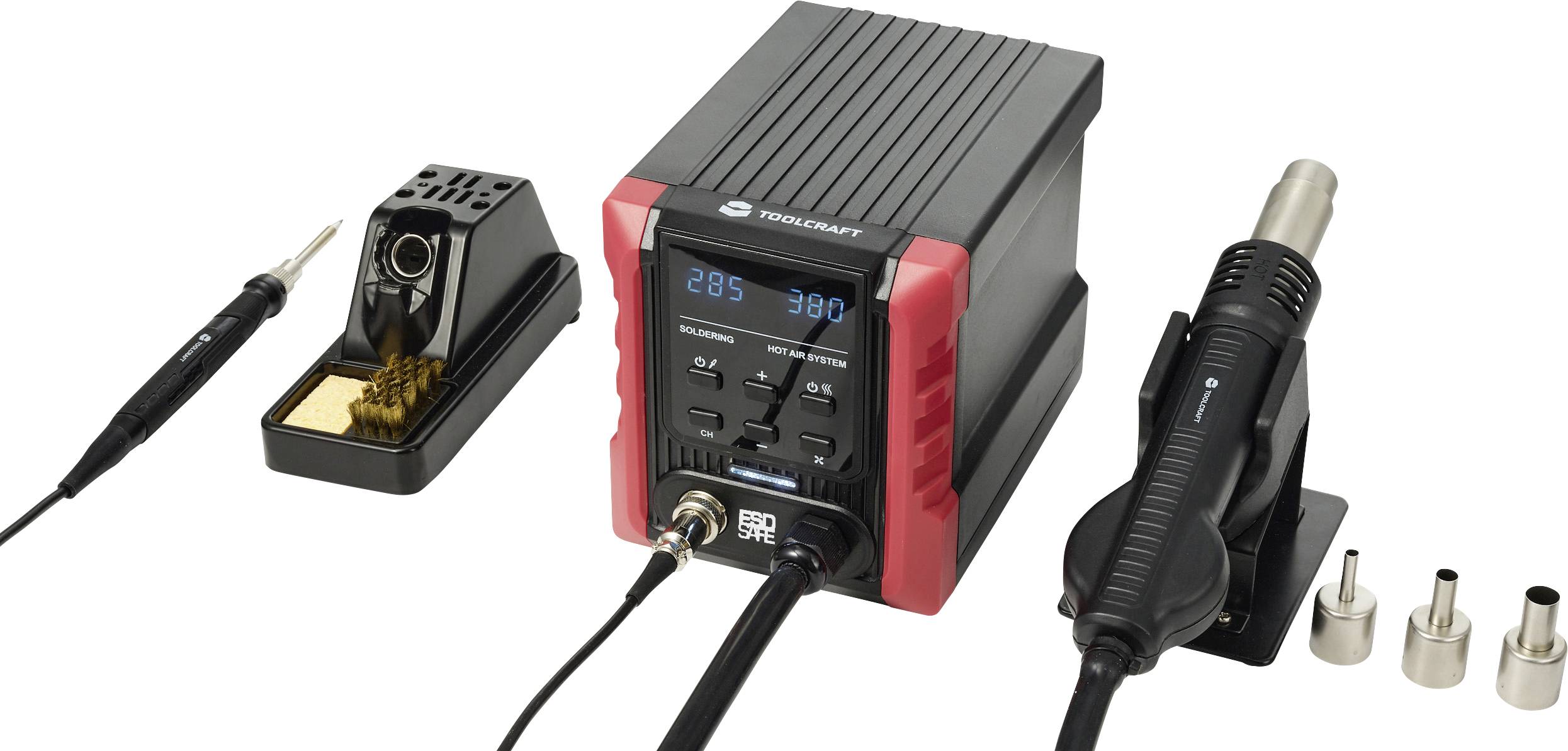

Portable soldering iron station with digital temperature display, pen-style iron, tip cleaner, and interchangeable soldering tips on a white background

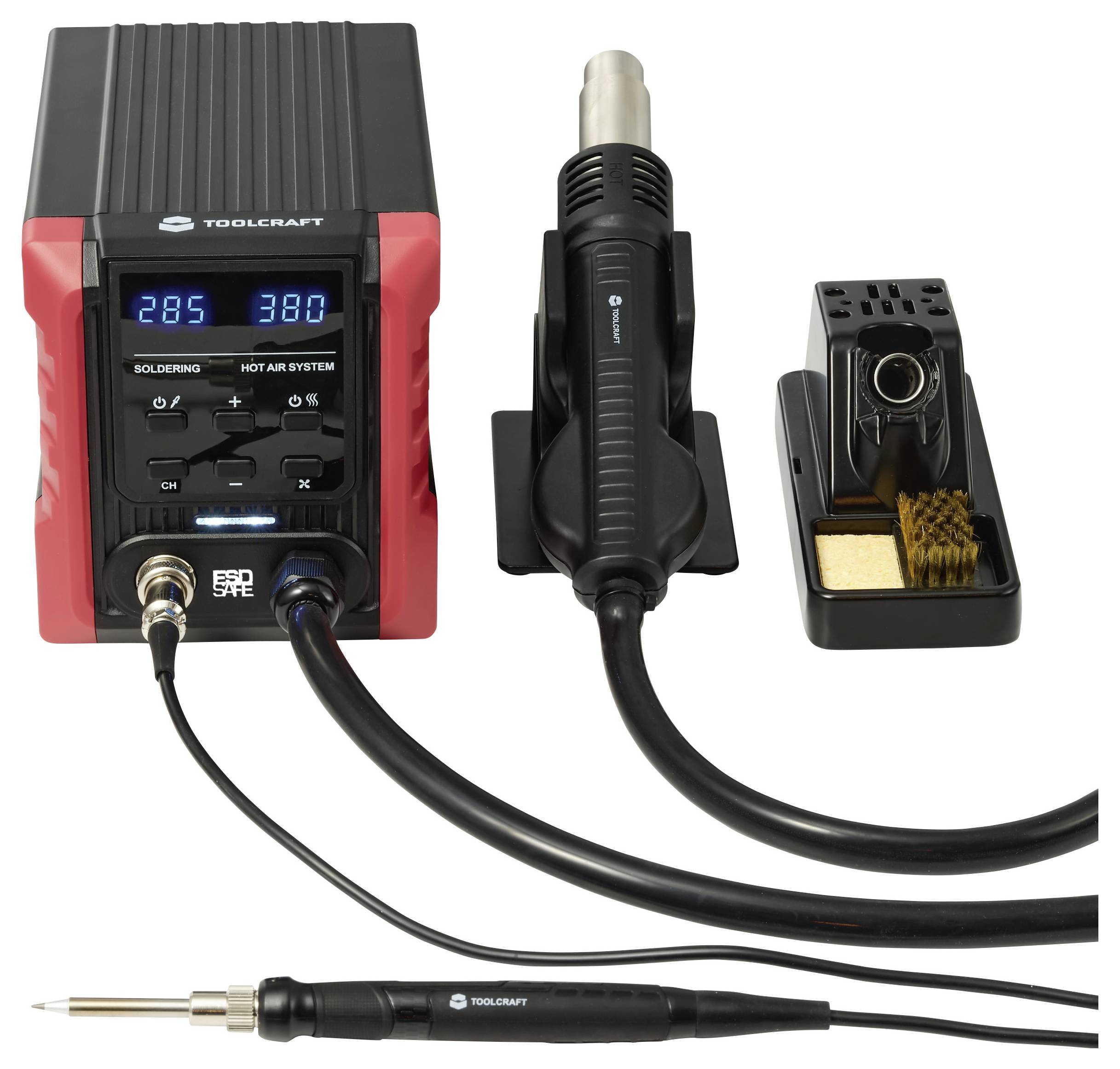

Toolcraft soldering and hot air rework station with digital display, hot air gun, soldering iron, and tip cleaner on a white background.

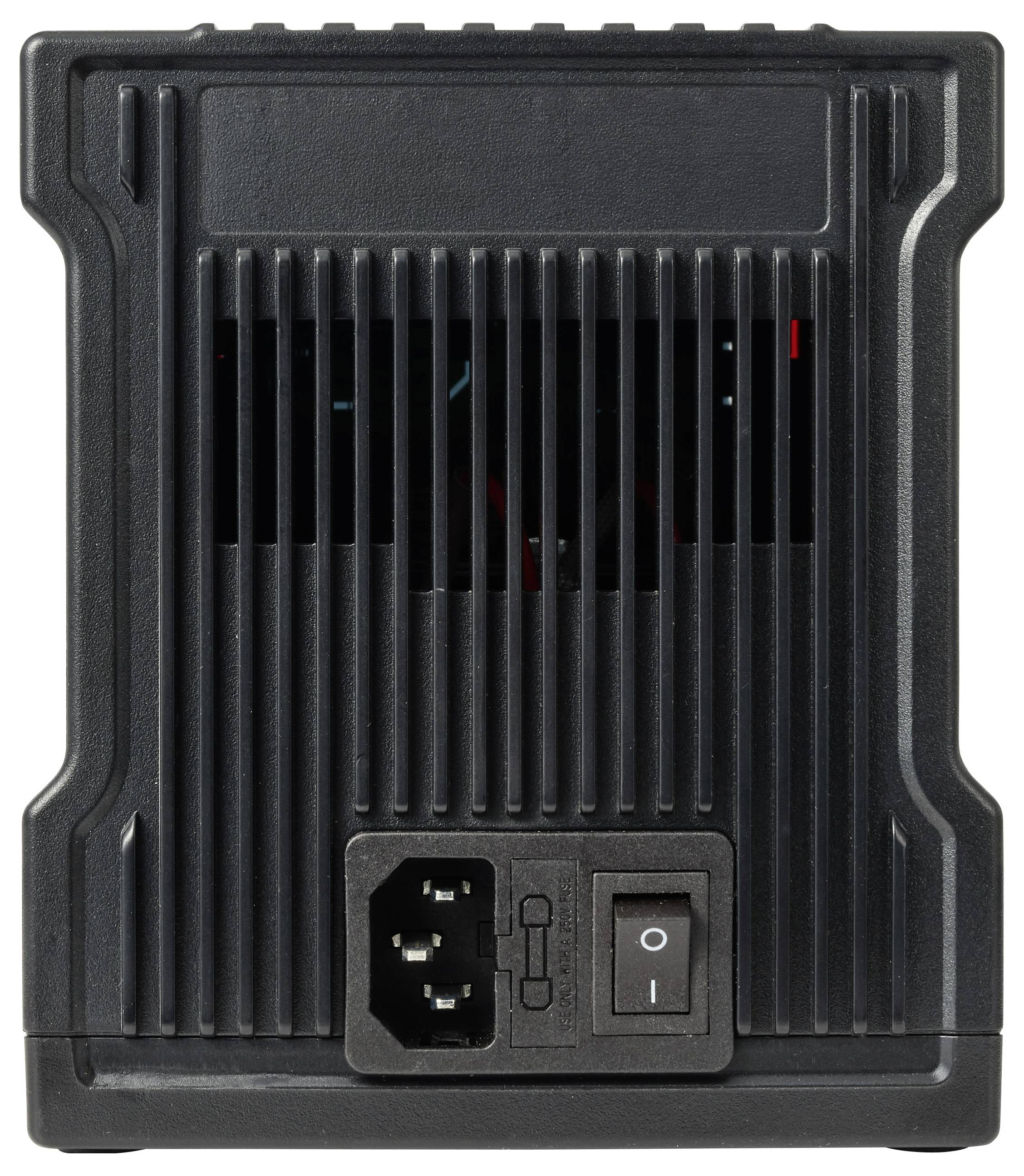

Black rectangular electronic device with front cooling vents, AC power inlet, and on/off switch on the lower front panel.

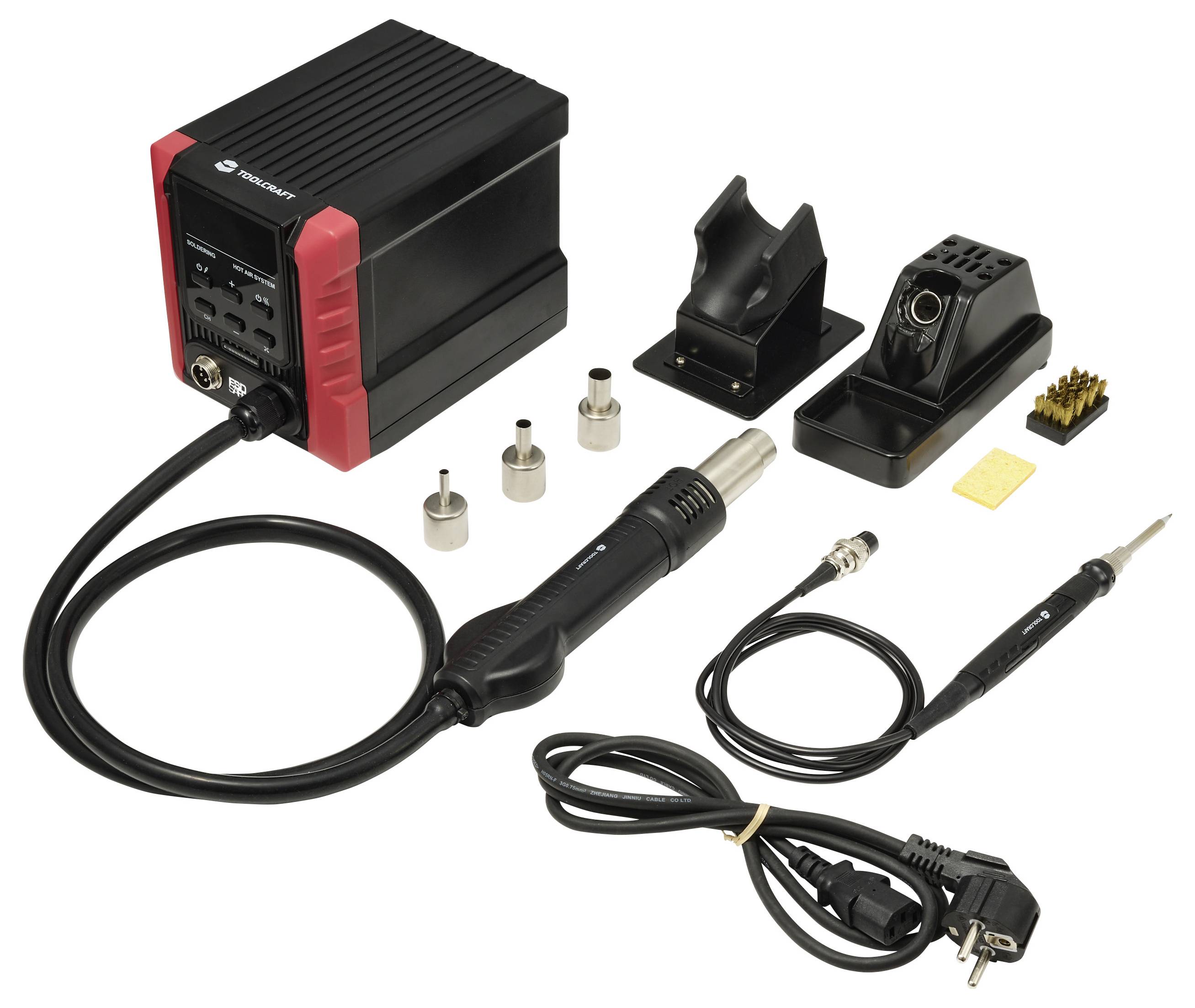

Electric soldering station kit with control unit, iron, stand, tips, cleaning pad, and power cord on a white background.

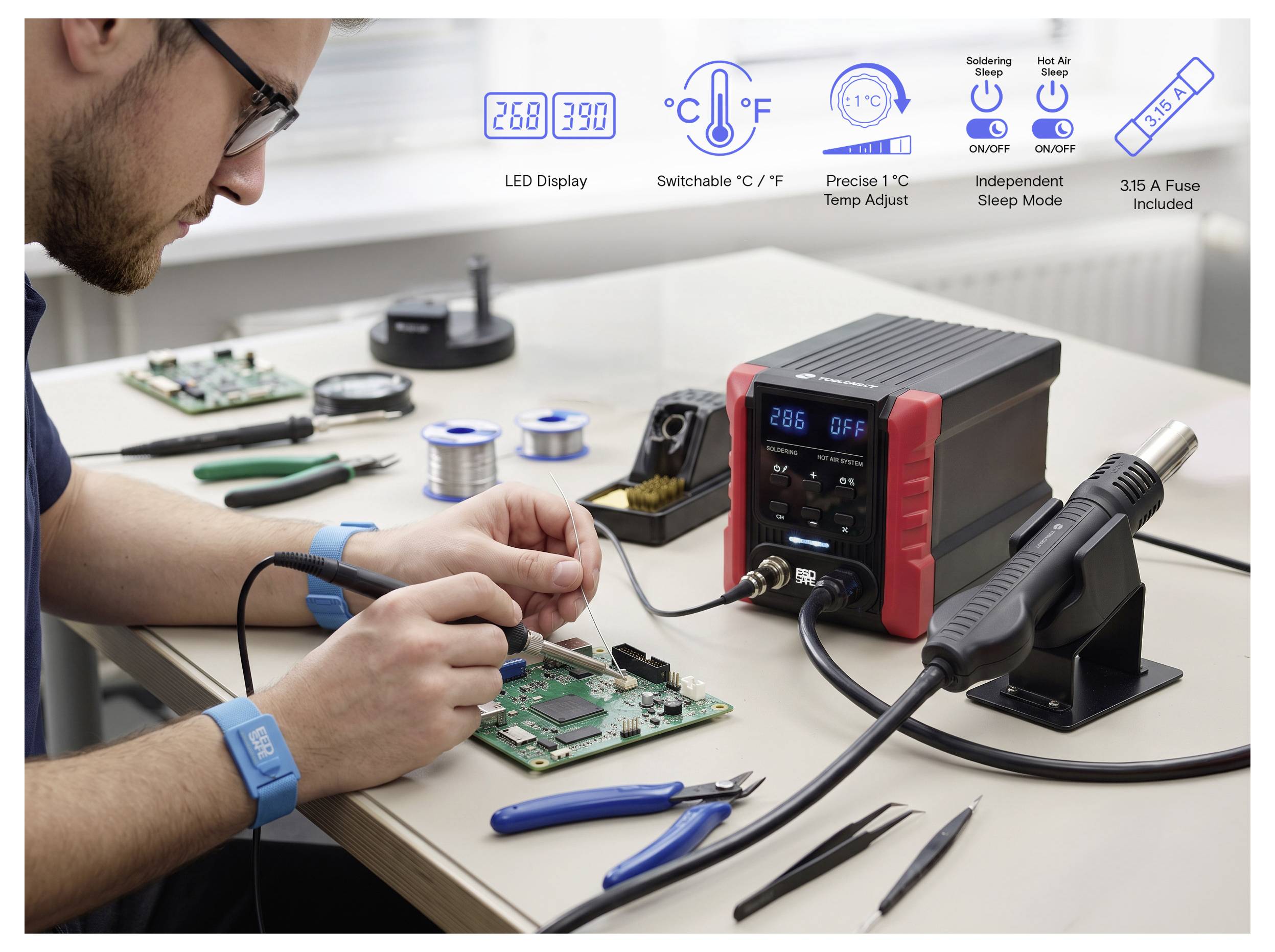

Technician uses a digital soldering station with LED display and handpiece to repair a circuit board on a workbench.

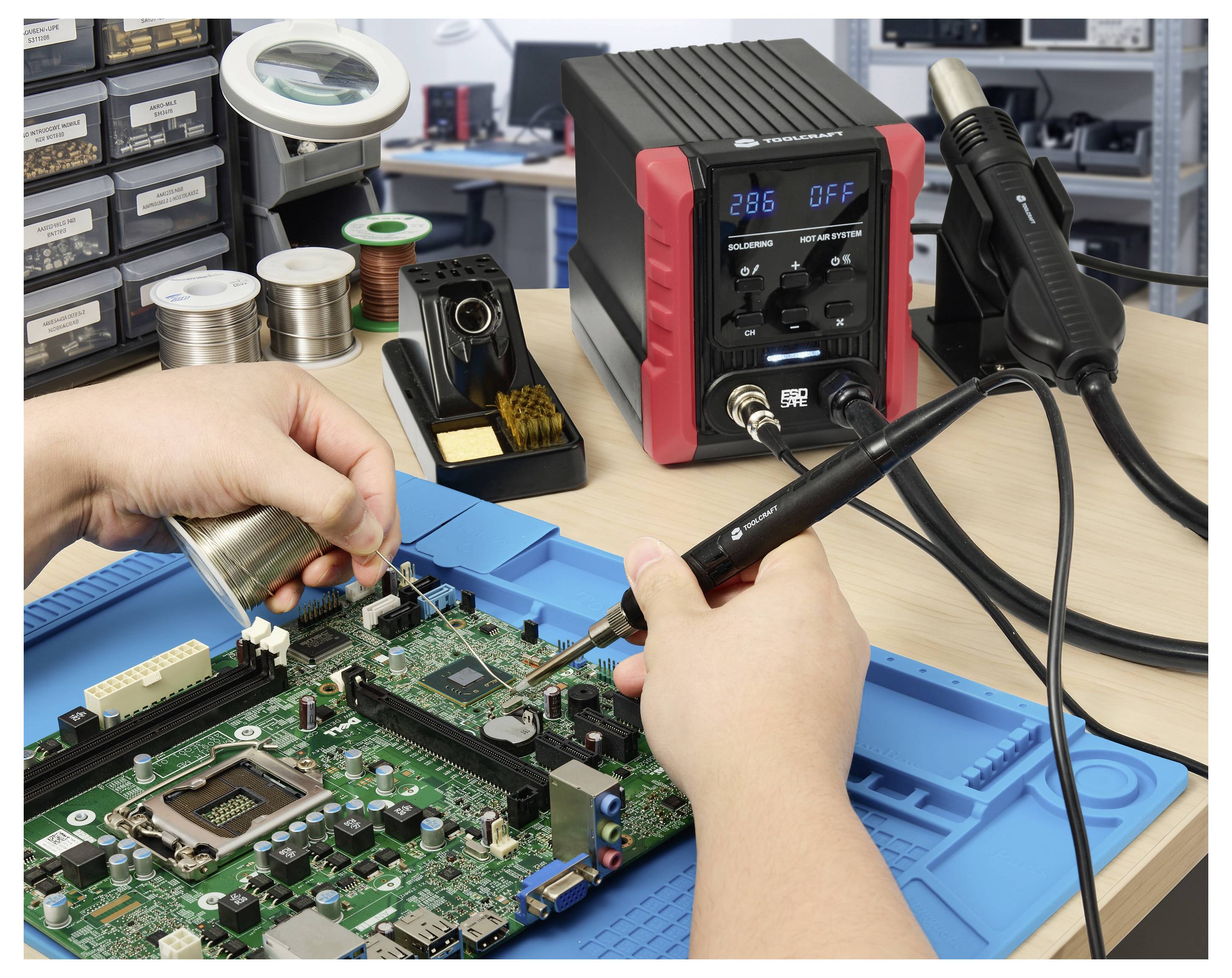

Hands soldering a circuit board on a blue repair mat, with a soldering station and tools on the workbench in an electronics workshop.

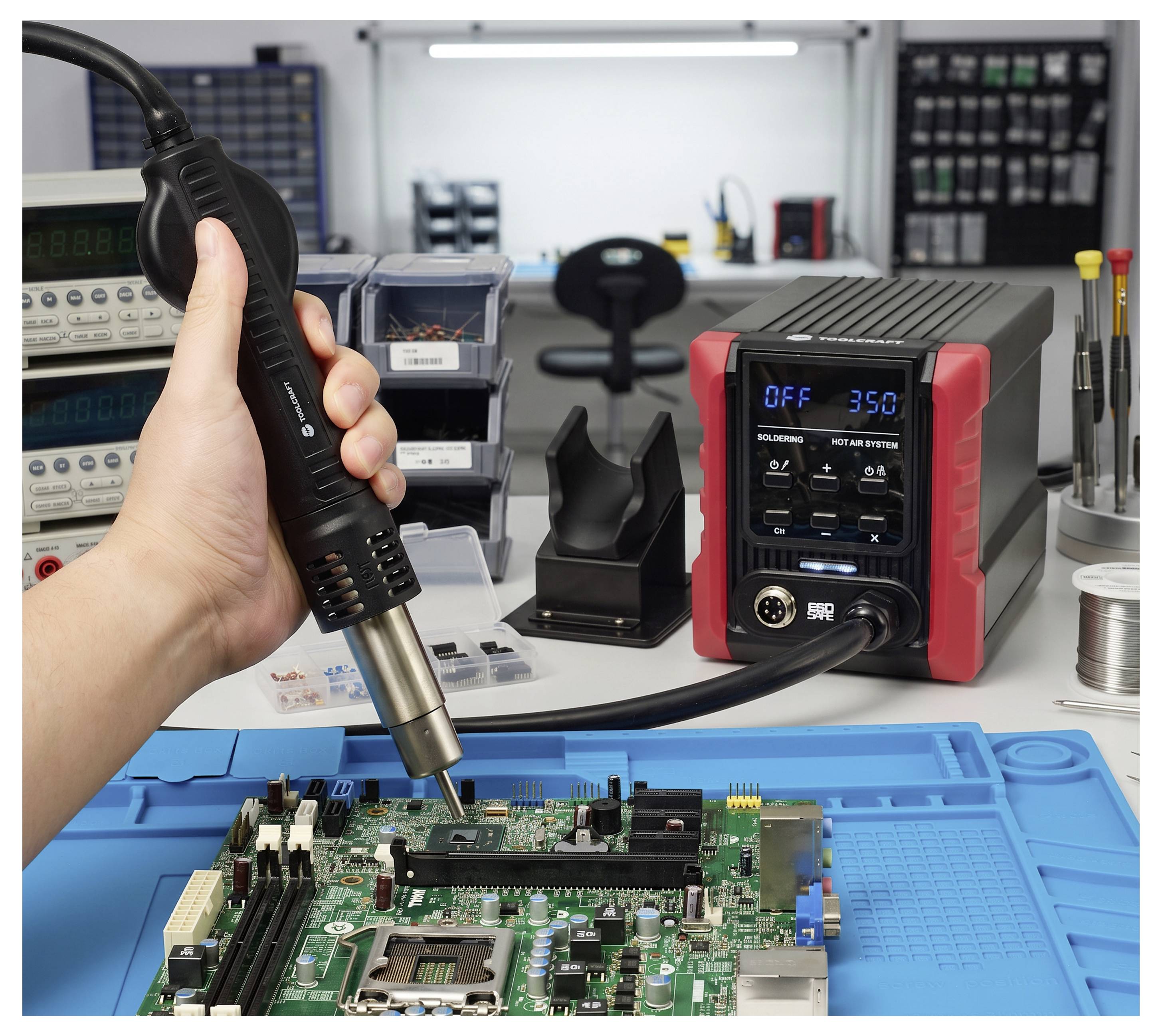

Hand holding a hot-air rework tool to repair a circuit board on a workbench, with a soldering station and electronics tools in the background.

1/7

Our service for you

Datasheet (PDF)

Dispatches on Wed 16 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TOOLCRAFT TO-8958 Soldering/Desoldering Station 300 W 100–500 °C

LED display
Switchable between °C and °F
Precise 1 °C temperature adjustments
Independent sleep mode for soldering iron and hot air systems
3.15 A fuse included

Technical specifications

Soldering iron power: 70 W
Operation temperature: 160 to 480 °C
Soldering iron connector: 5-pin aviation plug
Soldering iron dimensions: OD 17.5 mm x L 220 mm
Soldering iron weight: 89 g
Cable length: 1.15 m
Hot air gun power: 300 W
3x nozzles (diameter): Ø 5 mm, Ø 8 mm, Ø 12 mm
Operation temperature: 100 to 500 °C
Air volume levels: 1 to 10
Hot air gun connector: Non-detachable cable
Hot air gun dimensions (L x H x W): 237 x 40 x 57 mm
Cable length: 1.0 m

Product type: Soldering/desoldering station

Max. power: 370 W

Power supply (LOV): mains-powered

Max. temperature: +500 °C

Display: Digital

Dim: (L x W x H) 200 x 148 x 128 mm

Max. air volume: 24 l/min

Preheat time: Soldering iron 8 s.
Hot air gun: 20 s to 200 °C, 60 s to 350 °C, 120 s to 500 °C.

Operating voltage: 220 V AC
240 V AC

Weight: 3.4 kg

Width: 148 mm

Height: 128 mm

Length: 200 mm

Min. temperature: +100 °C

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3778406 TOOLCRAFT TO-8958 Soldering/desoldering station Digital 370 W +100 - +500 °C

User & Safety Instructions

User & Safety Instructions 3778406 TOOLCRAFT TO-8958 Soldering/desoldering station Digital 370 W +100 - +500 °C

Warranty Terms

Warranty Terms 3778406 TOOLCRAFT TO-8958 Soldering/desoldering station Digital 370 W +100 - +500 °C

Description

The mains-operated TOOLCRAFT soldering and desoldering station TO-8958 combines a 70 W soldering iron and a 300 W hot-air system in a compact device. With a total power of 370 W, the station is aimed at professional users in the electronics manufacturing and maintenance.

Precise temperature control
Via the digital LED-display the temperature can be set exactly in 1-°C steps in the range of 100 °C to 500 °C and switch-over to °F. An independent sleep mode for both systems supports efficient operation.

Heats up quickly
The soldering iron reaches its operating temperature within 8 seconds. The hot air blower heats up in 20 seconds to 200 °C, in 60 seconds to 350 °C and in 120 seconds to 500 °C, and WAS enables fast work processes without long waiting time.

Extensive features
The station offers air volume levels from 1 to 10 with a maximum air volume of 24 l/min. In addition to the equipment and stands, the delivery package also includes three different hot air nozzles (5 mm, 8 mm, 12 mm), a sponge and a copper wire sponge.

This text is machine translated.
