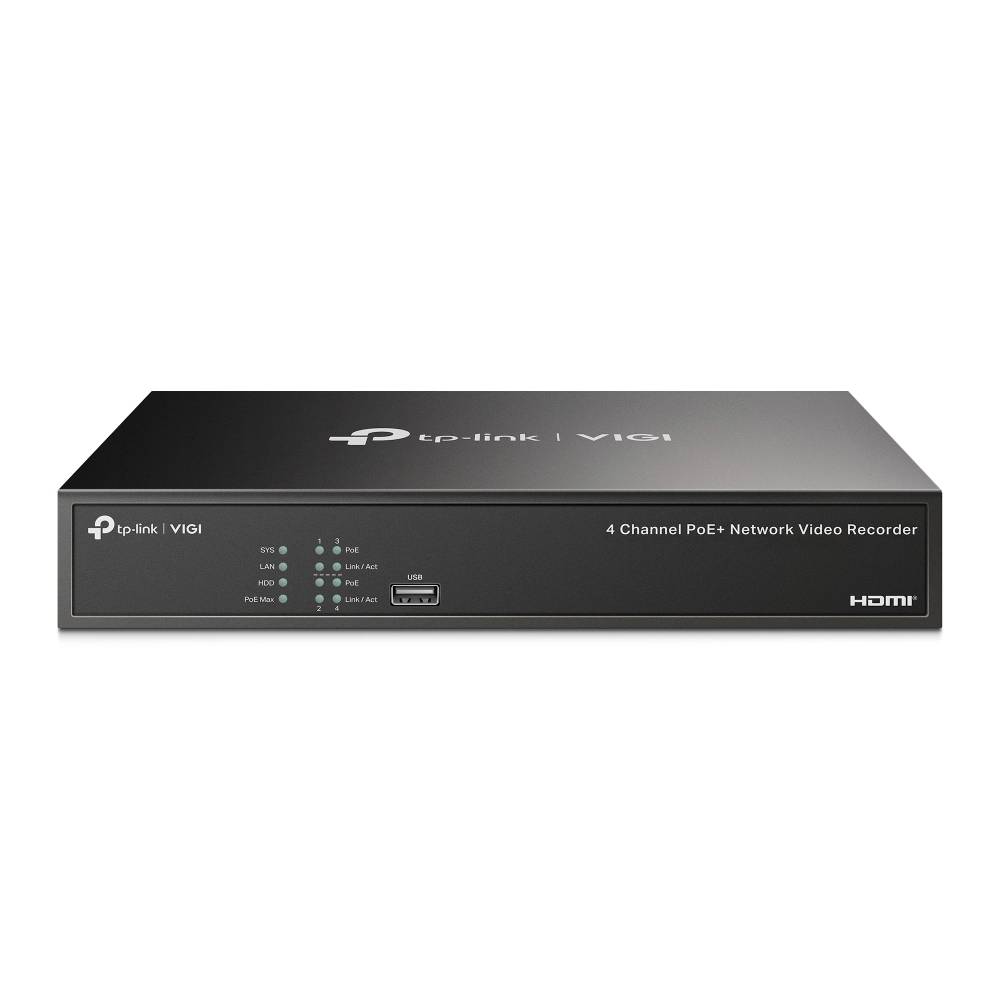

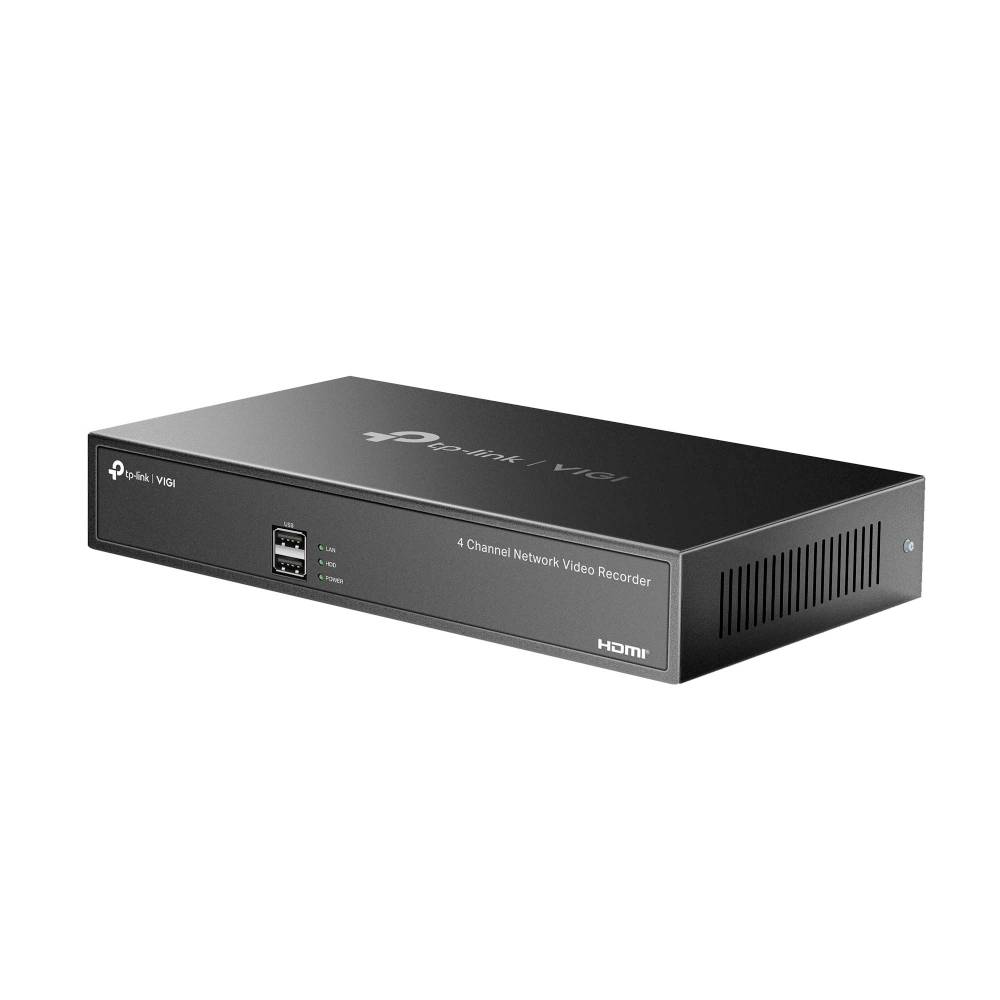

TP-LINK VIGI NVR1004H VIGI NVR1004H Corded IP Network video recorder
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Corded IP-TP-LINKVIGI NVR1004H;VIGI NVR1004HIndoors
Highlights & Details
- H.265+/H.265/H.264+/H.264
- Up to 8MP resolution
- Decoding capability/8-ch @2MP
- 80 Mbps incoming bandwidth(up to 4 channels)
- 1× SATA interface (up to 10 TB)
- 1× 100 Mbps ports
- 2× USB 2.0
- 12V DC / 1.5 A
- 1× VGA port & 1× HDMI port (Up to 4K) (Synchronous outputs)
Technical specifications
- 4-channel IP video input
- Bandwidth: 80 Mbps in, 60 Mbps out
- HDMI output resolutions 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA output resolutions 1920 × 1080/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Decode capability: 2 channels at 8 MP (25fps), 4 channels at 4 MP (25fps), 8 channels at 2 MP (25fps)
- Supported recording resolutions: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

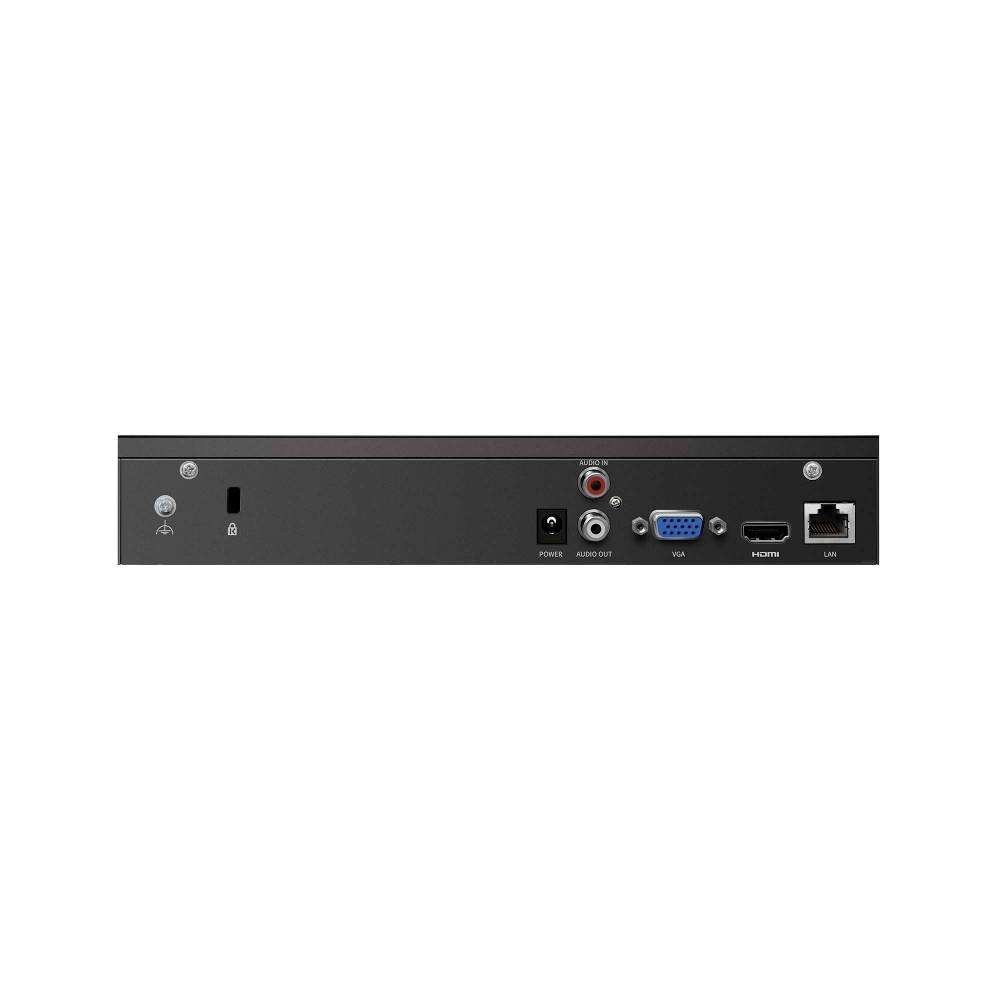

- Interfaces: 1× SATA-interface (for 1 HDD with up to 10 TB capacity, hard disk separately available), 1× RJ-45 Ethernet-port (10/100 Mbps), 2× USB 2.0, 1× Audio-In (RCA), 1× Audio-Out (RCA), 1× Reset button
- Network protocol: UPnP, NTP, SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPV4, ARP
- Interoperability: ONVIF Profile S, CGI
- Product type
Network video recorder
- Power supply
12 V / DC
- App compatibility
Yes
- Transfer type
Corded
- Used at
Indoors
- Width
246.2 mm
- Height
45.00 mm
- Depth
148.2 mm
- Dim
(W x H x D) 246.2 x 45.00 x 148.2 mm
- Weight
590 g
- Signal standard
IP
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3812374 TP-LINK VIGI NVR1004H VIGI NVR1004H Corded IP Network video recorder
User & Safety Instructions
User & Safety Instructions 3812374 TP-LINK VIGI NVR1004H VIGI NVR1004H Corded IP Network video recorder
Description
Reliable 4-channel network video recorder for central management and storage of up to four IP cameras in a professional security network. The device offers a decoding power of up to 4 channels at 2 megapixels (or 1 channel at 8 megapixels) and saves significantly memory space and network resources without loss of quality through the H.265+ compression. A SATA hard-disk slot is available for archiving, which supports storage media with a capacity of up to 10 TB. The integration is done via a standard RJ45 network connection, while the administration is implemented flexibly and independent of place via the VIGI management software, the web browser or the mobile APP.
This text is machine translated.
This text is machine translated.
Features
- Central camera management
- Seamless 24/7-long-time recording
- Space saving H.265+ coding
- Flexible remote access via APP and software
- ONVIF protocol support
Scope of delivery
- Inclusive of power supply with power cable
- USB mouse
- 19" rack holder
- Screw
- Rubber buffer for housing
- User manual.
- HDD-cable
- CCTV sign
Hints
Hard disk not included
System requirements
- Windows, iOS, Android
