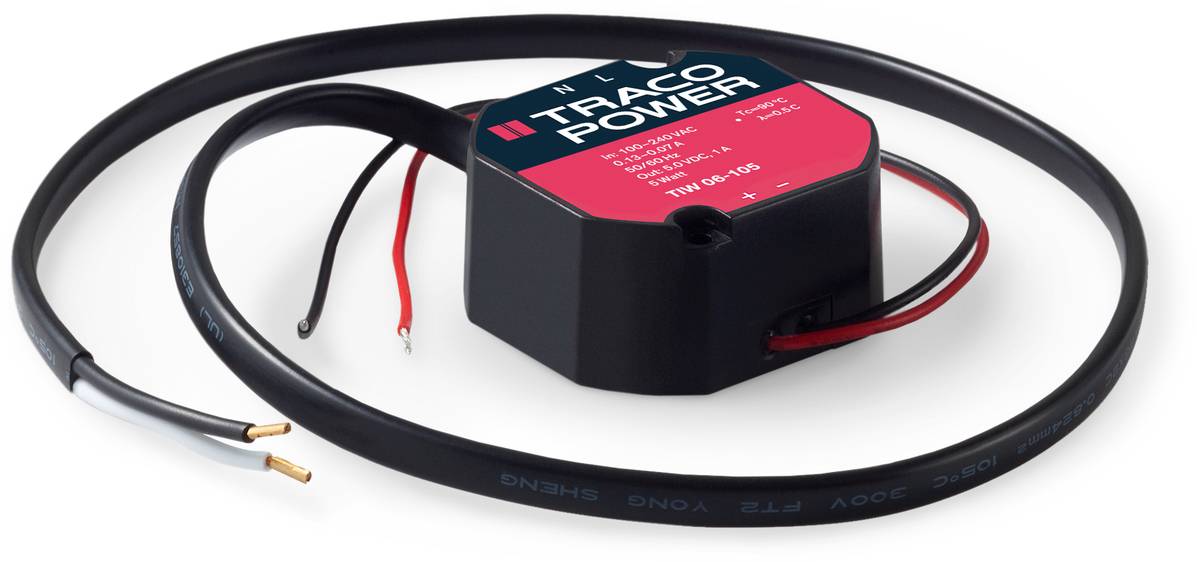

TracoPower TIW 06-106 SMPSU 6 V DC 1 A 6 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 46.99 / piece)
€ 46.99
incl. VAT
14-day return policy included
Highlights & Details
Mounting power plug TIW 06-106S
- Output 6 V DC / 1 A
- Power 6 W
- Open end cable
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Min. input voltage
93 V AC
- Dim
(W x H x D) 51 x 48 x 24 mm
- Output voltage (max.)
6 V DC
- Connection
Open end cable
6 W
- No. of outputs
1 x
- Output voltage 1
6 V DC
- Output current 1
1 A
- Type
closed
- Weight
80 g
- Type
Synchronised
- Width
51 mm
- Height
48 mm
- Type
TIW 06-106
- Depth
24 mm
6 W
- Connection
Strands
- PFC
No
- Input voltage
93 - 264 V AC
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 512633 TracoPower TIW 06-106 SMPSU 6 V DC 1 A 6 W
Datasheet 512633 TracoPower TIW 06-106 SMPSU 6 V DC 1 A 6 W
User & Safety Instructions
User & Safety Instructions 512633 TracoPower TIW 06-106 SMPSU 6 V DC 1 A 6 W
Warranty Terms
Warranty Terms 512633 TracoPower TIW 06-106 SMPSU 6 V DC 1 A 6 W
Description
Stabilised power supply unit with wire connection to input and output. Through the compact and encapsulated housing, the installation in flush-mounted sockets or the structure of surfaces, it is very easy. Ideal for building automation, security systems and control equipment.
This text is machine translated.
This text is machine translated.
Features
- Operating temperature: -25 to +50 °C
- Short-circuit, overload and excess temperature
- Safety according to EN 60950-1 and EN 60335-1
- Protection class 2
- Housing material according to UL94V-0.
