Buy TracoPower TOP 200-115 SMPSU 15 V DC 13 A 200 W

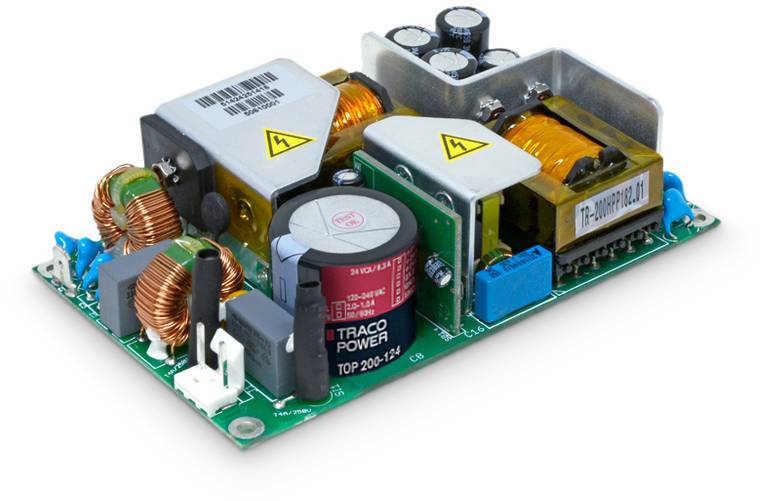

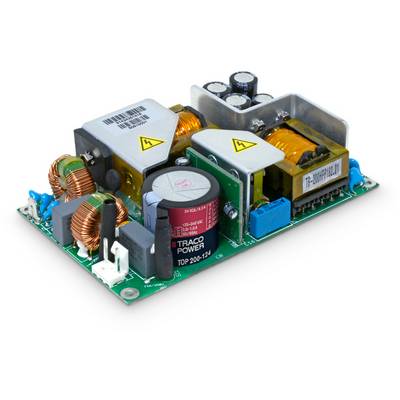

Electronic power supply unit on printed circuit board with capacitors, inductors and transformers.

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 138.65 / piece)

€

Report legal concerns

Highlights & Details

TracoPower TOP 200-115 SMPSU 15 V DC 13 A 200 W

13 A
200 W
Highest power density in industry standard 7.62 x 12.70 cm (3 x 5")
Switching power supplies 200 W with convection cooling
Connector with connector assembly (Molex)
Universal power input 85-264 V/AC
Harmonic limits according to EN 61000-3-2
Secured against reverse fed back
Class I and II

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 13 A

Output current (max.) - rounded: 13 A

Min. input voltage: 85 V AC

Dim: (L x W x H) 127 x 76.2 x 34 mm

Output voltage (max.): 15 V DC

: 200 W

No. of outputs: 2 x

Output current 1: 13 A

Type: open

Weight: 315 g

Width: 76.2 mm

Height: 34 mm

Length: 127 mm

Type: TOP 200-115

: 200 W

Connection: Connector (Molex)

PFC: Yes

Input voltage: 85 - 264/120 - 240 V AC

Documents & Downloads

Datasheet

Datasheet 514673 TracoPower TOP 200-115 SMPSU 15 V DC 13 A 200 W

Warranty Terms

Warranty Terms 514673 TracoPower TOP 200-115 SMPSU 15 V DC 13 A 200 W

Description

The highest power density in the industry standard 76.2 x 127 mm (3.0 " x 5.0 " ) is the outstanding feature. The power unit can be operated with an output power of up to 200 W with convection cooling in an industrial operating temperature range of -25 to +70 ° C. This feature is achieved by advanced technology and an extremely high efficiency, which makes the use of an additional cooling fan unnecessary.
