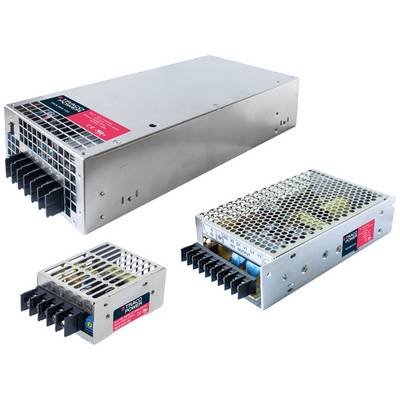

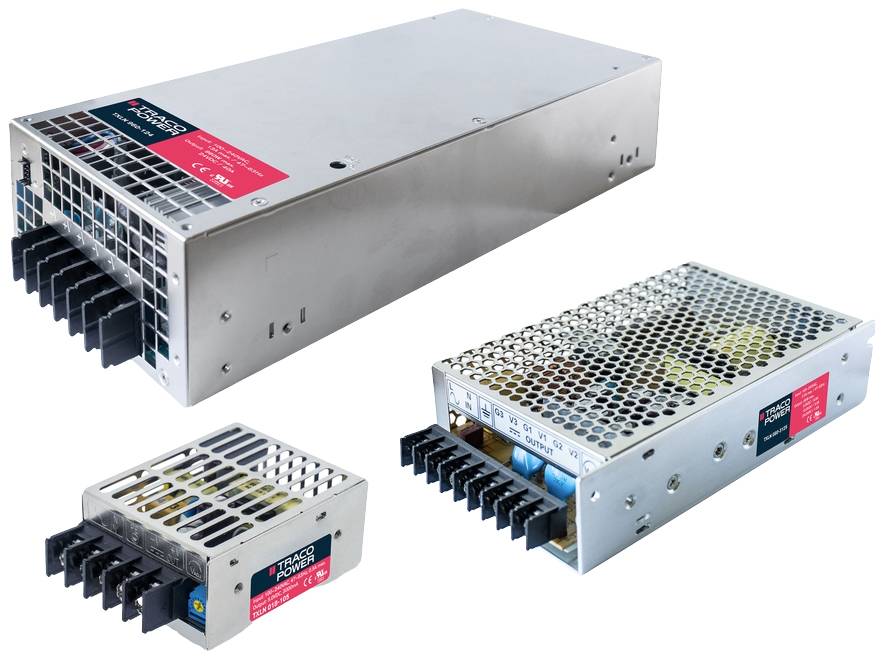

TracoPower TXLN 060-103 AC/DC PSU module (+ enclosure) 3.3 V DC 12 A 40 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 48.73 / piece)
€
Highlights & Details
AC/DC PSU Components
- Output 3.3 V DC / 12 A
- Power 40 W
- Screw terminal
Technical specifications
- Product type
AC/DC PSU module (+ enclosure)
- Input voltage (max.)
264 V AC
- Max. output current
12 A
- Output current (max.) - rounded
12 A
- Min. input voltage
88 V AC
- Dim
(L x W x H) 110.8 x 82.0 x 28.0 mm
- Output voltage (max.)
3.3 V DC
- Connection
Screw terminal
40 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
50 °C
- Operating temperature (min.)
-20 °C
- Weight
340 g
- Width
82.0 mm
- Height
28.0 mm
- Length
110.8 mm
- Type
TXLN 060-103
- MTBF
335000 h
- Output current (min.)
0 mA
- Output voltage (min.)
3.3 V DC
- PFC
No
