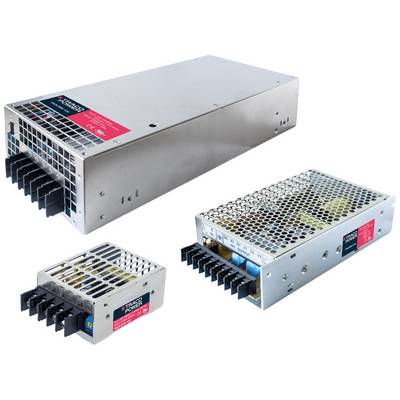

TracoPower TXLN 110-115 AC/DC PSU module (+ enclosure) 15 V DC 7.3 A 110 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 60.50 / piece)
€
Highlights & Details
AC/DC PSU Components
- Output 15 V DC / 7.3 A
- Power 110 W
- Screw terminal
Technical specifications
- Product type
AC/DC PSU module (+ enclosure)
- Input voltage (max.)
264 V AC
- Max. output current
7.3 A
- Output current (max.) - rounded
7.3 A
- Min. input voltage
88 V AC
- Dim
(L x W x H) 159.0 x 95.0 x 38.0 mm
- Output voltage (max.)
15 V DC
- Connection
Screw terminal
110 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
50 °C
- Operating temperature (min.)
-20 °C
- Weight
460 g
- Width
95.0 mm
- Height
38.0 mm
- Length
159.0 mm
- Type
TXLN 110-115
- MTBF
284000 h
- Output current (min.)
0 mA
- Output voltage (min.)
15 V DC
- PFC
Yes
