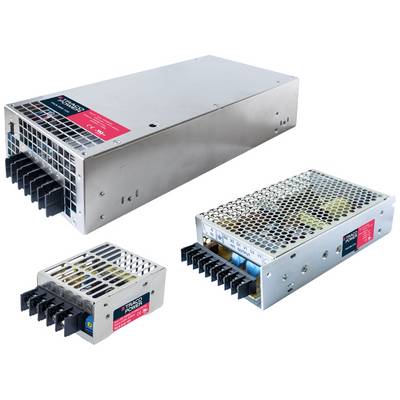

TracoPower TXLN 150-112 AC/DC PSU module (+ enclosure) 12 V DC 12.5 A 150 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 72.26 / piece)
€
Highlights & Details
AC/DC PSU Components
- Output 12 V DC / 12.5 A
- Power 150 W
- Screw terminal
Technical specifications
- Product type
AC/DC PSU module (+ enclosure)
- Input voltage (max.)
264 V AC
- Max. output current
12.5 A
- Output current (max.) - rounded
12.5 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 198.15 x 99.0 x 30.0 mm
- Output voltage (max.)
12 V DC
- Connection
Screw terminal
150 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
50 °C
- Operating temperature (min.)
-30 °C
- Weight
560 g
- Width
99.0 mm
- Height
30.0 mm
- Length
198.15 mm
- Type
TXLN 150-112
- MTBF
162800 h
- Output current (min.)
0 mA
- Output voltage (min.)
12 V DC
- PFC
Yes
