Buy TracoPower TXLN 750-148 AC/DC PSU module (+ enclosure) 48 V DC 15.8 A 750 W

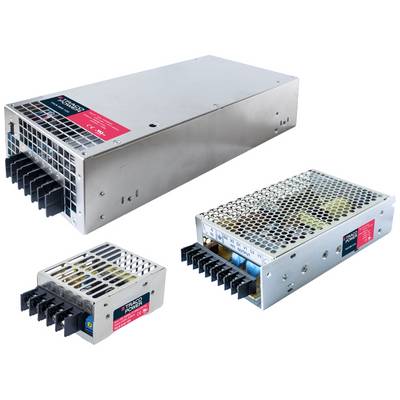

Three switch-mode power supplies in different sizes on a white background. They have metallic enclosures with ventilation grilles and black connection terminals.

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 326.89 / piece)

€

Report legal concerns

Highlights & Details

AC/DC PSU Components

Output 48 V DC / 15.8 A
Power 750 W
Screw terminal

Technical specifications

Max. output current: 15.8 A

Output current (max.) - rounded: 15.8 A

Dim: (L x W x H) 275.0 x 125.0 x 63.0 mm

Height: 63.0 mm

Length: 275.0 mm

Width: 125.0 mm

Connection: Screw terminal

Type: closed

Type: TXLN 750-148

MTBF: 107000 h

Input voltage (max.): 264 V AC

Min. input voltage: 90 V AC

Operating temperature (max.): 70 °C

Operating temperature (min.): -20 °C

Max. operating temperature (derating): 50 °C

Output current (min.): 0 mA

Output voltage (max.): 48 V DC

Output voltage (min.): 48 V DC

No. of outputs: 1 x

: 750 W

PFC: Yes

Weight: 2500 g

Product type: AC/DC PSU module (+ enclosure)

Documents & Downloads

Datasheet

Datasheet 2475561 TracoPower TXLN 750-148 AC/DC PSU module (+ enclosure) 48 V DC 15.8 A 750 W

User & Safety Instructions

User & Safety Instructions 2475561 TracoPower TXLN 750-148 AC/DC PSU module (+ enclosure) 48 V DC 15.8 A 750 W

Warranty Terms

Warranty Terms 2475561 TracoPower TXLN 750-148 AC/DC PSU module (+ enclosure) 48 V DC 15.8 A 750 W
