Name: TracoPower TXM 035-105 SMPSU 5.5 V DC 6 A 35 W
Brand: TracoPower
SKU: 2789986
Availability: BackOrder

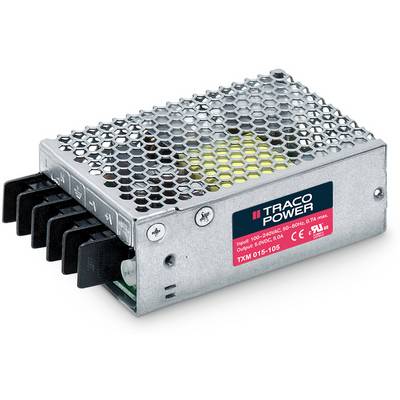

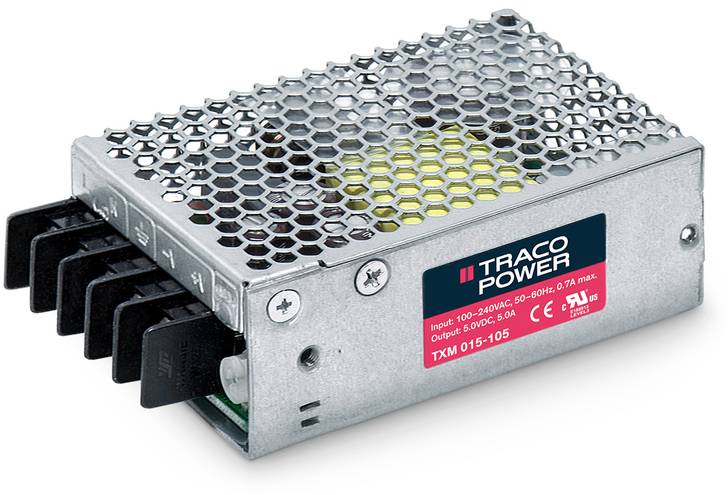

Metal power supply enclosure by Traco Power with ventilation grilles and label. Contains technical specifications and CE marking.

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 41.99 / piece)

€ 41.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

AC/DC-SWITCHED POWER SUPPLY, 35 W, 5 V/6.0 A

Output 5.5 V DC / 6 A
Power 35 W
Screw terminal

Technical specifications

Input voltage range 90-264 VAC
Output voltage range (adjustable) 4.7 - 5.5 VDC
Output current: 6.0 A
Output: 35 W
Efficiency level 80% (230 VAC)
Control deviations: Input variation: Max. 0.5 %, load variation (10-100 %): Max. 2.0 %
Short-circuit protection: Continuous, automatic Restart (Hiccup mode)
Overvoltage protection: 105-150% Ufrom nom.
Operating temperature range: See data sheet, power reduction: See data sheet
E/a-insulation 3000 VAC (60 s)
Safety standards: CUL/UL 60950-1, IEC/EN 60950-1, CB-Report

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 6 A

Output current (max.) - rounded: 6 A

Min. input voltage: 90 V AC

Dim: (L x W x H) 63.5 x 101.6 x 33 mm

Output voltage (max.): 5.5 V DC

Connection: Screw terminal

: 35 W

Type: closed

Weight: 200 g

Width: 101.6 mm

Height: 33 mm

Length: 63.5 mm

Type: TXM 035-105

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Min. input voltage

Output current (max.) - rounded

Output voltage (max.)

Power

Product type

TracoPower TXM 035-105 SMPSU 5.5 V DC 6 A 35 W

Item no:2789986

Available soon

Conrad Electronic

This article

90 V AC

6 A

5.5 V DC

35 W

SMPSU

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.99^*

TracoPower TXM 015-103 SMPSU 3.6 V DC 4 A 15 W

Item no:1083055

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

90 V AC

4 A

3.6 V DC

15 W

SMPSU

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

TracoPower TXM 015-112 SMPSU 13.2 V DC 1.3 A 15 W

Item no:1083057

Fast track dispatch on Thu 29 Oct

11 Piece(s)Conrad Electronic

90 V AC

1.3 A

13.2 V DC

15 W

SMPSU

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

TracoPower TXM 015-115 SMPSU 16.5 V DC 1 A 15 W

Item no:1083058

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

90 V AC

1 A

16.5 V DC

15 W

SMPSU

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

TracoPower TXM 025-103 SMPSU 3.6 V DC 5 A 25 W

Item no:2789985

Available soon

Conrad Electronic

90 V AC

5 A

3.6 V DC

25 W

SMPSU

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

TracoPower TXM 025-105 SMPSU 5.5 V DC 5 A 25 W

Item no:1083061

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

90 V AC

5 A

5.5 V DC

25 W

SMPSU

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

TracoPower TXM 025-112 SMPSU 13.2 V DC 2.1 A 25 W

Item no:1083062

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

90 V AC

2.1 A

13.2 V DC

25 W

SMPSU

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

TracoPower TXM 025-124 SMPSU 26.4 V DC 1.1 A 25 W

Item no:1083064

Available soon

Conrad Electronic

90 V AC

1.1 A

26.4 V DC

25 W

SMPSU

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

TracoPower TXM 035-112 SMPSU 13.2 V DC 3 A 35 W

Item no:1083066

Fast track dispatch on Thu 29 Oct

4 Piece(s)Conrad Electronic

90 V AC

3 A

13.2 V DC

35 W

SMPSU

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 34.99^*

TracoPower TXM 035-115 SMPSU 16.5 V DC 2.4 A 35 W

Item no:2789987

Available soon

Conrad Electronic

90 V AC

2.4 A

16.5 V DC

35 W

SMPSU

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 32.99^*

Documents & Downloads

Datasheet

Datasheet 2789986 TracoPower TXM 035-105 SMPSU 5.5 V DC 6 A 35 W

User & Safety Instructions

User & Safety Instructions 2789986 TracoPower TXM 035-105 SMPSU 5.5 V DC 6 A 35 W

Warranty Terms

Warranty Terms 2789986 TracoPower TXM 035-105 SMPSU 5.5 V DC 6 A 35 W

Description

The TracoPower TXM series offers switched-mode power supplies for a wide range of cost-critical applications. The low profile and screw terminal block make installation easy in many applications. There are a total of 40 different models with single output from 3.3 to 48 VDC in nine different power classes from 15 to 320 W. The universal power input, the conformity to European EMC standards and the compliance with the low voltage directive (LVD) round off this series.
