Trend Networks NaviTEK NT Pro Cable Length Meter,
EAN:
Part number:
Item no:
Number
Total (€ 1,533.61 / piece)
€ 1,533.61
plus VAT.
Only 6 Piece(s) available
NaviTEK NT Pro network and verification tester for troubleshooting with touch screen
Highlights & Details
Technical specifications
- Perform tests on copper and fiber optic cables or networks
- Wiring test pin/pair/length
- Switch detection 10/100/1000 Mbit/s.
- IPv4/IPv6, PoE/PoE+ detection
- Network scanner display
- Port identification with EDP/CDP/LLDP protocols
- VLAN-support
- Network scan
- Network load bar display
- Ping test
- Traceroute test
- Lifting flash function
- DHCP test
- Autotest-Function
- Tone generator
- Internal food for 5000 test ranges
- Data transfer via Anyware app.
- Product type
Network cable tester
- Function
Break
- Display
Touchscreen
- Optical display
Yes
- Test sockets
RJ45
- Dim
(L x W x H) 40 x 80 x 175 mm
- Weight
400 g
- Range
Networks
- Features
Touchscreen
- Width
80 mm
- Height
175 mm
- Length
40 mm
- Type
NaviTEK NT Pro
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1826720 Trend Networks NaviTEK NT Pro Cable Length Meter,
Information
Information 1826720 Trend Networks NaviTEK NT Pro Cable Length Meter,
Description

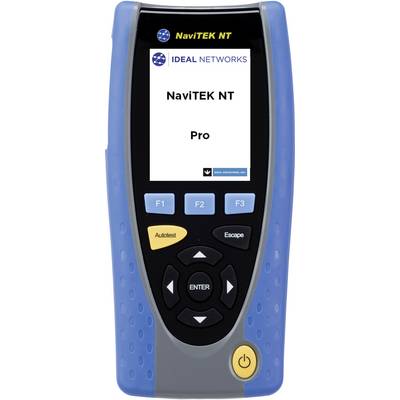

The NaviTEK NT Pro with touch-screen color display is a network tester for troubleshooting and maintenance in active and passive copper cable and glass fiber networks. With its optimized graphical user interface, the NaviTEK NT enables network technicians to identify and resolve network connection problems more quickly. In addition to the graphically detailed wiring test with error localization and indication of the distance to interruptions and short-circuits (TDR), the compact tester also supports functions such as IPv4, IPv6, PoE/PoE+ detection, ping and traceroute test, DHCP client, HUB blink, 10/100/1000 Mbps switch detection, tone generator, network scanner display, port identification with EDP/CDP/LLDP protocols, Network scan, network load bar graph, login via 802.1x protocol, display of optical line level. User-replaceable RJ45 inserts reduce operating costs and increase service readiness. The clear color display with touch-screen and background lighting simplifies the reading of the test results, which can be passed on as report in 3 variants in the new PDF or CSV format quickly and easily via THE ideal Anyware app. Alternatively, the test results can be stored on a USB stick. Internal memory for more than 5000 test reports.
This text is machine translated.
This text is machine translated.
Features
- Check cable connections and troubleshoot connection problems
- Graphically detailed wiring test with error localization, split-pair, sub-calculations and short circuits
- Distance to opens and shorts (TDR)
- Autotest button to run a network test series
- Fiber optic cable connector
- Log in using 802.1x protocol
- Display of the optical power level
- Network scanner display with detailed information about ports and the network
- PoE/PoE+ detection, DHCP client, ping and traceroute test
- Port identification with EDP/CDP/LLDP protocols
- VLAN support, network scan, network bar graph
- Hub flashing for port identification
- Switch detection 10/100/1000 Mbit/s.
- Sound generation for cable search
- Internal memory for more than 5000 test reports
- Generation of test reports in PDF or CSV format
- Submit test reports from your mobile device using the free ideal Anyware app
- User replaceable RJ45 inserts
- Support for up to 12 remote adapters for wiremap testing
- Touch-screen color display with background lighting
Scope of delivery
- 1 NaviTEK NT tester
- 1 Remote Adapter No. 1
- 1 battery module
- 1 power supply with UK/EU/US adapters
- 2 patch cables (30cm, Cat. 5e, STP)
- 1 quick instructions
- 1 carrying case
