Trend Networks R151005 Cable Length Meter,
EAN:
Part number:
Item no:
Number
Total (€ 1,475.00 / piece)
€ 1,475.00
incl. VAT
Only 7 Piece(s) available
Highlights & Details
NaviTEK NT Plus network and verification tester for the error search with touch-screen
Technical specifications
- Running Tests at copper cabling and networks
- Wiring test pin/Pair/length
- Switch detection 10/100/1000 Mbit/s
- IPv4/IPv6
- PoE/PoE+ Detection
- Network Scanner Display
- Port identification with EDP/CDP/LLDP protocols
- VLAN-support
- Network Scan
- Network Load bar display
- Ping Test
- Traceroute Test
- Hub-Function
- DHCP Test
- Auto-test function
- Tone generator
- Internal Speicer for 5000 Test Preparation Indicator Light
- Data transfer via AnyWARE App
- Product type
Network cable tester
- Function
Cable tracking
- Acoustic signal
Yes
- Display
Touchscreen
- Optical display
Yes
- Dim
(L x W x H) 40 x 80 x 175 mm
- Weight
400 g
- Range
Networks
- Features
Touchscreen
- Width
80 mm
- Height
175 mm
- Length
40 mm
- Type
R151005
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1826726 Trend Networks R151005 Cable Length Meter,
Information
Information 1826726 Trend Networks R151005 Cable Length Meter,
Description
The NaviTEK NT Plus with touch-screen color display is a network tester for troubleshooting and maintenance in active and passive copper cabling. With its optimized graphical user interface allows the NaviTEK NT network technicians to identify and resolve faults faster connection in the network. In addition to the graphical detailed wiring test with error localization and specifying the distance to the interruptions and short-circuits (TDR) supports the compact tester also functions such as IPv4, IPv6, PoE/PoE+ Detection, Ping and Traceroute Test, DHCP Client, HUB-blink, Switch Detection 10/100/1000 Mbit/s, Network Scanner Display, port identification with EDP/CDP/LLDP protocols, network scanning, network load bar display, tone generator. User-replaceable RJ45 inserts lower operating costs and increase the service is ready for use. The clear color display with touch-screen and backlight large reading the test results as a report in 3 variants in the new PDF or CSV format quickly and easily by simply ideal AnyWARE app. Alternatively, the test results are stored on a USB stick. Internal memory for more than 5000 test reports.
This text is machine translated.
This text is machine translated.
Features
- Check cable connections and fault diagnosis of connection problems
- Graphically detailed wiring test with error localization, split pair, Unterbrechnungen and short-circuits
- Specification of the distance to interruptions and short-circuits (TDR)
- Auto test button to perform a Network Test Series
- Network Scanner Display with details of ports and network
- PoE/PoE+ Detection, DHCP Client, Ping and Traceroute Test
- Port identification with EDP/CDP/LLDP protocols
- VLAN-support, network scanning, network bar display
- The Hub-Blinken port identification
- Switch detection 10/100/1000 Mbit/s
- Tong Neri enrichment for cable search
- Internal memory for more than 5000 Test Reports
- Generation of test report in the FDF or CSV format
- Transfer of test reports from the mobile device with the free ideal AnyWARE App
- User-replaceable RJ45 - inserts
- Support for up to 12 remote adapters for wiring tests
- Touch screen color display with backlight.

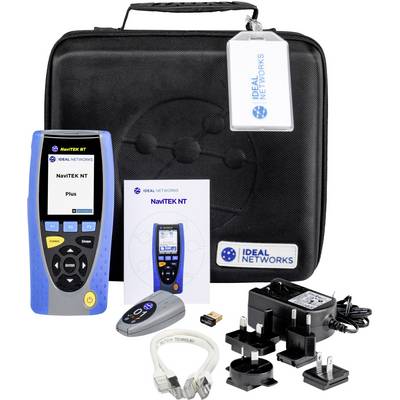

Scope of delivery
- 1 NaviTEK NT-Tester
- 1 remote adapter no. 1
- 1 battery module
- 1 power supply with UK/EU/US-adapters
- 2 Patachkabel (30 cm, Kat. 5e, STP)
- 1 quick instructions
- 1 transport bag
