Connectors & CablesCables & WiresMulticore CablesRibbon Cables

TRU COMPONENTS 1567187 Ribbon cable Contact spacing: 1.27 mm 20 x 0.035 mm² Grey 30.5 m

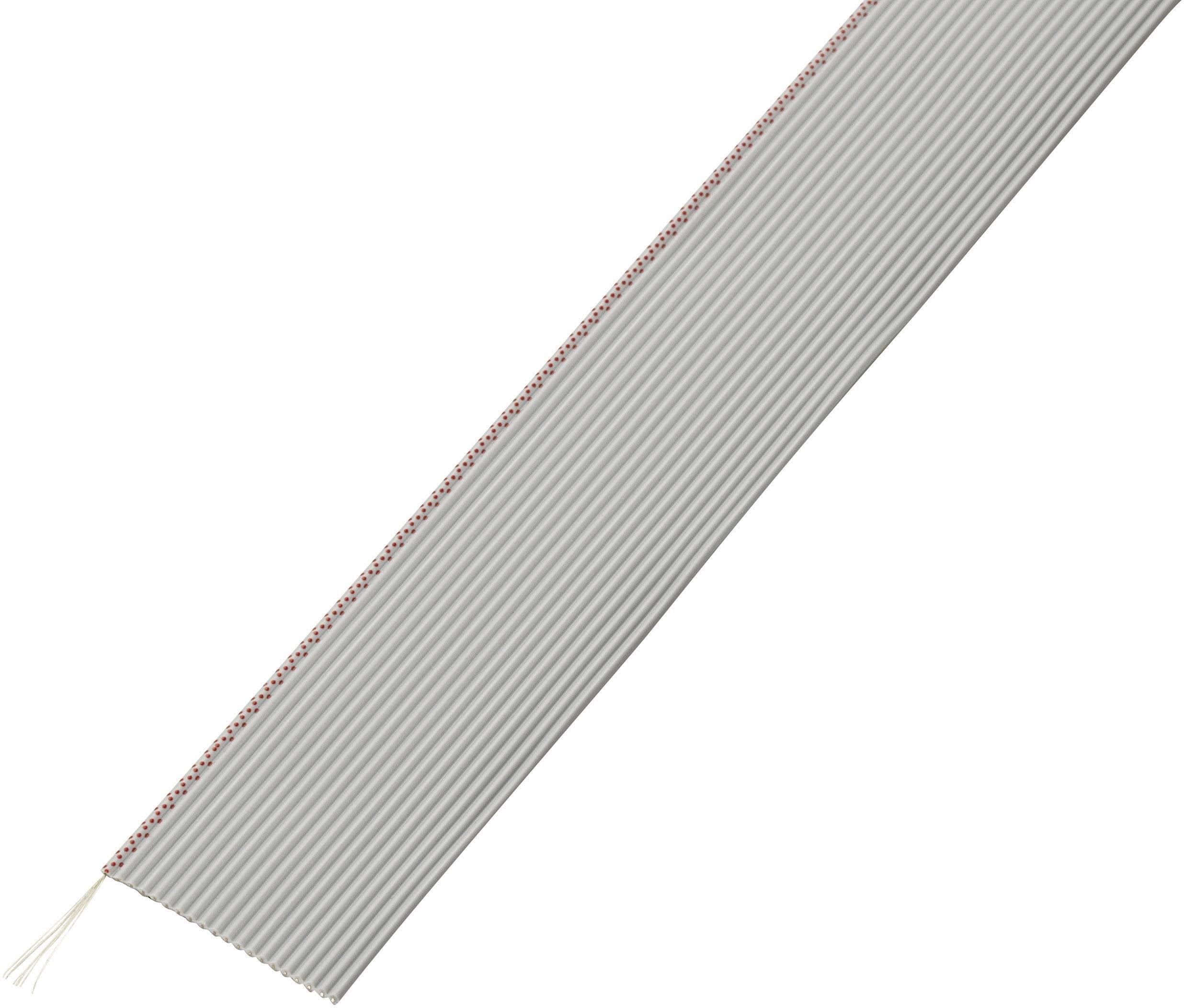

Flat grey cable with a white flat plug at the end, suitable for electronic connections or internal wiring.
Technical drawing of a cable with PVC insulation. Dimensions: Wire diameter 0.89 mm, spacing 1.27 mm. Copper wire 31AWG 7x0.09 mm.
1/2
Image similar
Product type
Ribbon cable
CS
1.27 mm
No. of leads
20 x
Cross section (each core)
0.035 mm²
Content
30.5 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
1 Set(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (1 m = € 0.29)
€ 8.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Set(s) available
14-day return policy included
Report legal concerns

Technical specifications

Product type

Ribbon cable

CS

1.27 mm

No. of leads

20 x

Cross section (each core)

0.035 mm²

Cross section

20 x 0.035 mm²

Width

25.4 mm

Height

24.13 mm

Factory colour

Grey

Content

30.5 m

Nominal voltage

50 V

Packaged

Yes

32

Shielded

No

Halogen-free

No

Sold per metre

No

Insulation material

PVC

Core layout

7 x 0.08 mm

Min. temperature range (fixed installation)

-20 °C

Max. temperature range (fixed installation)

+105 °C

Manufacturer part #

1567187

Type

FBC

Documents & Downloads

Datasheet

Datasheet 1567187 TRU COMPONENTS 1567187 Ribbon cable Contact spacing: 1.27 mm 20 x 0.035 mm² Grey 30.5 m

User & Safety Instructions

User & Safety Instructions 1567187 TRU COMPONENTS 1567187 Ribbon cable Contact spacing: 1.27 mm 20 x 0.035 mm² Grey 30.5 m

Description

Scope of delivery

  • Packing (30.5 m).
  • This text is machine translated.
