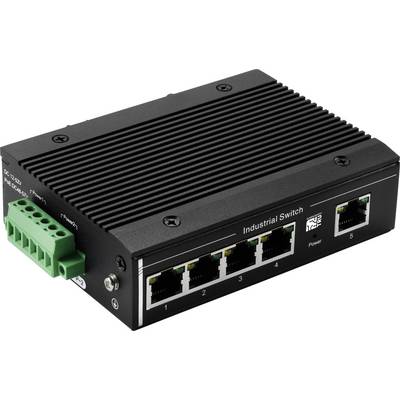

TRU COMPONENTS TC-13427356 TC-XL-205GP Industrial Ethernet switch 1+4 ports 10 / 100 / 1000 MBit/s PoE
EAN:
Part number:
Item no:
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Technical specifications
- 10/100/1000BASE-TX Port 5 port: RJ-45 auto-MDI / MDI-X
- 4-Port PoE, 802.3at/af, max. 30 W
- Power supply voltage: 48 - 57 V DC
- Number of ports (uplink): 1
- Mounting type: DIN rail
- Product type
Industrial Ethernet switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
5
- IEEE 802.3af PoE
Yes
- PoE ports
4
- 10/100/1000 Mbps ports
5 x
- Port type
RJ45
- Router features
PoE
- Power supply (LOV)
via DC in
via terminal
- MAC addresses
1000
- Type
TC-XL-205GP
- Interfaces
RJ45
IP40
- Factory colour
Black
- Max. ambient temperature
85 °C
- Min. ambient temperature
-40 °C
- Port
1+4 ports
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3356839 TRU COMPONENTS TC-13427356 TC-XL-205GP Industrial Ethernet switch 1+4 ports 10 / 100 / 1000 MBit/s PoE
Description
The network switch provides 5 twisted-pair connections RJ45. Mounts onto a DIN rail. The switch is designed for the rough industrial environment. With a temperature range of -40 to +85 °C the switch can be used under unfavorable conditions.
