ElectromechanicsSwitches & ButtonsPush Actuated Switches & ButtonsPush Buttons

TRU COMPONENTS TC-14939944 Pushbutton 250 V AC 0.5 A 1 x On/(On) momentary (L x W x H) 38 x 12 x 12 mm IP40 1 pc(s)

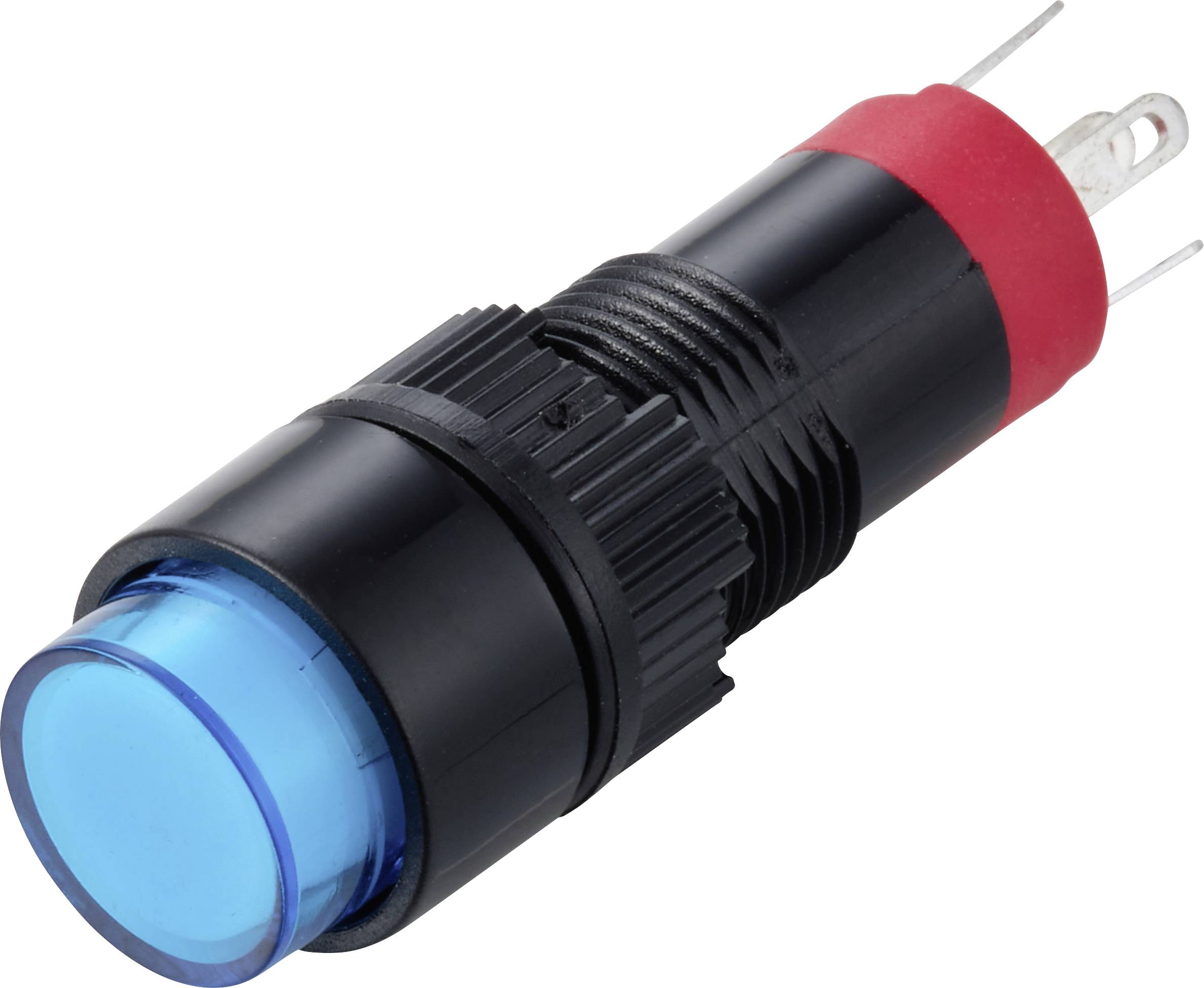

Round blue indicator light or push-button switch with black body and red rear cap, shown on a white background.

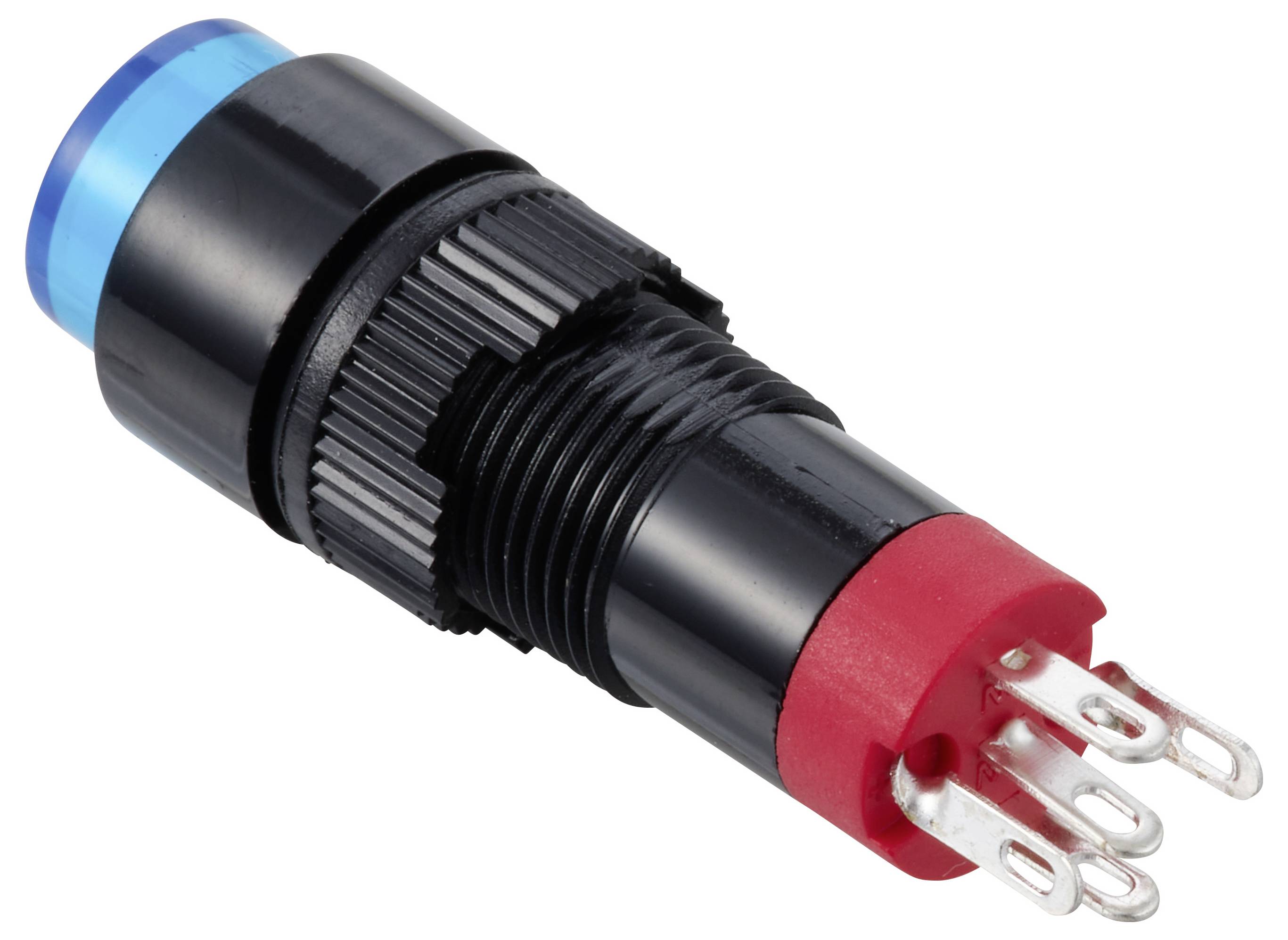

Close-up of a black panel-mounted push button switch with blue cap, red base, and four metal terminals.

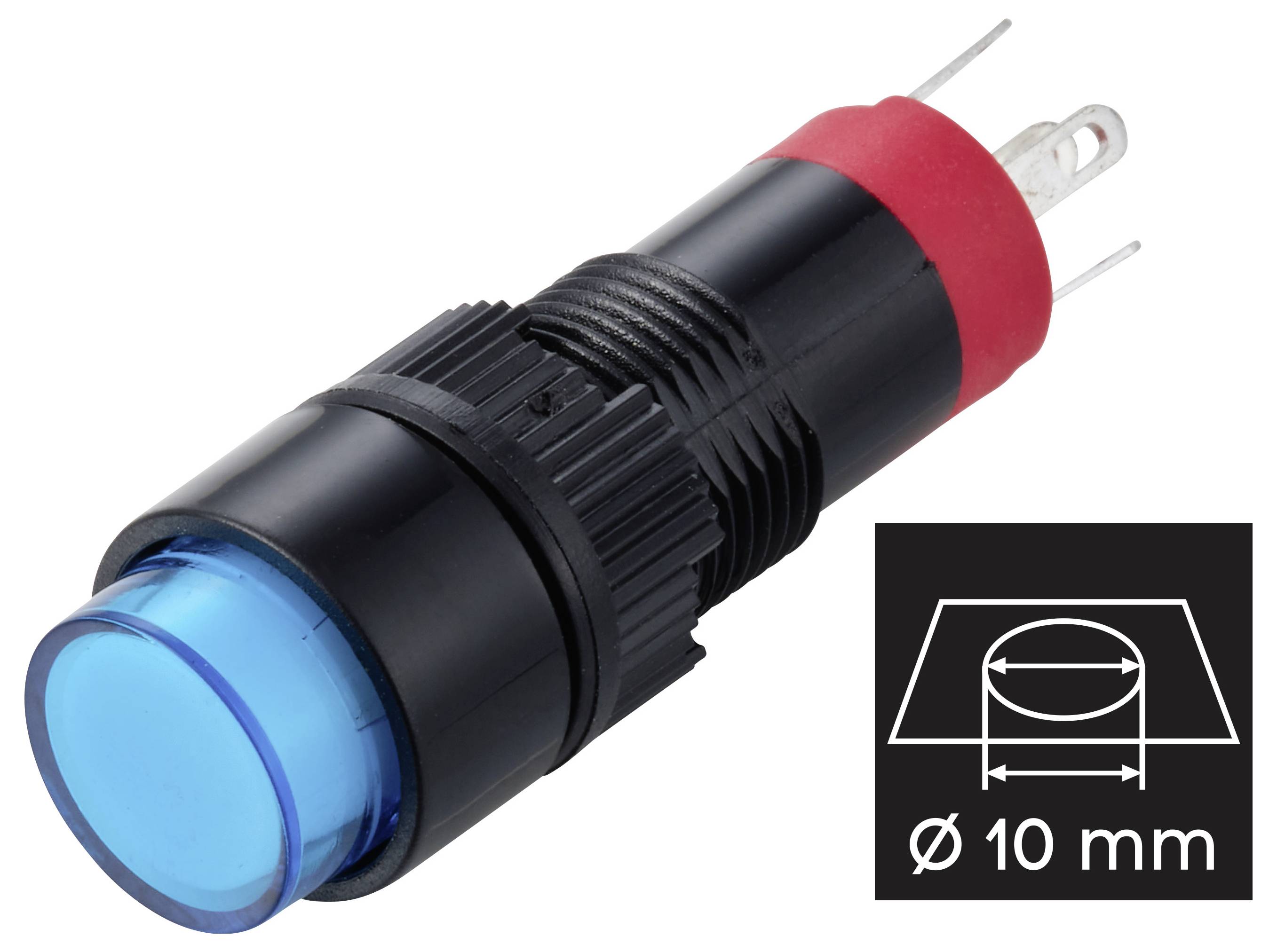

Black panel mount push button switch with blue illuminated lens, shown with mounting icon indicating 10 mm hole size.<br>
1/3
Product type
Pushbutton
Lighting type
None
Switch position
1 x On/(On)
Connection
CEE 7/16 CEE plug
Switching voltage
250 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
150 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2.81 / piece)
€ 2.81
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

TRU COMPONENTS Push button 10 mm, 1 NO/NC (1NO1NC) blue-unlit, IP40

  • Easy 10 mm mounting
  • Space-saving design
  • High-visibility color cap

Technical specifications

Product type

Pushbutton

Casing/button colour

Blue

Functions

momentary

Lighting type

None

Switch position

1 x On/(On)

Material

Plastic

Contact material

Silver alloy

Connection

CEE 7/16 CEE plug

Switching voltage

250 V AC

Switching current (max.)

0.5 A

Min. temperature

-25 °C

Max. temperature

+55 °C

Length

38 mm

Width

12 mm

Height

12 mm

Button diameter

12 mm

Recess diameter

10 mm

Recess depth

28 mm

Electrical lifespan

50,000 cycles

Front panel cut-out

10 mm

IP40

Content

1 pc(s)

Contact resistance

≤50 mΩ

Dim

(L x W x H) 38 x 12 x 12 mm

RoHS-compliant

Yes

Board thickness (max.)

8 mm

Type

TC-14939944

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3734986 TRU COMPONENTS TC-14939944 Pushbutton 250 V AC 0.5 A 1 x On/(On) momentary (L x W x H) 38 x 12 x 12 mm IP40 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3734986 TRU COMPONENTS TC-14939944 Pushbutton 250 V AC 0.5 A 1 x On/(On) momentary (L x W x H) 38 x 12 x 12 mm IP40 1 pc(s)

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
