TRU COMPONENTS TC-DS2X6P TC-DS2X6P Rotary switch 0.35 A Switch postions 6 5 x 30 ° 1 pc(s)
EAN:
Part number:
Item no:
Operation type
Rotary switch
Switch postions
6
Switching current (max.)
0.35 A
Product type
Rotary switch
Functions
latch
Datasheet (PDF)
51 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.65
5
7% = € 0.31
€ 4.34
10
9% = € 0.42
€ 4.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.65 / piece)
€
Technical specifications
- Functions
latch
- Operation type
Rotary switch
- Switching angle
5 x 30 °
- Lighting type
None
- Switch postions
6
- Material
Nylon
- Contact material
Silver
- Connection
Solder pins
- Contact resistance
1 mΩ
- Switching current (max.)
0.35 A
- Durability
10000
- Axle Ø
6 mm
- Recess diameter
10 mm
- Content
1 pc(s)
- Type
TC-DS2X6P
- Product type
Rotary switch
Documents & Downloads

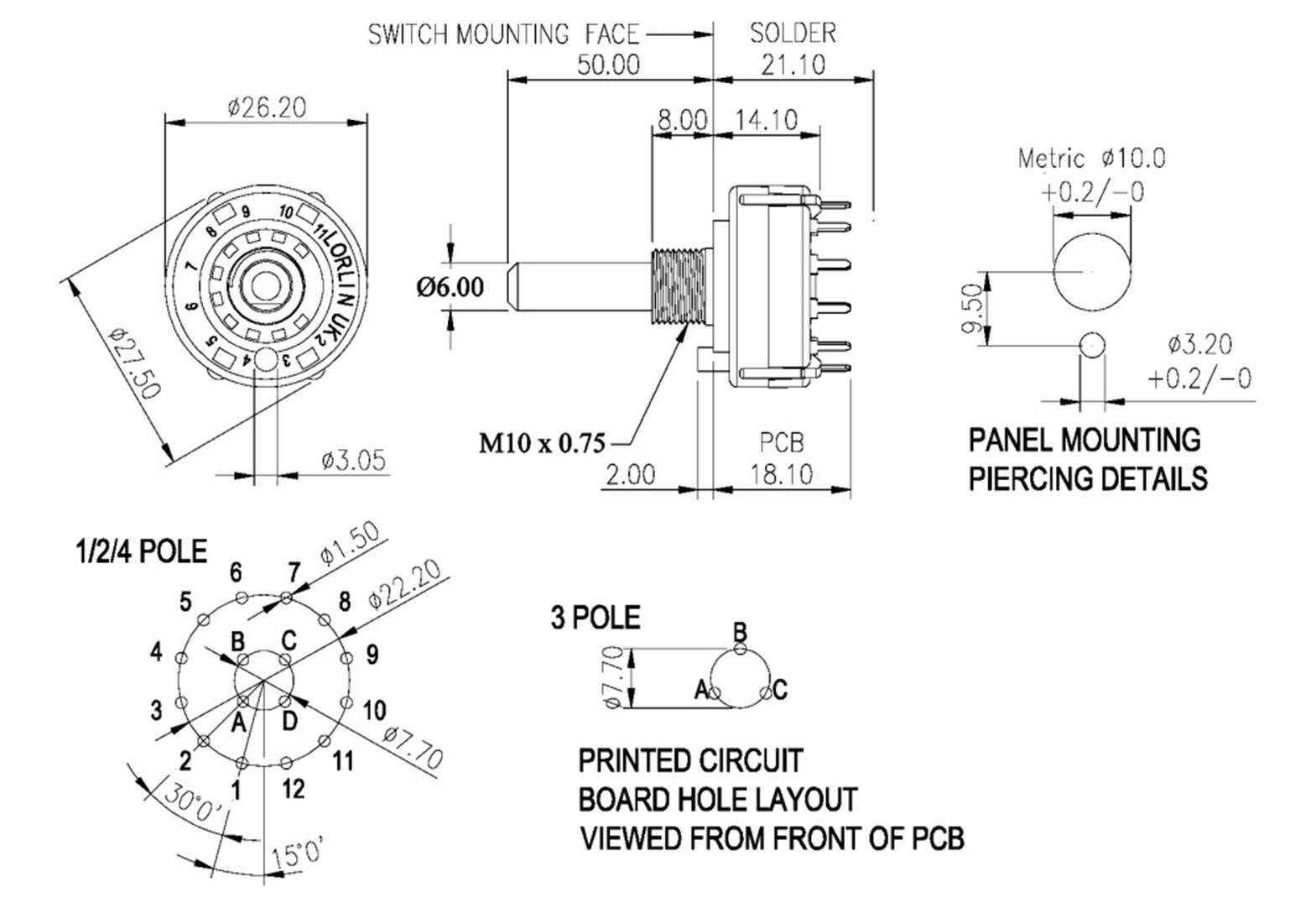

Datasheet
Datasheet 1589496 TRU COMPONENTS TC-DS2X6P TC-DS2X6P Rotary switch 0.35 A Switch postions 6 5 x 30 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1589496 TRU COMPONENTS TC-DS2X6P TC-DS2X6P Rotary switch 0.35 A Switch postions 6 5 x 30 ° 1 pc(s)
