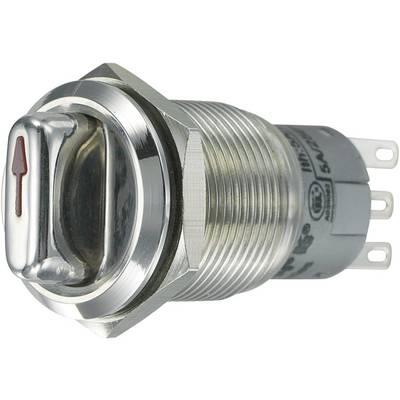

TRU COMPONENTS 701812 LAS1-AGQ-22X/31 Tamper-proof rotary switch 250 V AC 3 A Switch postions 2 2 x 45 ° IP65 1 pc(s)
EAN:
Part number:
Item no:
Product type
Tamper-proof rotary switch
Operation type
Toggle
Contact type
2 makers
2 breakers
Switch postions
2
Switching voltage
250 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.94
3
5% = € 0.84
€ 16.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.94 / piece)
€ 26.04
-35 %
€ 16.94
plus VAT.
Technical specifications
- Product type
Tamper-proof rotary switch
- Casing/button colour
Stainless steel
- Functions
latch/0/latch
- Operation type
Toggle
- Switching angle
2 x 45 °
- Lighting type
None
- Contact type
2 makers
2 breakers
- Switch position
2 x On/Off/On
- Bulb type
LED (monochrome)
- Switch postions
2
- Material
Stainless steel
- Connection
Type C CEE 7/16 plug 2.8 mm
- Switching voltage
250 V AC
- Switching current (max.)
3 A
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Recess diameter
19 mm
IP65
- Content
1 pc(s)
- Type
LAS1-AGQ-22X/31
- RoHS-compliant
Yes
- Material (details)
Stainless steel
- Type
2 x ON/OFF/ON
- Switching capacity
5 A/250 V AC
- Switching current
5 A
- Connection
Flat pin connector 2.8 x 0.5 mm
- Temperature range
-20 to +55 ºC °C
