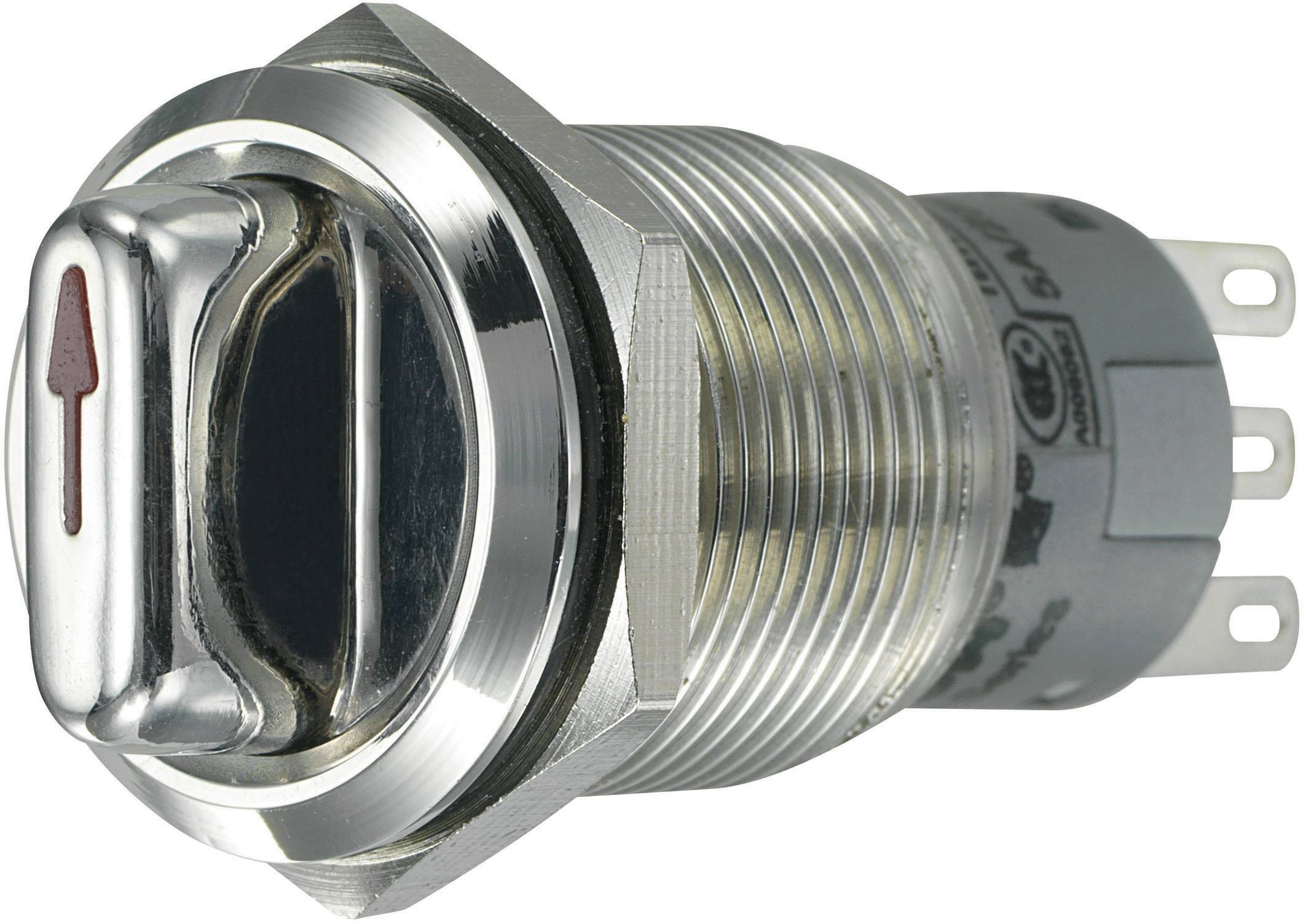

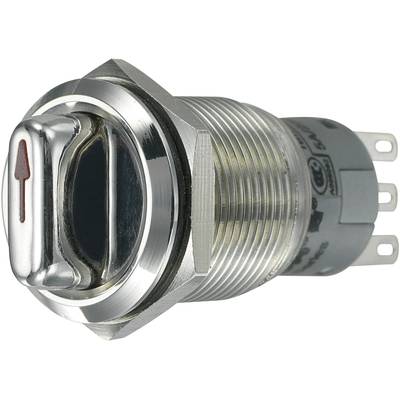

TRU COMPONENTS 701810 LAS1-AGQ-11X/21 Tamper-proof rotary switch 250 V AC 5 A Switch postions 2 1 x 90 ° IP65 1 pc(s)
EAN:
Part number:
Item no:
Product type
Tamper-proof rotary switch
Operation type
Toggle
Contact type
1 change-over
Switch postions
2
Switching voltage
250 V AC
Datasheet (PDF)
88 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.40
3
5% = € 0.79
€ 13.61
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.40 / piece)
€ 21.00
-31 %
€
Technical specifications
- Product type
Tamper-proof rotary switch
- Casing/button colour
Stainless steel
- Functions
latch
- Operation type
Toggle
- Switching angle
1 x 90 °
- Lighting type
None
- Contact type
1 change-over
- Switch position
1 x On/On
- Switch postions
2
- Material
Stainless steel
- Connection
Type C CEE 7/16 plug 2.8 mm
- Switching voltage
250 V AC
- Switching current (max.)
5 A
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Recess diameter
19 mm
IP65
- Content
1 pc(s)
- Type
LAS1-AGQ-11X/21
- Dim
- RoHS-compliant
Yes
- Material (details)
Stainless steel
- Type
1 x On/On
- Switching capacity
5 A/250 V AC
- Switching current
5 A
- Connection
Flat pin connector 2.8 x 0.5 mm
- Temperature range
-20 to +55 ºC °C
Documents & Downloads
Datasheet
Datasheet 701810 TRU COMPONENTS 701810 LAS1-AGQ-11X/21 Tamper-proof rotary switch 250 V AC 5 A Switch postions 2 1 x 90 ° IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 701810 TRU COMPONENTS 701810 LAS1-AGQ-11X/21 Tamper-proof rotary switch 250 V AC 5 A Switch postions 2 1 x 90 ° IP65 1 pc(s)
Download
Download 701810 TRU COMPONENTS 701810 LAS1-AGQ-11X/21 Tamper-proof rotary switch 250 V AC 5 A Switch postions 2 1 x 90 ° IP65 1 pc(s)
