Name: Ubiquiti Networks UDM-PRO-MAX UniFi Dream Machine Pro Max Network switch 11 ports
Brand: Ubiquiti Networks
SKU: 3373136
Availability: SoldOut

Network device with two hard drive bays on the left and eight Ethernet ports on the right.

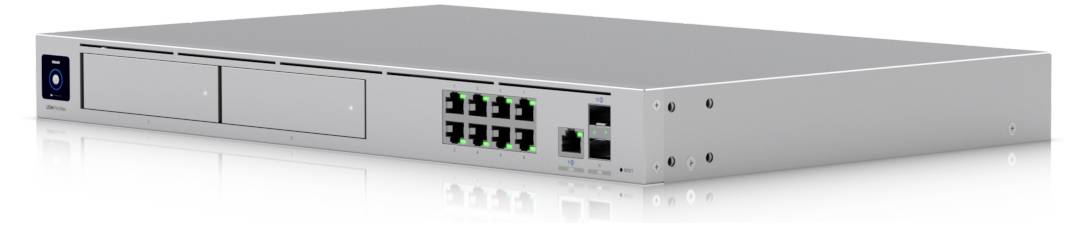

A silver network switch with multiple Ethernet ports and an illuminated power button on the left side.

A server device with two empty hard drive bays and eight Ethernet ports, suitable for network applications.

Grey-coloured blank server rack panel with multiple mounting holes, shown against a white background.

The image shows the back of a network device with a large connection field on the left side and a power connection on the right side.

Silver network switch with multiple Ethernet ports and two empty slots at the front, positioned on a white surface.

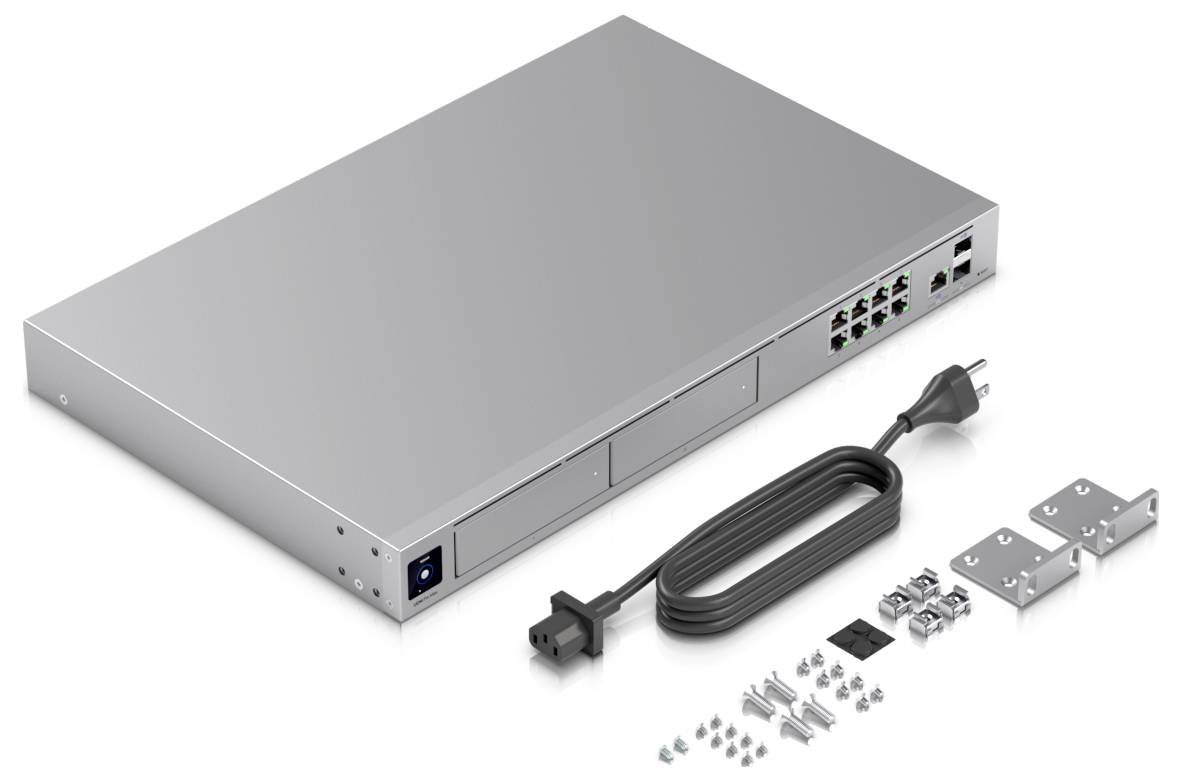

Silver-coloured network switch with multiple Ethernet ports, network adapter, mounting brackets and screws, all on a white background.

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 779.00 / piece)

€ 779.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Ubiquiti Unifi Dream Machine Pro Max – Gateway 8-port switch

Integrated 8-port switch for efficient management of network traffic
Supports both OpenVPN and WireGuard for secure remote access
5 Gbps IDS/IPS throughput for improved network security
Cloud management for easy remote monitoring and management
Two WAN ports for reliable Internet connectivity

Technical specifications

Housing type: Desktop
Performance: IDS/IPS Throughput: 5 Gbps
Network/transport protocol: DHCP, WireGuard, L2TP, OpenVPN
Routing protocol: IGMP
Remote management protocol: IPv6, DHCP
Features: Aluminium/steel housing, quad-core CPU, Bluetooth management, 15KV ESD Protector (air gap discharge), 8KV ESD Protector (contact discharge), reset button, ISP, IGMP proxy, DHCP server, DHCP relay, OpenVPN server, OpenVPN client, site-to-site replication, policy-based WAN, VPN routing, QoS, cloud-managed
Certification: IC, FCC
Processor 1 x ARM 2 GHz
RAM 8 GB DDR4 SDRAM
Flash memory 32 GB
Integrated peripherals: 128 GB SSD, 1.3" touch screen display
Status indicator: Link/activity, disk, RPS (redundant power supply)
Expansion slots: 2 (total) / 2 (free) x 3.5" HDD slot

Product type: Network switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s

Working principle: Managed switch

Ethernet ports: 10

SFP+ ports: 1 x

Port type: LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 + LAN: 1 x 10Gb Ethernet - SFP+ + WAN: 1 x 2.5G Gigabit Ethernet - RJ-45 + WAN: 1 x 10Gb Ethernet - SFP+

Power supply (LOV): mains-powered

Weight: 4.7 kg

Width: 442.4 mm

Height: 43.7 mm

Depth: 285.6 mm

Type: UniFi Dream Machine Pro Max

Interfaces: RJ45
RJ45 2.5 Gbit (LAN) port
SFP+

Factory colour: Metal

Current consumption: Alternating current 100-240 V (50 Hz)

Max. ambient temperature: -10 °C

Min. ambient temperature: +40 °C

Port: 11 ports

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3373136 Ubiquiti Networks UDM-PRO-MAX UniFi Dream Machine Pro Max Network switch 11 ports

Description

The Ubiquiti Unifi Dream Machine Pro Max was developed to meet the network requirements of small and large networks and combines high-speed connections with strong security features. It has an integrated 8-port switch, two WAN ports and supports multiple Ethernet standards for reliable and versatile network connections. With an IDS/IPS throughput of 5 Gbit/s, VPN support and extended encryption protocols your data is best protected. It is also easy to use and has cloud-managed functions for easy configuration and management. The robust aluminum steel casing and the high storage capacity provide for reliable performance in all network tasks. The Ubiquiti Unifi Dream Machine Pro Max was developed to provide a secure, efficient and scalable network solution for both business and private use.

Robust connectivity
With Ethernet 10Base-T/100Base-TX/1000Base-T interfaces and 10Gb Ethernet and 2.5G Gigabit Ethernet ports, the Ubiquiti Unifi Dream Machine Pro Max offers versatile and fast connectivity options for different network requirements.

Advanced security features
Equipped with a quad-core CPU and an IDS/IPS throughput of 5 Gbit/s, the device offers strong security measures such as VPN support, firewall functions and advanced encryption protocols to protect your network.

Comprehensive network management
Features such as DHCP server, IGMP proxy, and Quality of Service (QoS) enable efficient management of network traffic, while cloud-managed features enable remote monitoring and customization to ensure optimal network performance.

Durable and reliable design
The Dream Machine Pro Max is housed in an aluminum/steel housing and has a 15KV ESD protection (air gap discharge) and an 8KV ESD protection (contact discharge), which provides for long life and reliability in long term use.

High storage capacity and memory
With a 128 GB SSD and 8 GB DDR4 SDRAM this device offers enough storage space and RAM to manage network configurations and data processing and ensure a smooth and efficient operation.

This text is machine translated.
