Name: V-TAC 10483 VT-61012 LED panel EEC: F (A - G) LED (monochrome) LED 12 W White
Brand: V-TAC
SKU: 3588515
Availability: InStock

A white plastic ventilation grille with slats for air flow control, designed for wall or ceiling installation.

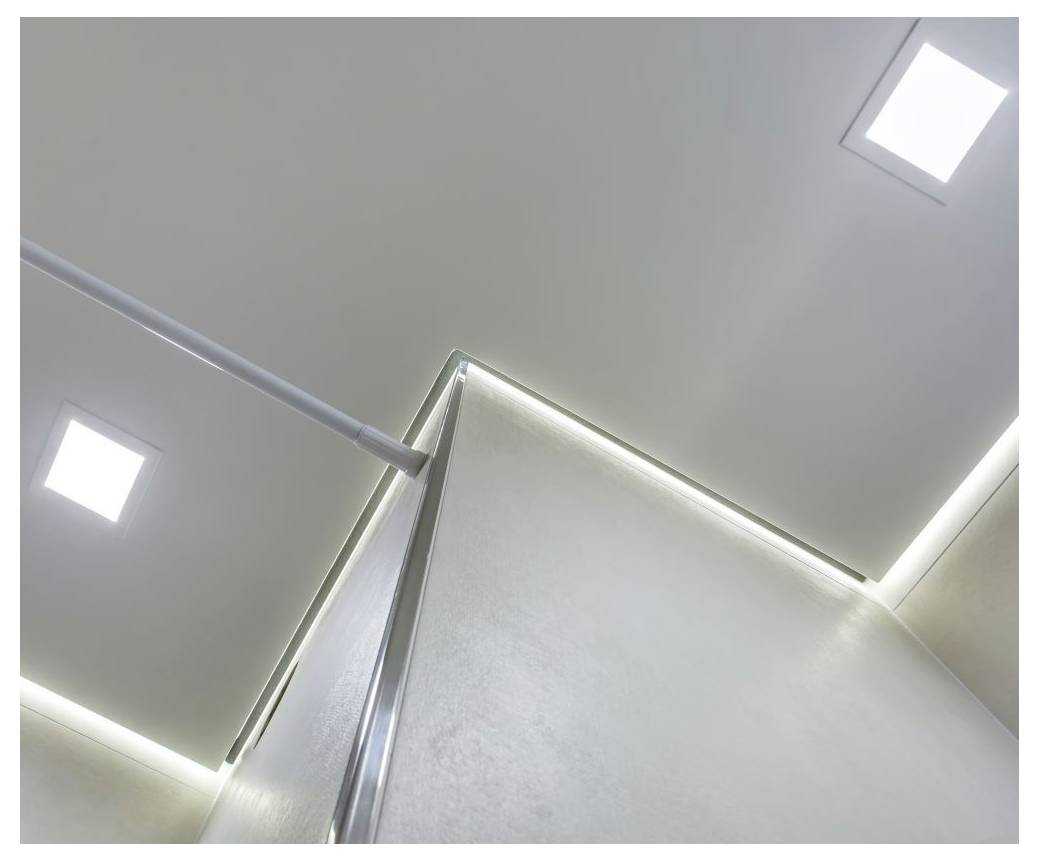

A modern ceiling with recessed lighting and a structural beam, creating a sleek, illuminated architectural design.

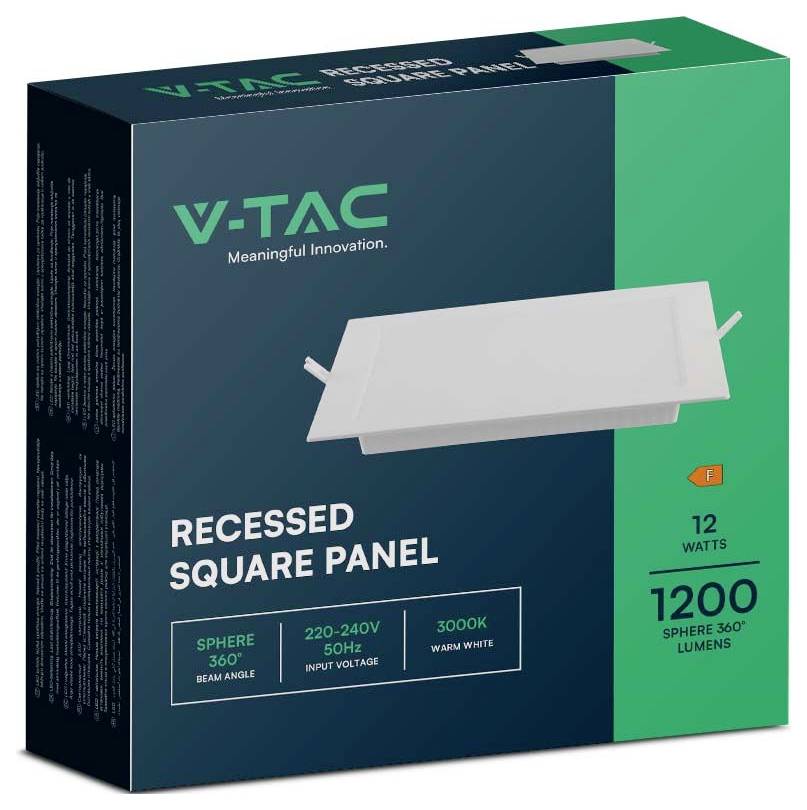

Box packaging for a V-TAC recessed square panel light, 12 watts, 360-degree beam angle, 220-240V, 3000K warm white, 1200 lumens.

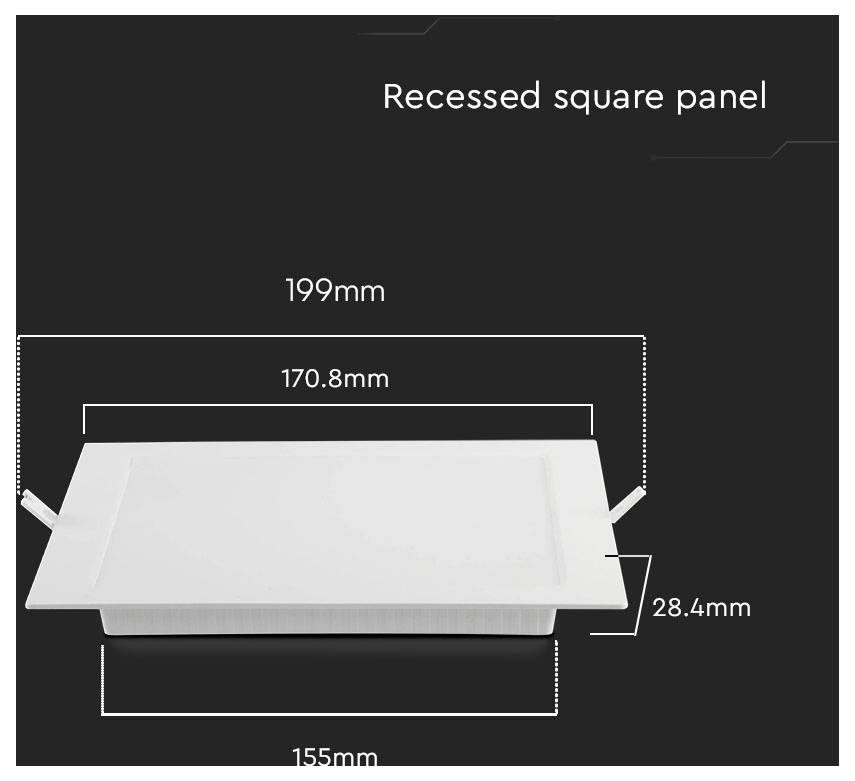

'Recessed square panel' diagram showing dimensions: 199mm width, 170.8mm internal width, 155mm base, and 28.4mm height.

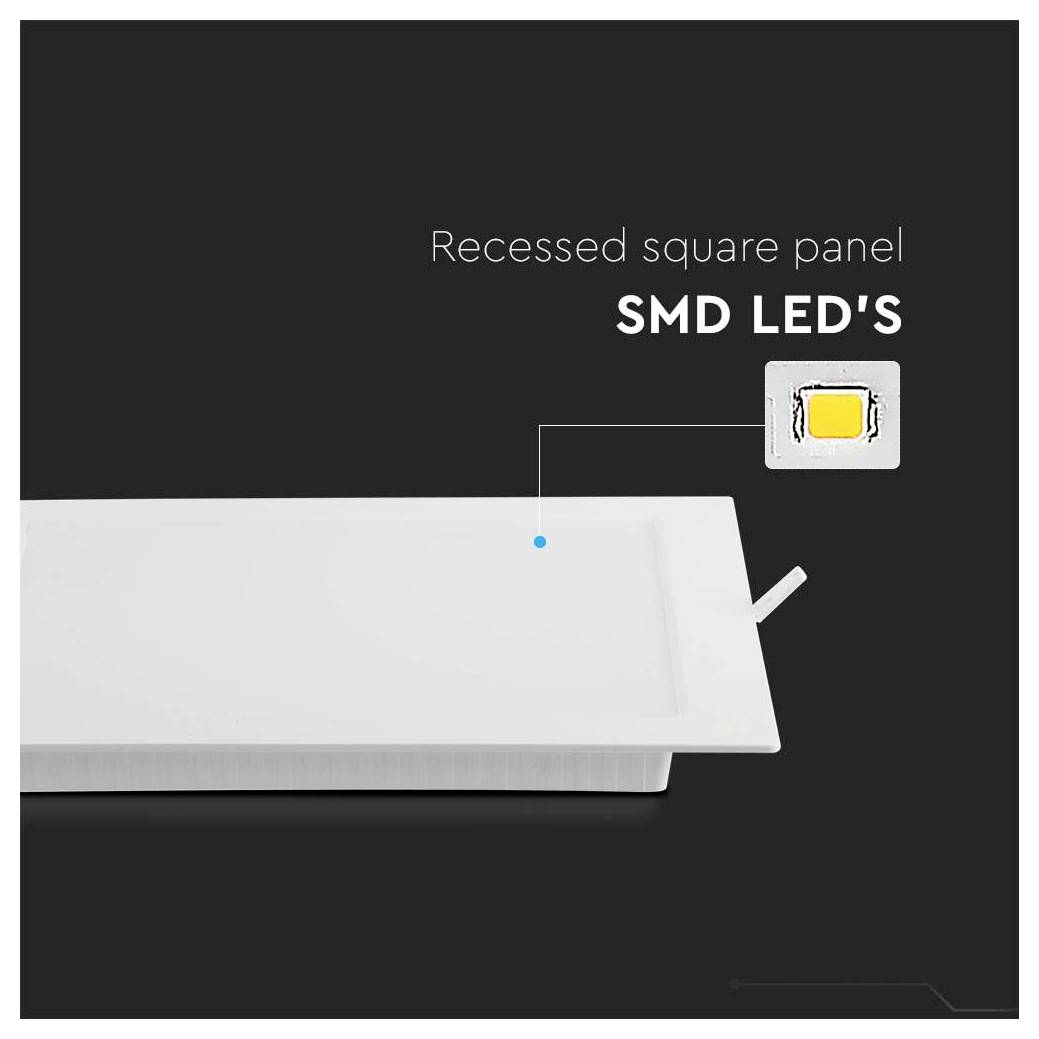

'Recessed square panel SMD LED's' with an image of a white square LED light panel on black background.

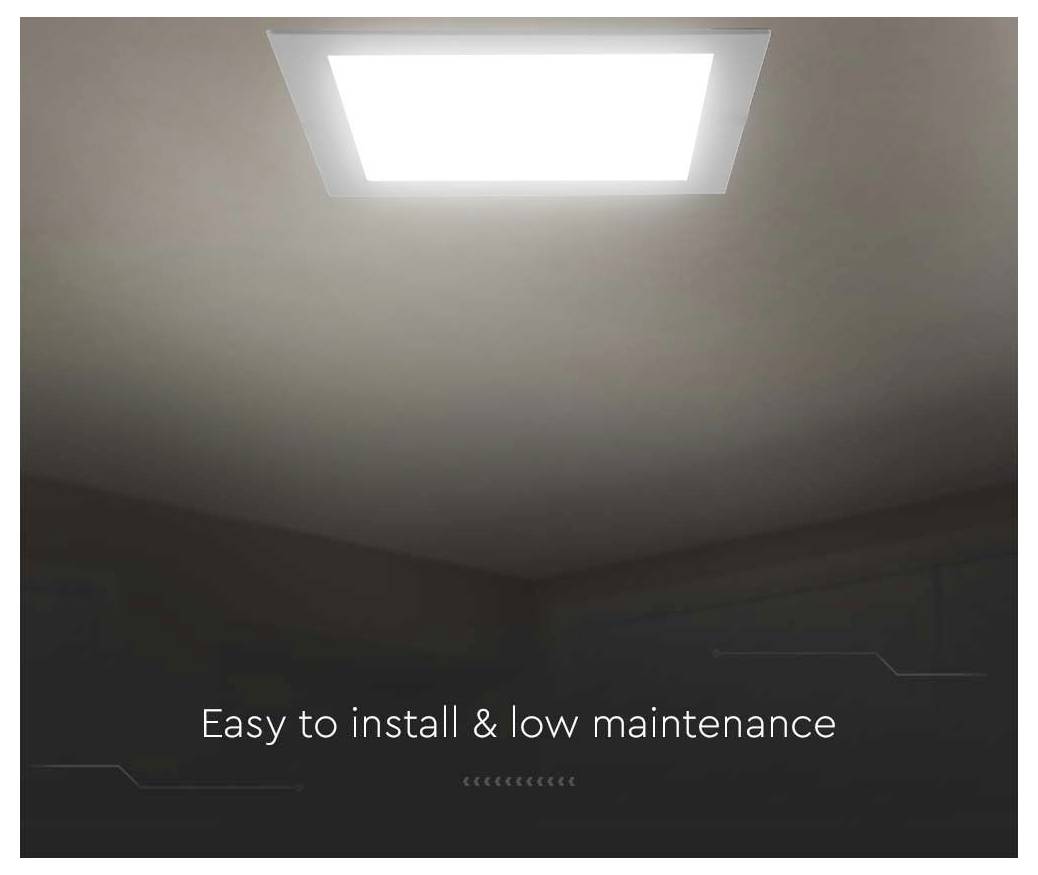

A ceiling with a bright, square light fixture; text below reads 'Easy to install & low maintenance'.

'Elevator with closed doors in a modern building, surrounded by reflective metal panels and lit by ceiling lights, next to a kiosk.'

1/7

Product data sheet

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

54 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.29 / piece)

€ 2.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VT-61012 12W LED backlit countersunk panel square 3000K

Power= 12 W Total luminous flux= 1200 lm Colour temperature= 3000 K Warm white

Technical specifications

Product type: LED panel

Operating voltage: 230 V

No. of bulbs: 1

: LED

Bulb type: LED (monochrome)

Rating per bulb: 12 W

: 12 W

: 1200 lm

Total luminous flux: 1200 lm

: 3000 K

Colour: Warm white

Energy consumption: 12 kWh/1000h

Type: Square

Radiation angle: 360°

Recess length: 155 mm

Recess width: 155 mm

Recess depth: 28.4 mm

: IP20

Protection class: IP20

Factory colour: White

Material: Plastic

Weight: 0.19 kg

: F (A - G)

Dim: (Ø x H) 171 mm x 29 mm

: No

Light bulb included: Yes

Colour temperature (max.): 3000 K

Colour temperature range: 3000 K (max)

Width: 170.8 mm

Height: 29 mm

Length: 170.8 mm

Depth: 28.4 mm

(Ø): 171 mm

Bulb shape: SQ16

Variants(All information include VAT, plus shipping costs)

Power

Product type

Operating voltage

Recess depth

Colour

Factory colour

Total luminous flux

Type

Bulb type

V-TAC 10483 VT-61012 LED panel EEC: F (A - G) LED (monochrome) LED 12 W White

Item no:3588515

Product data sheet

Fast track dispatch on Thu 5 Nov

54 Piece(s)Conrad Electronic

This article

12 W

LED panel

230 V

28.4 mm

Warm white

White

1200 lm

Square

LED (monochrome)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

V-TAC 10478 VT-61003 LED panel EEC: E (A - G) SMD LED LED 3 W White

Item no:3588501

Product data sheet

Fast track dispatch on Thu 5 Nov

77 Piece(s)Conrad Electronic

3 W

LED panel

220 V

28.2 mm

Natural white

White

330 lm

Square

SMD LED

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.95^*

V-TAC 10479 VT-61003 LED panel EEC: E (A - G) SMD LED 3 W White

Item no:3588502

Product data sheet

Fast track dispatch on Thu 5 Nov

82 Piece(s)Conrad Electronic

3 W

LED panel

220 V

28.2 mm

White

330 lm

Square

SMD LED

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.95^*

V-TAC 10480 VT-61006 LED panel EEC: E (A - G) SMD LED Built-in LED 6 W White

Item no:3588513

Product data sheet

Fast track dispatch on Thu 5 Nov

115 Piece(s)Conrad Electronic

6 W

LED panel

220 V

28.4 mm

Warm white

White

660 lm

Square

SMD LED

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.99^*

V-TAC 10481 VT-61006 LED panel EEC: E (A - G) SMD LED 6 W White

Item no:3588508

Product data sheet

Fast track dispatch on Thu 5 Nov

25 Piece(s)Conrad Electronic

6 W

LED panel

220 V

28.4 mm

Natural white

White

660 lm

Square

SMD LED

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.49^*

V-TAC 10482 VT-61006 LED panel EEC: E (A - G) SMD LED 6 W White

Item no:3588509

Product data sheet

Fast track dispatch on Thu 5 Nov

93 Piece(s)Conrad Electronic

6 W

LED panel

28.4 mm

White

660 lm

Square

SMD LED

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.99^*

V-TAC 10484 VT-61012 LED panel EEC: F (A - G) LED (monochrome) 12 W White

Item no:3588516

Product data sheet

Fast track dispatch on Thu 5 Nov

23 Piece(s)Conrad Electronic

12 W

LED panel

28.4 mm

Natural white

White

1200 lm

Square

LED (monochrome)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

V-TAC 10485 VT-61012 LED panel EEC: F (A - G) LED (monochrome) 12 W White

Item no:3588517

Product data sheet

Fast track dispatch on Thu 5 Nov

35 Piece(s)Conrad Electronic

12 W

LED panel

28.4 mm

White

1200 lm

Square

LED (monochrome)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

V-TAC 10486 VT-61018 LED panel EEC: F (A - G) SMD LED 18 W White

Item no:3588527

Product data sheet

Fast track dispatch on Thu 5 Nov

1 Piece(s)Conrad Electronic

18 W

LED panel

220 V

28.8 mm

Warm white

White

1850 lm

Square

SMD LED

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

V-TAC 10488 VT-61018 LED panel EEC: E (A - G) SMD LED 18 W White

Item no:3588528

Product data sheet

Fast track dispatch on Thu 5 Nov

59 Piece(s)Conrad Electronic

18 W

LED panel

220 V

28.8 mm

White

1980 lm

Square

SMD LED

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3588515 V-TAC 10483 VT-61012 LED panel EEC: F (A - G) LED (monochrome) LED 12 W White

Description

Stable and robust mini-panels with background lighting. High-quality power transformers ensure reliable service life. Fitted with highly efficient LED SMD chips. Free of lead and mercury, thus environment-friendly. Suitable for offices, conference rooms, exhibition rooms, lobbies, cabins, Kitchens, etc.
