Vogt Verbindungstechnik 3716P Parallel connector 1.50 mm² 2.50 mm² Insulated Blue 1 pc(s)

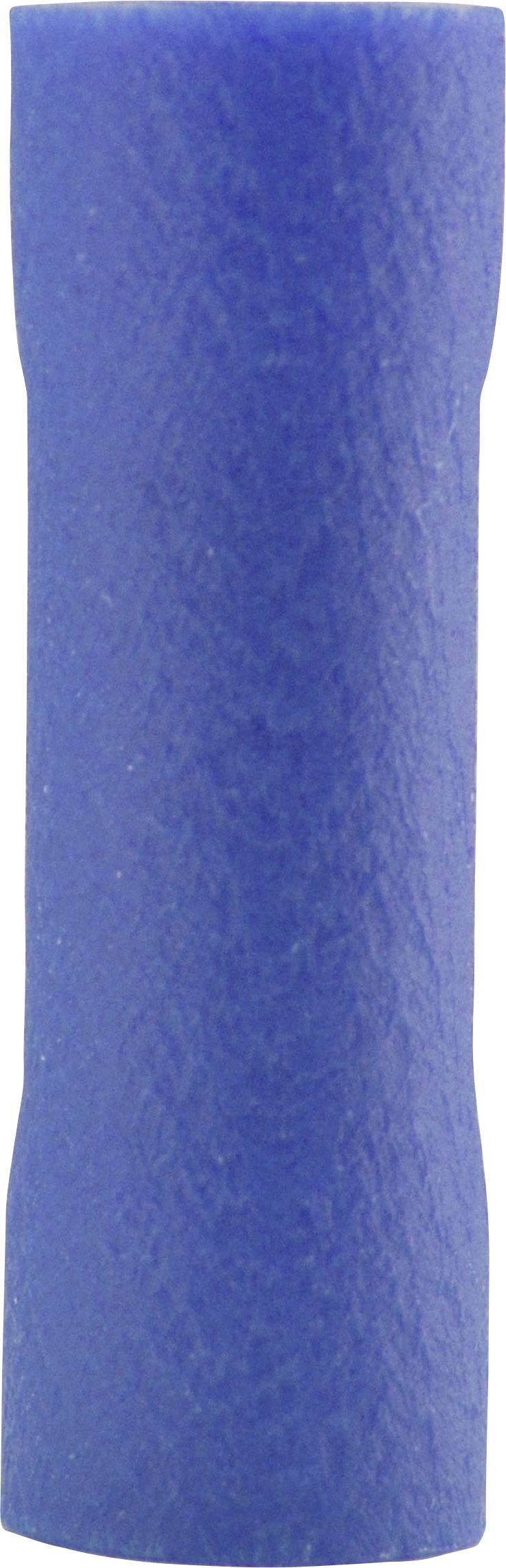

A blue cylindrical component, possibly an electrical cable connector or an insulator.
Technical drawing shows a rectangular object with internal dimensions D1, D2 and external dimensions L, L1; thickness S is also specified.
1/2
Image similar
Product type
Parallel connector
Insulation type
Insulated
Contact material
Cathode copper, tin plated
Length
17 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
513 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 15
Total (€ 0.28 / piece)
€ 0.34
-18 %
€ 0.28
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Vogt Verbindungstechnik 3716P Parallel connector 1.50 mm² 2.50 mm² Insulated Blue 1 pc(s)

Our service for you

Technical specifications

Product type

Parallel connector

Factory colour

Blue

Insulation type

Insulated

Contact material

Cathode copper, tin plated

Length

17 mm

Content

1 pc(s)

Manufacturer part #

3716P

Type

3716P

AWG max.

14

AWG (min.)

16

max. cross section

2.50 mm²

Min. cross section

1.50 mm²

Dim

Ø D1 x Ø D2 x L x L1 x S 2,3 x 4,3 x 17 x 7 x 0,8 mm

Outside Ø

4.3 mm

Inside diameter

2.3 mm

Insulation material

PA

Dimensions

Ø D1 x Ø D2 x L x L1 x S 2,3 x 4,3 x 17 x 7 x 0,8 mm

Cross-section range

1.50 - 2.50 mm²

RoHS-compliant

Yes

Temperature range

-10 - +75 °C

Wall thickness (details)

0.8 mm

Material (details)

E-Cu sn

Cross section

1.5 - 2.0 mm²

Connection

-

Documents & Downloads

Datasheet

Datasheet 730167 Vogt Verbindungstechnik 3716P Parallel connector 1.50 mm² 2.50 mm² Insulated Blue 1 pc(s)

User & Safety Instructions

User & Safety Instructions 730167 Vogt Verbindungstechnik 3716P Parallel connector 1.50 mm² 2.50 mm² Insulated Blue 1 pc(s)
