VOLTCRAFT PMM 6010-60 Digital multimeter and PSU Digital CAT II 600 V Display (counts): 60000

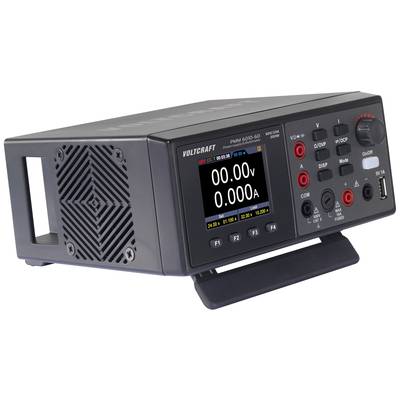

A digital power supply unit displays '00.00V' and '0.000A' on its display. It has several ports and control elements on its front panel.

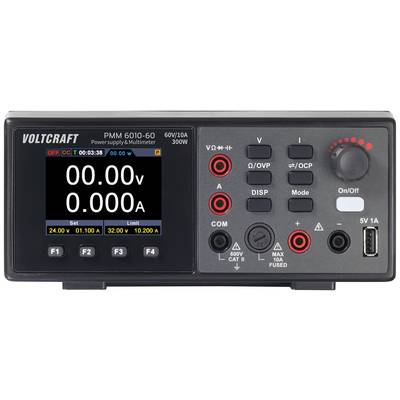

'Voltcraft PMM 6010-60' power supply and multimeter with digital display showing '0.00 V' and '0.00 A'. Several controls and connections on the right.
Back of a black Voltcraft power supply with connections and USB port. Technical data and model labels are visible.

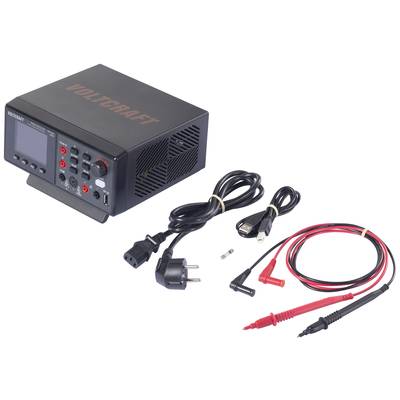

Power supply unit with display, cables, and test leads. Device front shows selection buttons and connections. Accessories include power cable and test probes.

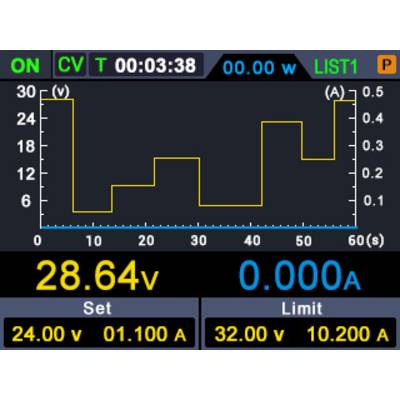

A diagram with two axes: left voltage in volts (V), right current in amperes (A), bottom time in seconds. Yellow line shows voltage progression. Display: '28.64V', '0.000A'.

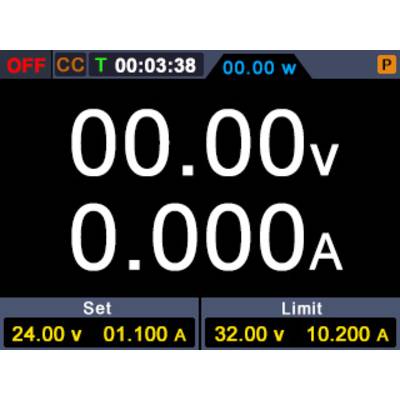

'Voltage: 00.00V, Current: 0.000A. Set: 24.00V, 01.100A. Limit: 32.00V, 10.200A. Time: 00:03:38. Status: OFF, CC, P.'

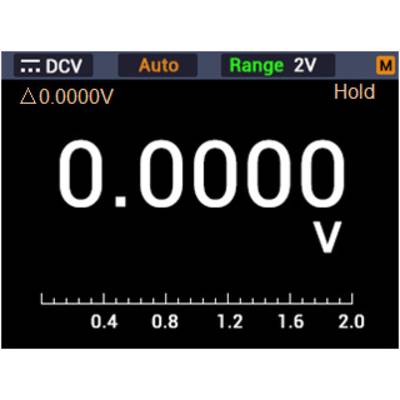

An electronic display shows a voltage measurement of 0.0000 volts. At the top are the settings: DCV, Auto, Range 2V, Hold activated.
'Digital multimeter display shows 0.0000 Volts. Mode DCV, Range 2V. Auto-setting activated. Scale from 0.0 to 2.0.'

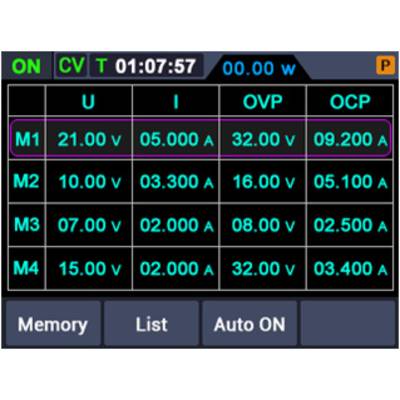

Measuring device display shows four measurement rows with voltage (U), current (I), overvoltage protection (OVP), and overcurrent protection (OCP). Main measurement M1 shows 21 V and 5 A.

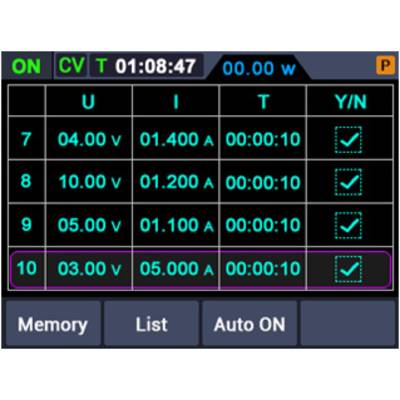

Image of an electronic device: Display shows measured values for voltage (U), current (I) and time (T). Four lines with various measured values, all marked with ticks.
Digital screen display shows a voltage reading of 28.64V, current at 0.000A. Graph with time on the X-axis, voltage and current on the Y-axis.
Display reading 'Set': Voltage 24.00 V, Current 01.100 A, in yellow text against a black background.
'Limit 32.00 V 10.200 A' displayed on a screen with a grey background and yellow text.

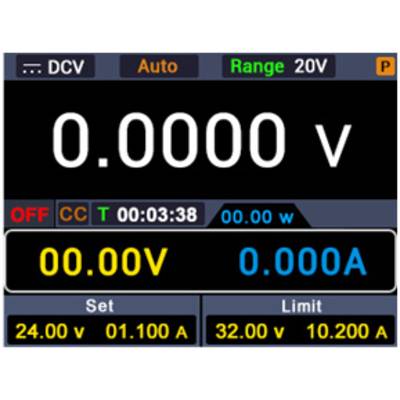

Digital multimeter display shows '0.0000 V', '0.00 V', and '0.000 A'. Settings: Set '24.00 V', '0.11 A'; Limit '32.00 V', '10.20 A'.

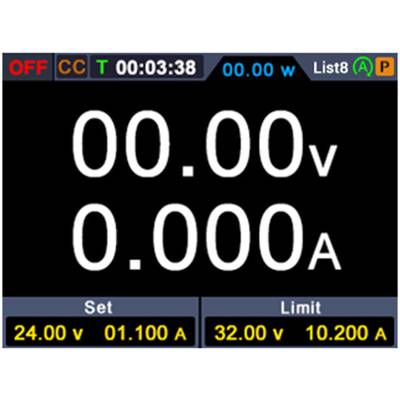

Display of an electronic device showing voltage of 0.00 V and current of 0.000 A. Top: 'OFF CC T 00:03:38 00.00 w List8'. Bottom: 'Set 24.00 v 01.100 A', 'Limit 32.00 v 10.200 A'.

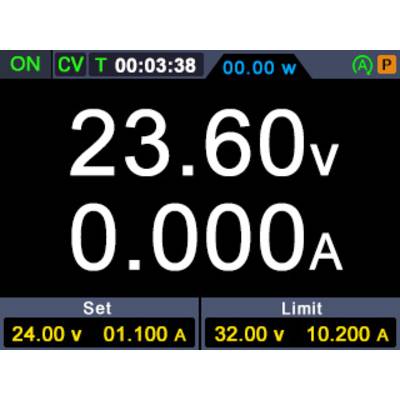

Measurement device display: Voltage 23.60 V and Current 0.000 A. Settings: 24.00 V, 01.100 A. Limit: 32.00 V, 10.200 A.

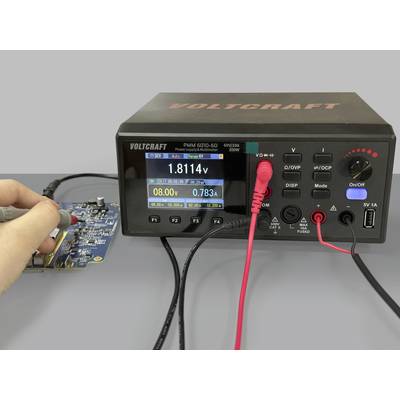

'A person is measuring the voltage on an electronic circuit board using a soldering iron. A measuring device is displaying various readings.'
1/17
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 289.00 / piece)
€ 289.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

VOLTCRAFT PMM 6010-60 DMM and Power supply combined device

  • 2-in-1 function for DMM and power supply
  • DMM with 60000 count
  • CAT II 600 V
  • Number of outputs: 1
  • Output voltage: 0 - 60 V
  • Output current: 0 - 10 A
  • Resolution: 10 mV, 1mA
  • Max. power: 300 W
  • Interface: USB 2.0

Our service for you

Technical specifications

  • Power: 300 W - Input voltage range: 200 - 240 V/AC - Input current at full load: ≤ 2.8 A - Input current at no load: ≤ 150 mA - Output voltage: 0 - 60 V - Output current: 0 - 10 A - Ripple: Voltage (Vp-p) ≤ 50 mV, voltage (rms) ≤ 5 mV, current (Ap-p) ≤ 30 mA.
Voltage reading range DC (min.)

60 mV

Product type

Digital multimeter and PSU

Voltage DC reading range (max.)

1000 V

V AC reading range (min.)

600 mV

V AC reading range (max.)

750 V

Amperage reading range DC (min.)

60 mA

A DC reading range (max.)

10 A

A AC reading range (min.)

60 mA

Amperage reading range AC (max.)

10 A

Reading range - resistance

60 - 600 MΩ

Reading range - capacity

60 mF

Measurement type (details)

True RMS

Frequency range

40 - 1000 Hz

Interfaces

USB

Height

92 mm

Width

200 mm

Length

185 mm

Weight

1.2 kg

Manufacturer's standards (no certificate)

Reading category

CAT II 600 V

Voltage metering

AC/DC

Current reading

AC/DC

Type

PMM 6010-60

Display

Digital

Display (counts)

60000

Dim

(L x W x H) 185 x 200 x 92 mm

Features

Graphics display

Capacitance testing

Continuity tester

incl. testing cable

Interfaces

USB

Plastic free packaging

Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3089081 VOLTCRAFT PMM 6010-60 Digital multimeter and PSU Digital CAT II 600 V Display (counts): 60000

Warranty Terms

Warranty Terms 3089081 VOLTCRAFT PMM 6010-60 Digital multimeter and PSU Digital CAT II 600 V Display (counts): 60000

Download

Download 3089081 VOLTCRAFT PMM 6010-60 Digital multimeter and PSU Digital CAT II 600 V Display (counts): 60000

Description


Two-in-one: Multimeter and power supply in one
The "VOLTCRAFT PMM 6010-60 DMM and power supply combo" measures not only different electrical units, it also supplies external consumers with the right voltage.
Adjustable power supply
Up to 60 V output voltage and 10 A output current at a maximum power of 300 W may be present at the "VOLTCRAFT PMM 6010-60 DMM and power supply combo" output.
Exact measurement results
With True RMS AC voltage and current measurements, the VOLTCRAFT multimeter shows the actual value of an alternating current, regardless of whether the waveform of the current is completely sinusoidal. In addition, measurements of direct current, resistance, diode, continuity and capacity can be made. The resolution is 10 mV / 1 mA and the results are clearly displayed on the 7.11 cm (2.8 inch) TFT LCD with 60,000 counts. USB communication, compatible with SCPI.
Always on the safe side
The "VOLTCRAFT PMM 6010-60 DMM and power supply unit combi-device" corresponds to the specification CAT II 600 V and is equipped with over-voltage, over-current and short-circuit protection. An intelligent fan with temperature-dependent speed control prevents overheating of the device.
Ready to use immediately
The extensive delivery package includes in addition to the "VOLTCRAFT PMM 6010-60 DMM and power supply combi-device" USB and mains cable as well as a pair of test leads, a 250 V fuse, a software CD, the operating instructions as well as a safety data sheet.

This text is machine translated.

Features

  • 7.11 cm (2.8") TFT LCD screen, 480 x 320 pixels
  • Interface: USB 2.0
  • True RMS AC voltage and current
  • Functions: DC voltage, True RMS AC voltage and current, Resistance, Diode, Continuity Capacitance
  • USB communication, compatible with SCPI communication protocol
  • Over voltage protection
  • Over current protection
  • Over temperature protection
  • Short circuit protection
  • Fan cooling, temperature intelligent speed control

Scope of delivery

  • DMM/Power supply
  • Power cord
  • USB cable
  • 1x test leads pair
  • Fuse (250V)
  • Software CD
  • Safety sheet
  • User manual
