Name: VOLTCRAFT UC-2C1A65W01 USB charger 65 W 1x USB-A, 2x USB-C® Fast Charge, Power Delivery 3.0 White Indoors GaN
Brand: VOLTCRAFT
SKU: 2559644
Availability: SoldOut

Highlights & Details

Voltcraft USB charger 65W UC-2C1A65W01

Fast charger with PD3.0 support
Max 65W
2 x USB-C® 1 x USB-A®
Supports fast charging for all iPhone 8 and above
iPad mini (from 4th generation), iPad (from 8th generation),
iPad Air (3rd generation and later), iPad Pro (2nd generation and later), iPad Pro (4th generation and later)

Our service for you

Technical specifications

Product type: USB charger

: 65 W

Inputs: Europlug

Input voltage: 100-240 V

No. of outputs: 3 x

Outputs: 1x USB-A
2x USB-C®

Output voltage: 5 V
9 V
12 V
15 V
20 V

Output current (max.) - rounded: 3.25 A

Max. output current: 3.25 A

Type: UC-2C1A65W01

Suitable for: Smartphone
Tablet

Suitable for: Universal

PSU features: GaN

Dim: (L x W x H) 66 x 41 x 29 mm

Height: 29 mm

Length: 66 mm

Width: 41 mm

Weight: 109

Cable length: 2 m

Factory colour: White

Used at: Indoors

Charging method: Fast Charge
Power Delivery 3.0

Output: USB-C® plug
USB-A

Type: Plug-in

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2559644 VOLTCRAFT UC-2C1A65W01 USB charger 65 W 1x USB-A, 2x USB-C® Fast Charge, Power Delivery 3.0 White Indoors GaN

User & Safety Instructions

User & Safety Instructions 2559644 VOLTCRAFT UC-2C1A65W01 USB charger 65 W 1x USB-A, 2x USB-C® Fast Charge, Power Delivery 3.0 White Indoors GaN

Warranty Terms

Warranty Terms 2559644 VOLTCRAFT UC-2C1A65W01 USB charger 65 W 1x USB-A, 2x USB-C® Fast Charge, Power Delivery 3.0 White Indoors GaN

Description

Fast chargers for phones, tablets, switches, powerbanks and laptops. Charge your device quickly, safely and reliably.

GaN technology (low heat generation)
Galliumnitride short GaN is a material that is used for semiconductors in modern chargers of the latest generation. It has been used for many years with LED technology as well as with solar cells. The outstanding feature of the GaN material in the field of charging technology is particularly the low development of heat. Less heat means more efficient performance and adherence to the highest safety standards. The innovative material enables a small, space-saving design as compared to the conventional standard chargers.

This text is machine translated.

Features

Compatible devices: iOS, Android and USB devices
Lightweight and portable design
Fast, safe and reliable charging of devices
Input: 100-240V~50/60Hz

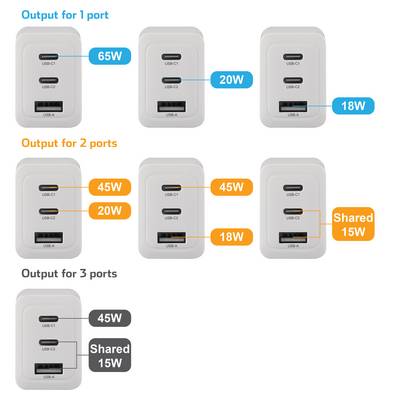

Output current:
USB-C1: 5V- 3A / 9V- 3A/ 12V- 3A/ 15V- 3A/ 20V- 3.25A，65W MAX
USB-C2:5V= 3A / 9V= 2.22A / 12V= 1.67A,20W MAX
USB-A:5V- 3A / 9V- 2A,18W MAX
C1+C2: 45W+20W
C1+A: 45W+18W
C2+A: 5V- 3A
C1+C2+A: 45W+15W
Average active efficiency : 86 %
Efficiency at low load (10 %) : 70.14%
No-load power consumption : ≤0.30W

Scope of delivery

USB charger
2m USB-C® / USB-C® cable (3A)
operating manual

Description

Fast chargers for phones, tablets, switches, powerbanks and laptops. Charge your device quickly, safely and reliably.

GaN technology (low heat generation)
Galliumnitride short GaN is a material that is used for semiconductors in modern chargers of the latest generation. It has been used for many years with LED technology as well as with solar cells. The outstanding feature of the GaN material in the field of charging technology is particularly the low development of heat. Less heat means more efficient performance and adherence to the highest safety standards. The innovative material enables a small, space-saving design as compared to the conventional standard chargers.

This text is machine translated.
