WAGO 2000-5317/102-000 Actuator terminal 7 mm Pull spring Configuration: + PE enclosure contact Grey 50 pc(s)

A grey, multi-stage electrical terminal block with multiple connections and metallic conductors for industrial applications.

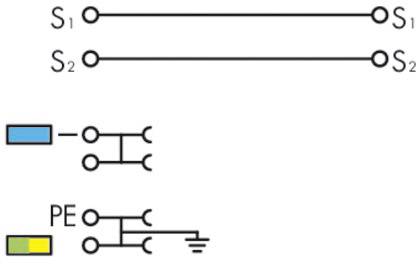

'Diagram shows parallel conductors S1, S2 and connection plan with blue and yellow markings for the earth and protective conductor.'
1/2
Image similar
Product type
Actuator terminal
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
13.5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 19 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 11.50 / piece)
€ 575.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

3-Leiter-Aktrorenklemme 2000-5317/102-000

  • Industrial packaging, pack of 50
  • TOPJOB®S
  • This text is machine translated.

Technical specifications

  • For PNP (minus) switching actuators
Product type

Actuator terminal

Features

+ PG connector

Connection

Pull spring

Configuration

+ PE enclosure contact

Cross section (flexible) (min.)

0.14 mm²

Cross section (flexible) (max.)

1.50 mm²

Cross section (inflexible) (min.)

0.14 mm²

Cross section (inflexible) (max.)

1.50 mm²

AWG (min.)

24

AWG max.

16

Clamp width

7 mm

No. of rows

3

Pins per row

2

Number of pins

8

Factory colour

Grey

Nominal current

13.5 A

Nominal current - rounded value

13.5 A

Nominal voltage

250 V AC

Min. stripping length

9 mm

Stripping length (max.)

11 mm

Manufacturer part #

2000-5317/102-000

Content

50 pc(s)

Industrial packaging

Yes

Type

2000-5317/102-000

Width

7 mm

Connector colour

Grey

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 1489610 WAGO 2000-5317/102-000 Actuator terminal 7 mm Pull spring Configuration: + PE enclosure contact Grey 50 pc(s)

User & Safety Instructions

User & Safety Instructions 1489610 WAGO 2000-5317/102-000 Actuator terminal 7 mm Pull spring Configuration: + PE enclosure contact Grey 50 pc(s)
