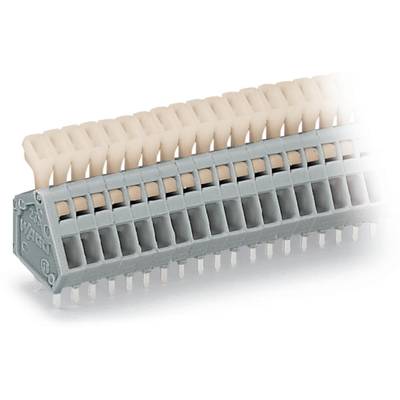

WAGO 233-207 Spring-loaded terminal 0.50 mm² Number of pins 7 Grey 240 pc(s)
EAN:
Part number:
Item no:
Product type
Spring-loaded terminal
CS
2.50 mm
Pins per row
7
Number of pins
7
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
Sales and shipping:
Number (Package size 240 pc(s))
Total (€ 2.94 / piece)
€
Technical specifications
- PCB TERM.STR. 7 POL. 2,5 MM GREY
- Type
233-207
- Product type
Spring-loaded terminal
- Features
+ CAGE CLAMP®
- CS
2.50 mm
- No. of rows
1
- Pins per row
7
- Number of pins
7
- Series
233
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Connection
Spring-loaded terminal
Print
- Cross section (flexible) (min.)
0.08 mm²
- Nominal current - rounded value
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
0.50 mm²
- Cross section (inflexible) (max.)
0.50 mm²
- AWG (min.)
28
- Connector orientation
At an angle (to the PCB)
- AWG max.
20
- Contact material
Cathode copper, tin plated
- Factory colour
Grey
- Wire protection
Yes
- Manufacturer part #
233-207
- Industrial packaging
Yes
- Content
240 pc(s)
- Nominal voltage
160 V

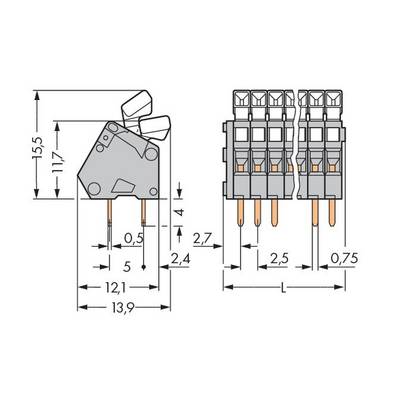

- Width
19.80 mm
- Height
19.50 mm
- Length
13.90 mm
