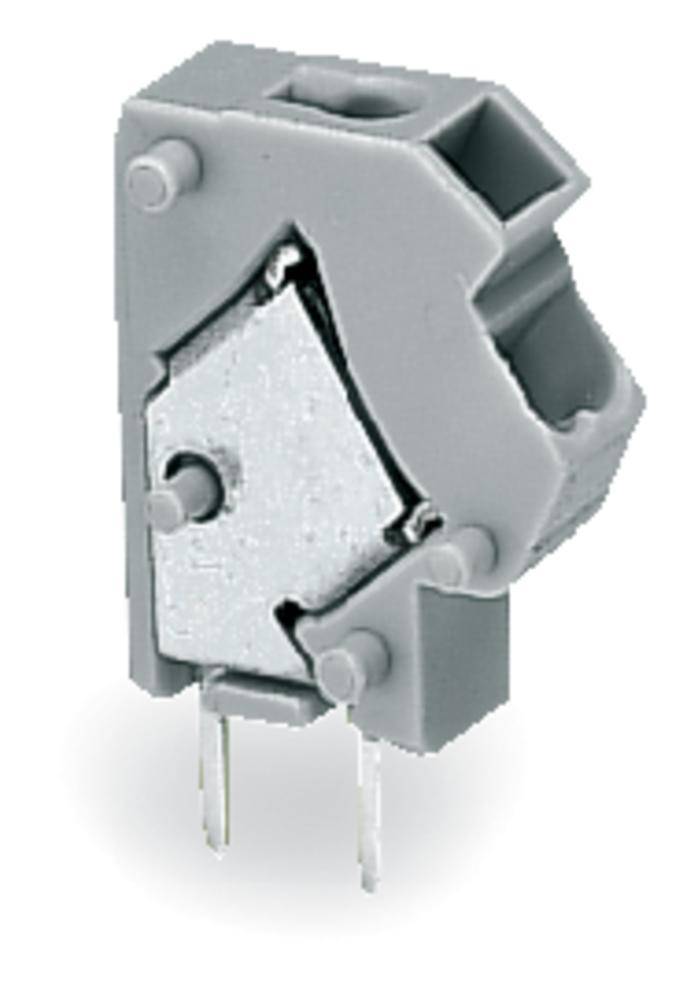

WAGO 254-801 Spring-loaded terminal Number of pins 1 Grey 500 pc(s)
Product type
Spring-loaded terminal
CS
5 mm
5.08 mm
Pins per row
1
Number of pins
1
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 500 pc(s))
Total (€ 0.40 / piece)
€ 199.99
incl. VAT
14-day return policy included
Highlights & Details
2-conductor PCB terminal block
- Content 500 pc(s)
Technical specifications
- 2 COND. MODULAR TERMINAL 2 SOLDER P
- Type
254-801
- Product type
Spring-loaded terminal
- Features
+ PUSH WIRE®
- CS
5 mm
5.08 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Series
254
- Min. stripping length
6 mm
- Stripping length (max.)
12 mm
- Connection
Spring-loaded terminal
Print
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
0.75 mm²
- AWG (min.)
22
- Connector orientation
At an angle (to the PCB)
- AWG max.
18
- Contact material
Cathode copper, tin plated
- Factory colour
Grey
- Wire protection
Yes
- Manufacturer part #
254-801
- Industrial packaging
Yes
- Content
500 pc(s)
- Nominal voltage
250 V
- Width
20.50 mm
- Height
13.50 mm
- Length
6.70 mm
Documents & Downloads
Datasheet
Datasheet 747404 WAGO 254-801 Spring-loaded terminal Number of pins 1 Grey 500 pc(s)
User & Safety Instructions
User & Safety Instructions 747404 WAGO 254-801 Spring-loaded terminal Number of pins 1 Grey 500 pc(s)
