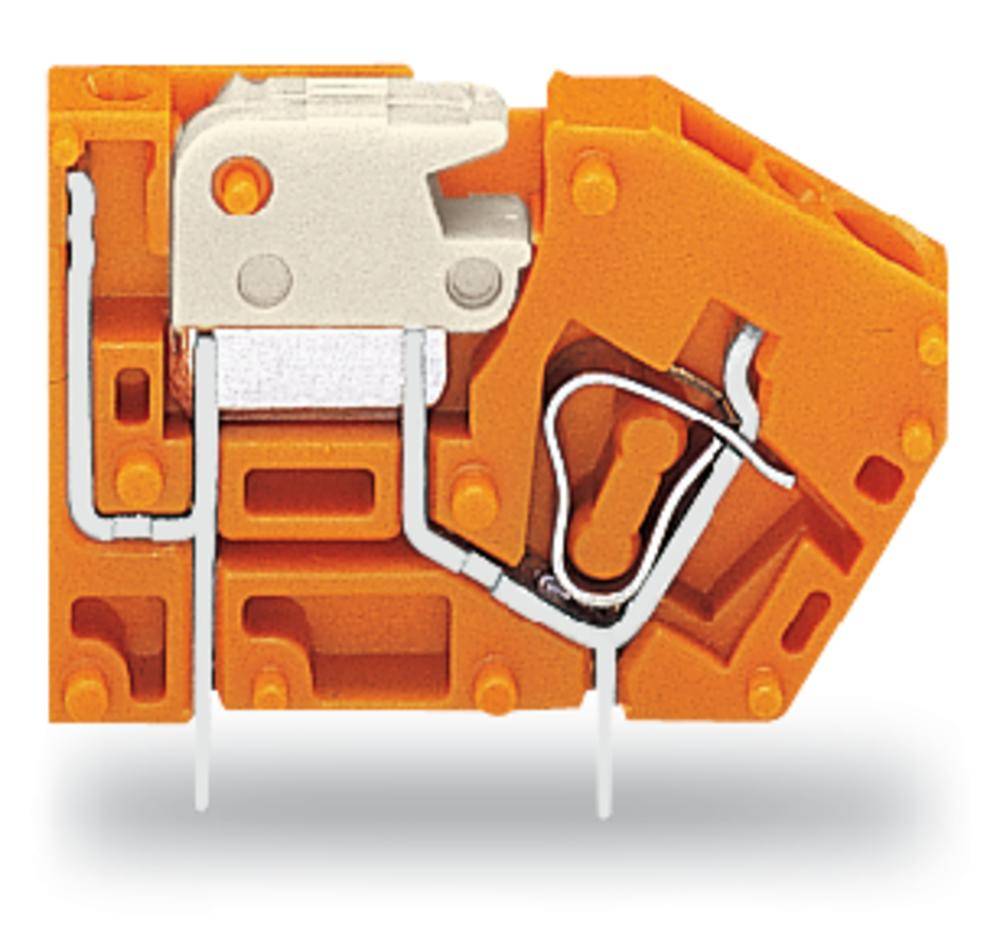

WAGO 742-106 Spring-loaded terminal 2.50 mm² Number of pins 1 Orange 384 pc(s)
Product type
Spring-loaded terminal
CS
5.08 mm
Pins per row
1
Number of pins
1
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 384 pc(s))
Total (€ 2.88 / piece)
€ 1,105.00
incl. VAT
14-day return policy included
Technical specifications
- PCB MOUNT DISCONNECT TERM 0.2" PITCH
- Type
742-106
- Product type
Spring-loaded terminal
- Features
+ CAGE CLAMP®
- CS
5.08 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Series
742
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Connection
Spring-loaded terminal
Print
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- Connector orientation
At an angle (to the PCB)
- AWG max.
12
- Contact material
Cathode copper, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Manufacturer part #
742-106
- Industrial packaging
Yes
- Content
384 pc(s)
- Nominal voltage
320 V
- Width
34.70 mm
- Height
27.20 mm
- Length
5.08 mm
Documents & Downloads
Datasheet
Datasheet 545295 WAGO 742-106 Spring-loaded terminal 2.50 mm² Number of pins 1 Orange 384 pc(s)
User & Safety Instructions
User & Safety Instructions 545295 WAGO 742-106 Spring-loaded terminal 2.50 mm² Number of pins 1 Orange 384 pc(s)
