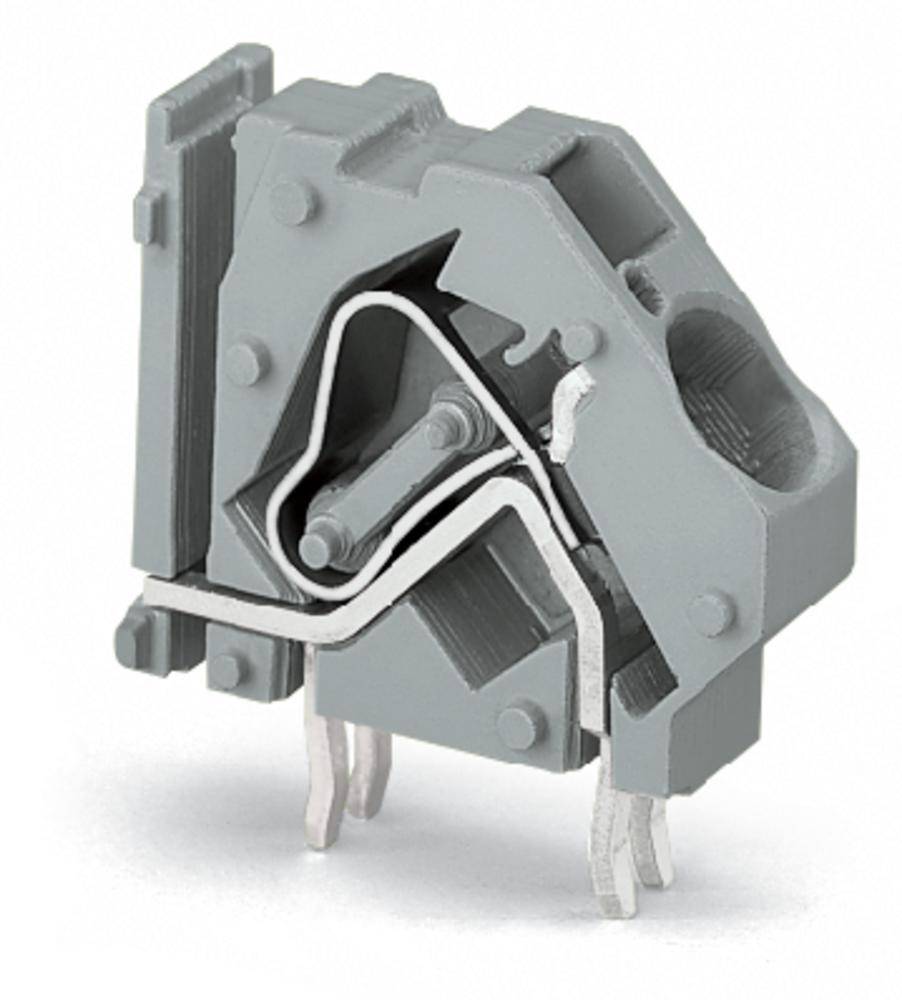

WAGO 745-853/006-000 Spring-loaded terminal 16.00 mm² Number of pins 1 Light grey 100 pc(s)
Product type
Spring-loaded terminal
CS
10 mm
Pins per row
1
Number of pins
1
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 100 pc(s))
Total (€ 1.75 / piece)
€ 174.99
incl. VAT
14-day return policy included
Technical specifications
- EINZELKLEMME RM 10 MM LICHTGRAU
- Type
745-853/006-000
- Product type
Spring-loaded terminal
- Features
+ CAGE CLAMP®
- CS
10 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Series
745
- Min. stripping length
6 mm
- Stripping length (max.)
13 mm
- Connection
Spring-loaded terminal
Print
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
16.00 mm²
- Cross section (inflexible) (max.)
16.00 mm²
- AWG (min.)
24
- Connector orientation
At an angle (to the PCB)
- AWG max.
6
- Contact material
Cathode copper, tin plated
- Factory colour
Light grey
- Wire protection
Yes
- Manufacturer part #
745-853/006-000
- Industrial packaging
Yes
- Content
100 pc(s)
- Nominal voltage
320 V
- Width
33.50 mm
- Height
33.40 mm
- Length
10.00 mm
- UKCA
not relevant
