1/3
WAGO 769-251 Grey 50 pc(s)
Packaging type
Package
Factory colour
Grey
AWG max.
12
AWG (min.)
28
Stripping length (max.)
9 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 1.56 / piece)
€ 77.99
incl. VAT
14-day return policy included
Highlights & Details
2-conductor/1-pin carrier terminal block
- 769-251
- Industrial packaging, pack of 50
Technical specifications
- 2-CONDUCTOR TERMINAL BLOCKS
- Packaging type
Package
- Factory colour
Grey
- AWG max.
12
- AWG (min.)
28
- Stripping length (max.)
9 mm

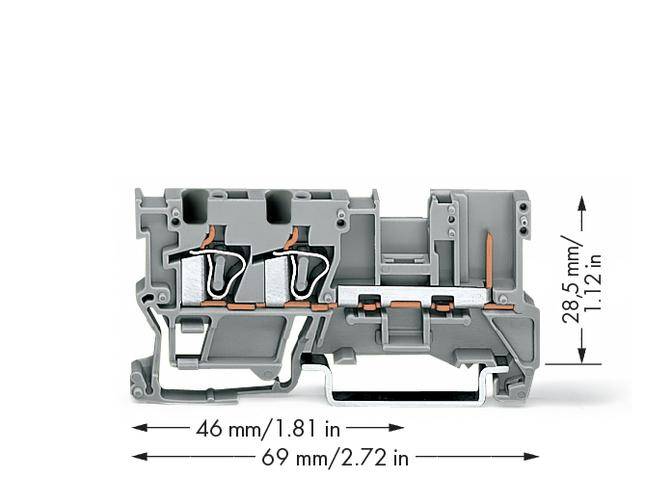

- Dim
(L x W x H) 69 x 5 x 28.5 mm
- Connection
Spring-loaded terminal
- Connector colour
Grey
- Weight
7.799 g
- Manufacturer part #
769-251
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
500 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Series
769
- Width
5 mm
- Height
28.5 mm
- Length
69 mm
- Series
769
- Type
769-251
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 546715 WAGO 769-251 Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 546715 WAGO 769-251 Grey 50 pc(s)
Description
According to EN 60715, gray.
This text is machine translated.
This text is machine translated.
