WAGO Socket housing PCB 232 Total number of pins 4 Contact spacing: 5 mm 232-234/047-000 50 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing PCB
Connector type
Socket, horizontal mount
No. of rows
1
Series
232
CS
5 mm
Datasheet (PDF)
Sales and shipping:
Number (Package size 50 pc(s))
Total (€ 2.52 / piece)
€
Highlights & Details
Female connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 4
Technical specifications
- FEM.CONN.R/A PINS & SPACERS GREY 4-P
- Product type
Socket housing PCB
- Connector type
Socket, horizontal mount
- No. of rows
1
- Connector system
wire-to-board
- Series
232
- Features
+ sleeve
- CS
5 mm
- Pins per row
4
- Total number of pins
4

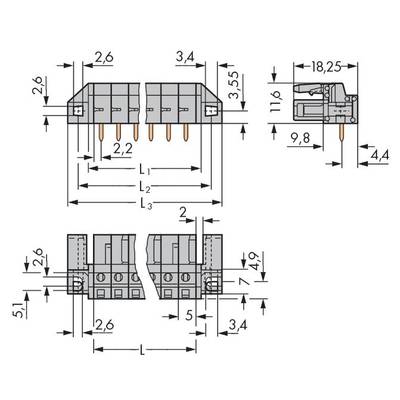

- Width
34.80 mm
- Content
50 pc(s)
- Dim
(L x W x H) 16.60 x 34.80 x 18.25 mm
- Connection
Print
- Manufacturer part #
232-234/047-000
- Factory colour
Grey
- Industrial packaging
Yes
- Contact material
Cathode copper, tin plated
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
320 V
- Height
18.25 mm
- Length
16.60 mm
- Depth
18.25 mm
- Connector orientation
Parallel (to the PCB)
- Type
232-234/047-000
Documents & Downloads
Datasheet
Datasheet 728611 WAGO Socket housing PCB 232 Total number of pins 4 Contact spacing: 5 mm 232-234/047-000 50 pc(s)
User & Safety Instructions
User & Safety Instructions 728611 WAGO Socket housing PCB 232 Total number of pins 4 Contact spacing: 5 mm 232-234/047-000 50 pc(s)
Description
With angled solder pins, 4-pin with spacer flanges, grid dimension 5 mm, solder pin 0.6x1 mm, coding, with 2 latching jacks, for flush mounting in the casing, gray.
