Wittenberg Antennen WB 19 Directional antenna GSM, UMTS, LTE
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€ 100.84
-13 %
€ 88.23
plus VAT.
Only 6 Piece(s) available
Highlights & Details

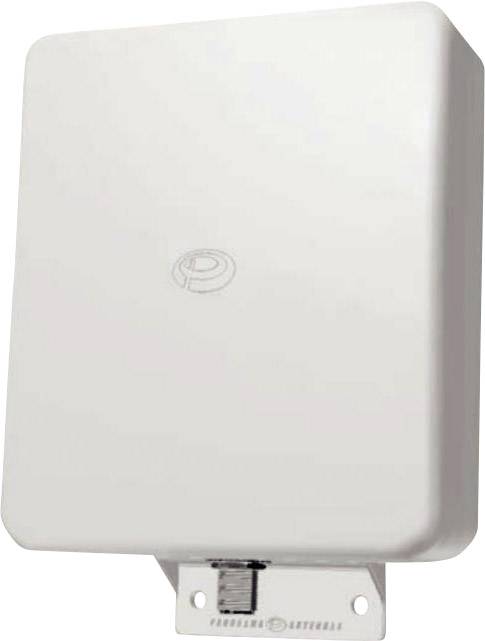

Wittenberg Antennas WB 19 directional antenna
Technical specifications
- Caution: The antenna may also be used to improve the LTE signal; but should, in particular, data applications via LTE in focus, we recommend an antenna with MIMO technology.
- Product type
Mobile phone antenna
- Mobile phone standard
GSM
UMTS
LTE
- Connection
N connector (M)
- Factory colour
White
- Gain
9 dB
- Length
93 mm
- Antenna type
Directional antenna
- GSM frequency
900 MHz
1800 MHz
- LTE frequency
800 MHz
1800 MHz
2600 MHz
- Suitable for mains
GSM
UMTS
LTE
- Width
93 mm
- Height
25 mm
- UMTS frequency
900 MHz
2100 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1550369 Wittenberg Antennen WB 19 Directional antenna GSM, UMTS, LTE
Description
Features
- Frequency range: 698-960, 1710 2700 MHz
- VSWR: 2:1
- Gain: 9dBi
- Antenna connection: N plug (M).
Scope of delivery
- Wall/tower attachment
Hints
Wall/tower attachment
